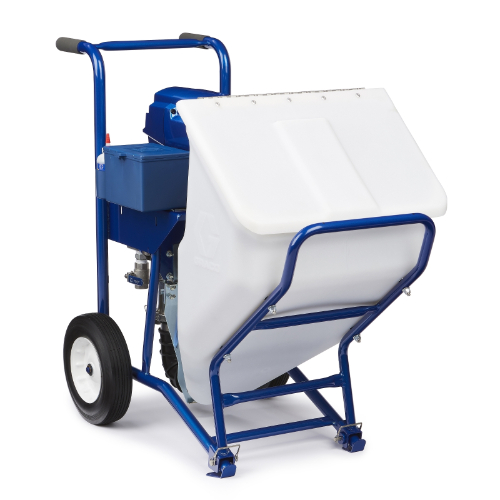

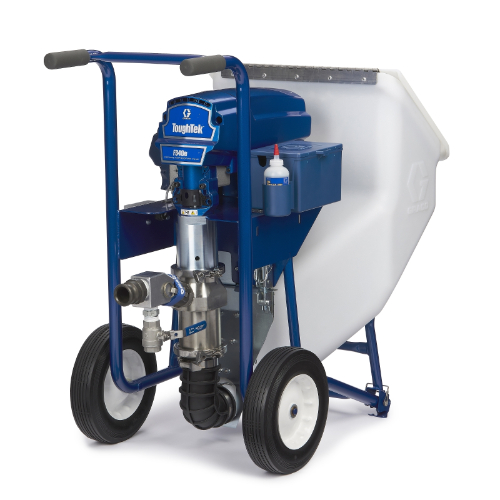

Graco Industrial 25B503 | ToughTek F340e Cementitious Fireproofing Sprayer Package, 120V

When you're doing small jobs or patchwork, look no further than the F340e. With it's compact size and unmatched performance, it outperforms other patch pumps so you can finish up to 2X faster - while using longer hose lengths and smaller diameter hose.

Graco Industrial - 25B503 - Features

• When you're doing small jobs or patchwork, look no further than the F340e. With it's compact size and unmatched performance, it outperforms other patch pumps so you can finish up to 2X faster - while using longer hose lengths and smaller diameter hose.
• Graco's double-displacement piston pump technology offers unmatched performance. Oversized clearances ensure minimal pressure drop and trouble-free performance.
• Durable Quick-Access Piston-Pump
• Heavy-duty steel construction for long life and everyday performance
• Oversized inlet and internal passages for trouble-free pumping
• Quick-access design for fast and easy maintenance
• MaxPower DC Brushless Motor
• High-torque = more work done
• No maintenance design
• Totally-enclosed design keeps dust and debris out
• Adjustable Material Flow Control
• Dial in the exact flow needed for your job
• High or low flow — you decide
• Durable Frame and Hopper
• Durable 20 gallon polyethylene hopper with lid holds a full bag of mixed material
• Easily mix and pour with standard barrel mixers
• All steel frame construction for years of service
• Flatproof tires resist jobsite debris
• No-Tools Hopper Removal
• Disconnects in seconds for easy cleaning
• Convenient 120V Power
• Works on a standard 120V wall outlet
• No electrician or rewiring needed
• Compact and Portable
• Weighs only 210 lb
• Easy to transport
• Minimize your hose lengths/hassles by bringing the sprayer closer to your work

Graco Industrial - 25B503 - Technical Specifications

Application	Fireproofing
Compatible Material	Cementitious Material
Maximum Flow Rate (GPM)	12
Maximum Operating Temperature (°F)	120
Maximum Working Pressure (MPa)	4.1
Maximum Working Pressure (psi)	600
Model	ToughTek
Motor Type	Brushless
Portable	Portable
Series	F340e
Type	Electric Piston Pump

Graco Industrial - 25B503 - Documents and Downloads

Graco Industrial 25B503 Product Brochure	Click to View
3A6393H, Manual, ToughTek F340e Portable Fireproofing Pump, Operation, Repair, and Parts, English	Click to View
3J0253EN-A ToughTek F340e Flyer	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
