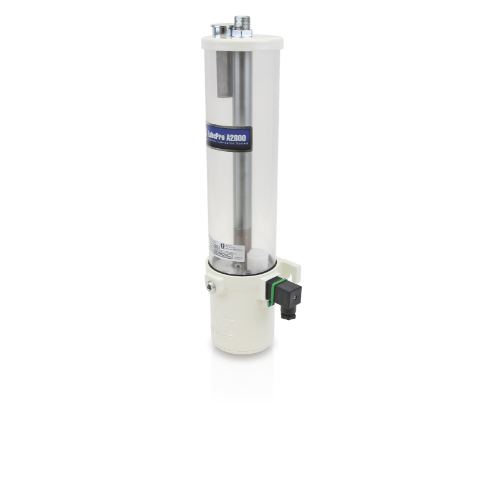

Graco Industrial 24Z028 | LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over ...

Graco Industrial - 24Z028 - Features

• Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.
• Single Stroke Oil Pump for Automatic Lubrication
• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
• Pneumatic power makes it easy to install into existing air line
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point

Graco Industrial - 24Z028 - Technical Specifications

Air Inlet Size (in)	1/4"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	In-Plant Machinery
Compatible Material	Oil
Compatible Metering Device	Series Progressive, Single Line Parallel
Fluid Outlet Size (in)	0.25
Fluid Outlet Thread Type	NPT
Includes	Low Level
Maximum Air Inlet Pressure (psi)	175
Maximum Working Pressure (MPa)	24.1
Maximum Working Pressure (psi)	3500
Minimum cST Grade (cST)	40
Model	LubePro
Overall Depth (in)	5.1
Overall Height (in)	19.83
Overall Width (in)	6.8
Power Type	Pneumatic
Reservoir Size (gal)	0.528
Series	A2800
Type	Pneumatic Piston Pump
Weight (lb)	10.58
Wetted Material	Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK

Graco Industrial - 24Z028 - Documents and Downloads

Graco Industrial 24Z028 Product Brochure	Click to View
3A4033H, 28:1 LubePro Vertical Oil Pump, Instructions, Manual, English	Click to View
340821EN-AF Graco Automatic Lubrication Equipment (ALE) North American Buyer's Guide	Click to View
