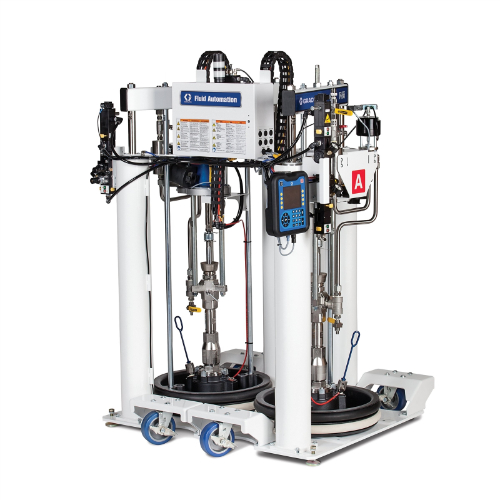

Graco Industrial 24X169 | 1:1 Ratio 55 gal (200 liter) F4-55 Fluid Automation System

In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.

Graco Industrial - 24X169 - Features

• In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.
• Ideal for manufacturing in the following industries: medical, infant care, consumer products, automotive, industrial parts, wearables.
• Precise ratio control, minimal material waste
• The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.
• The result: More precise mixing, a better end product and less wasted material.
• Easier operation with Graco Control Architecture
• The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools
• Better Color Control
• Mix two additive streams at ratios ranging from 0.5 to 6%
• Easy Set-up and Operation
• Proprietary Graco Control Architecture (GCA) is user friendly, providing easier operation and troubleshooting
• Maintains Material Integrity
• Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material
• Cleanroom Convenience
• A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance

Graco Industrial - 24X169 - Technical Specifications

Air Inlet Size (in)	1/2"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Amperage (A)	4
Applicator Type	Automatic
Frequency (Hz)	50/60
Maximum Flow Rate (lb/min)	5
Maximum Working Pressure (MPa)	21
Maximum Working Pressure (psi)	3000
Minimum Flow Rate (GPM)	10
Model	LSR
Type	Dispensing System
Wetted Material	Cast Aluminum, Neoprene, Chrome, Stainless Steel, Tungsten Carbide, PTFE Coated Nitrile, PTFE, UHMWPE, Buna-N, Fluoroelastomer, Acetal

Graco Industrial - 24X169 - Documents and Downloads

Graco Industrial 24X169 Product Brochure	Click to View
335029H, Manual, Fluid Automation F4 Series, Parts, English	Click to View
349777EN, Graco Fluid Automation - LSR Solutions	Click to View
