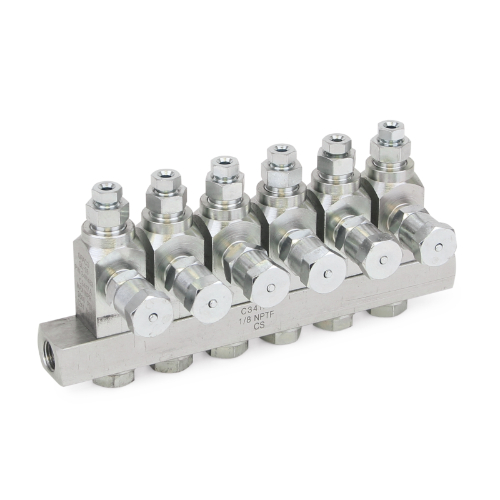

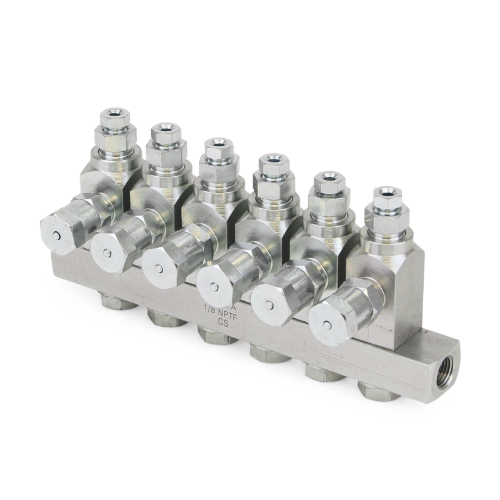

Graco Industrial 24W905 | GL-42 Oil Injector, Carbon Steel, 6 Injector Manifold, 1/8 in. BSPP x 6 mm

Choose durable, long-lasting Graco injectors to perform your lubrication automatically and minimize downtime and maintenance costs. Graco's GL-42 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system.

Graco Industrial - 24W905 - Features

• Choose durable, long-lasting Graco injectors to perform your lubrication automatically and minimize downtime and maintenance costs. Graco's GL-42 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system.
• Accurate, reliable lubrication for every lube point on your machine
• Seven outlet fitting sizes available
• Convenient front-mounted visual indicator pin
• One-Piece, Machined Body provides exceptional durability
• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from 0.001–0.003 in³ (0.02–0.05 cm³)
• Operating pressures from 750-1000 psi (52-69 bar) for optimal performance with low viscosity lubricants (#10 weight minimum)
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

Graco Industrial - 24W905 - Technical Specifications

Adjustable	Adjustable
Application	On-Road Vehicles, Off-Road Equipment
Compatible Material	Oil
Compatible Metering Device	Single Line Parallel
Cycle Indicator	Visual Pin
Inlet Size (in)	1/8"
Inlet Thread Type	BSPP
Material	Carbon Steel
Maximum Working Pressure (MPa)	6.9
Maximum Working Pressure (psi)	1000
Minimum Working Pressure (MPa)	5.3
Minimum Working Pressure (psi)	750
Model	GL-42
Outlet Size (in)	0.2364
SAE Grade	10
Type	Oil Injector
