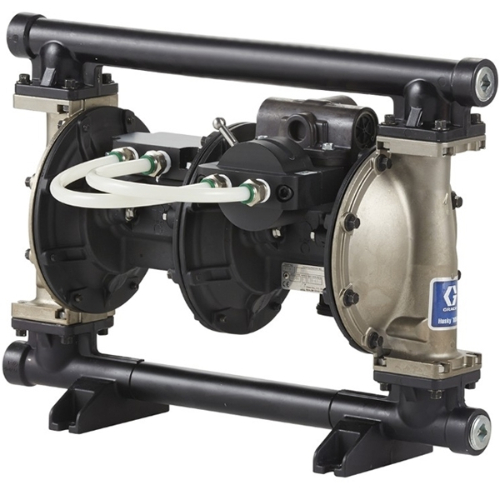

Graco Industrial 24W757 | Husky 1050HP 1" (25.4 mm) BSPT AL Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 1050HP air-operated diaphragm pump is the first pump on the market that allows users to choose between low pressure and high pressure operating modes with Graco’s low-high pressure mode valve. High pressure operation isn’t always required, so switch to the low pressure mode to reduce air c...

Graco Industrial - 24W757 - Features

• The Husky 1050HP air-operated diaphragm pump is the first pump on the market that allows users to choose between low pressure and high pressure operating modes with Graco’s low-high pressure mode valve. High pressure operation isn’t always required, so switch to the low pressure mode to reduce air consumption up to 50%. These features combined with the quality and reliability of our standard Husky diaphragm pump design make this one of the most unique high pressure diaphragm pumps on the market.
• Benefits of the Husky 1050HP Double Diaphragm Pump
• Increased fluid pressure without sacrificing flow
• Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD
• Reduce air consumption up to 50% with the low pressure mode
• Same repair parts as the Husky 1050 diaphragm pump
• External Pilots
• Ease of maintenance
• Reduced down-time (quick change time)
• Spring loaded for faster change over
• Modular Air Valve
• Ease of maintenance
• Stall and lube free
• Fluid Manifold
• Stainless Steel or Aluminum
• Additional Diaphragm
• For high pressure operation
• Low/High Pressure Operation Valve
• Selectable operating setting
• Reduces air consumption
• Only use high pressure when required
• Wetted Components
• Utilizes same parts as Husky 1050 which reduces repair part inventory

Graco Industrial - 24W757 - Technical Specifications

Air Exhaust Port Size (in)	3/4"
Air Exhaust Port Thread Gender	Female
Air Exhaust Port Thread Type	NPT
Air Inlet Size (in)	3/4"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Industrial
Ball Material	Santoprene
Center Section Material	Aluminum
Compatible Material	Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Polymer, Fibers, Alkyds, Resin, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Windshield Washer Fluid, Diesel Exhaust Fluid, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Automotive Undercoating
Connection Type	Threaded
Diaphragm Compatible Material	Santoprene
Diaphragm Material	Santoprene
Fluid Inlet Size (in)	1
Fluid Inlet Thread Type	BSPT
Fluid Outlet Size (in)	1
Fluid Outlet Thread Type	BSPT
Fluid Section Material	Aluminum
Manifold Configuration	End Port
Manifold O-Ring Material	PTFE
Material	Aluminum
Maximum Air Consumption (SCFM)	95
Maximum Air Pressure (MPa)	0.862
Maximum Air Pressure (psi)	125
Maximum Cycle Rate (CPM)	140
Maximum Flow Rate (GPM)	50
Maximum Fluid Pressure (MPa)	1.72
Maximum Fluid Pressure (psi)	250
Maximum Solid Size (in)	0.125
Model	Husky
Power Source	Air
Pump Ratio	02:01:00
Seat Material	Stainless Steel
Series	1050HP
Standards Met	ATEX, CE
Type	Pneumatic Diaphragm Pump

Graco Industrial - 24W757 - Documents and Downloads

Graco Industrial 24W757 Product Brochure	Click to View
334390E, Husky 1050HP 2:1Air-Operated Diaphragm Pump, Repair/Parts, English	Click to View
