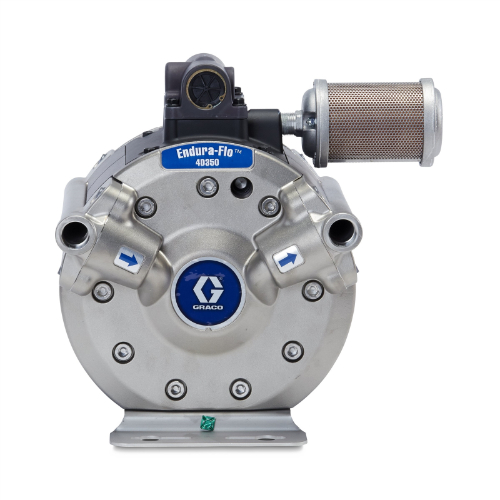

Graco Industrial 24W356 | Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, BSPP, DataTrak

The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.

Graco Industrial - 24W356 - Features

• The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
• DataTrek option prevents runaway and tracks material usage

Graco Industrial - 24W356 - Technical Specifications

Air Inlet Size (in)	1/2"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Circulation
Compatible Material	High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set
Connection Type	Threaded
Fluid Inlet Size (in)	3/4"
Fluid Inlet Thread Type	BSPP
Fluid Outlet Size (in)	3/4"
Fluid Outlet Thread Type	BSPP
Includes	BSPP Fittings, DataTrak
Material	Stainless Steel
Maximum Air Pressure (MPa)	0.7
Maximum Air Pressure (psi)	100
Maximum Cycle Rate (CPM)	20
Maximum Flow Rate (GPM)	5.5
Maximum Fluid Pressure (MPa)	2.8
Maximum Fluid Pressure (psi)	400
Maximum Operating Temperature (°F)	122
Minimum Operating Temperature (°F)	32
Model	Endura-Flo
Overall Height (in)	14.39
Power Source	Air
Pump Ratio	04:01:00
Series	4D350
Standards Met	ATEX, CE
Type	Pneumatic Diaphragm Pump
Weight (lb)	72
Wetted Material	PTFE, Stainless Steel, Perfluoroelastomer, Polyphenylene Sulfide

Graco Industrial - 24W356 - Documents and Downloads

Graco Industrial 24W356 Product Brochure	Click to View
333015N, Manual, Endura-Flo 3D150, 3D350, 4D150, and 4D350 Diaphragm Pump, Instructions, Parts, English	Click to View
345086EN Endura-Flo Flyer	Click to View
