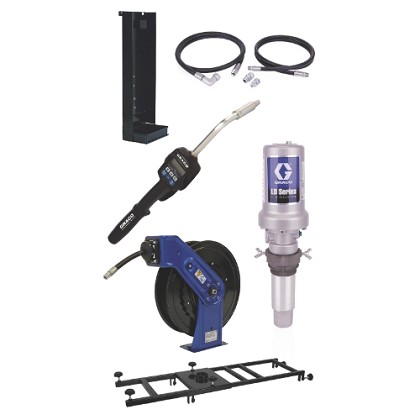

Graco Industrial 24K838 | LD Series 3:1 Deluxe Stationary 275 Gallon (1040 Liter) Oil Pump with SD Series Hose Reel Package - Preset Meter Type

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Graco Industrial - 24K838 - Features

• Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution
• Three Inch Air Motor - Provides more power to create better flow
• Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations
• Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants

Graco Industrial - 24K838 - Specifications

Order Part Number	GRA24K838
Item Description	LD Series 3:1 Deluxe Stationary 275 Gallon (1040 Liter) Oil Pump with SD Series Hose Reel Package - Preset Meter Type
Product Group Id	GRA00
MS Bin Code	FC0340
Default Selling Unit	KIT

Graco Industrial - 24K838 - Technical Specifications

Air Inlet Size (in)	0.25
Application	Oil
Compatible Material	Oil
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1/2"
Maximum Flow Rate (GPM)	7.8
Maximum Working Pressure (MPa)	5.2
Maximum Working Pressure (psi)	750
Model	LD
Power Type	Pneumatic
Pump Ratio	3:1
Type	Piston Pump Package
Wetted Material	Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum

Graco Industrial - 24K838 - Documents and Downloads

312668ZAC, Manual, LDP5 (Preset) Electronic Metered Dispense Valves, Instructions, English	Click to View
3A1334U, Manual, LD Series Oil and Grease Pump, Instructions, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
