Graco Industrial 24K836 | LD Series 3:1 Tank Mount Oil Pump with SD Series Hose Reel Package - Manual Meter Type

Stay ahead of the competition with LD Series Pumps. These affordable and full-featured Pumps are designed for lower-volume applications. LD Pumps are fine-tuned for a compact, flexible and durable solution.

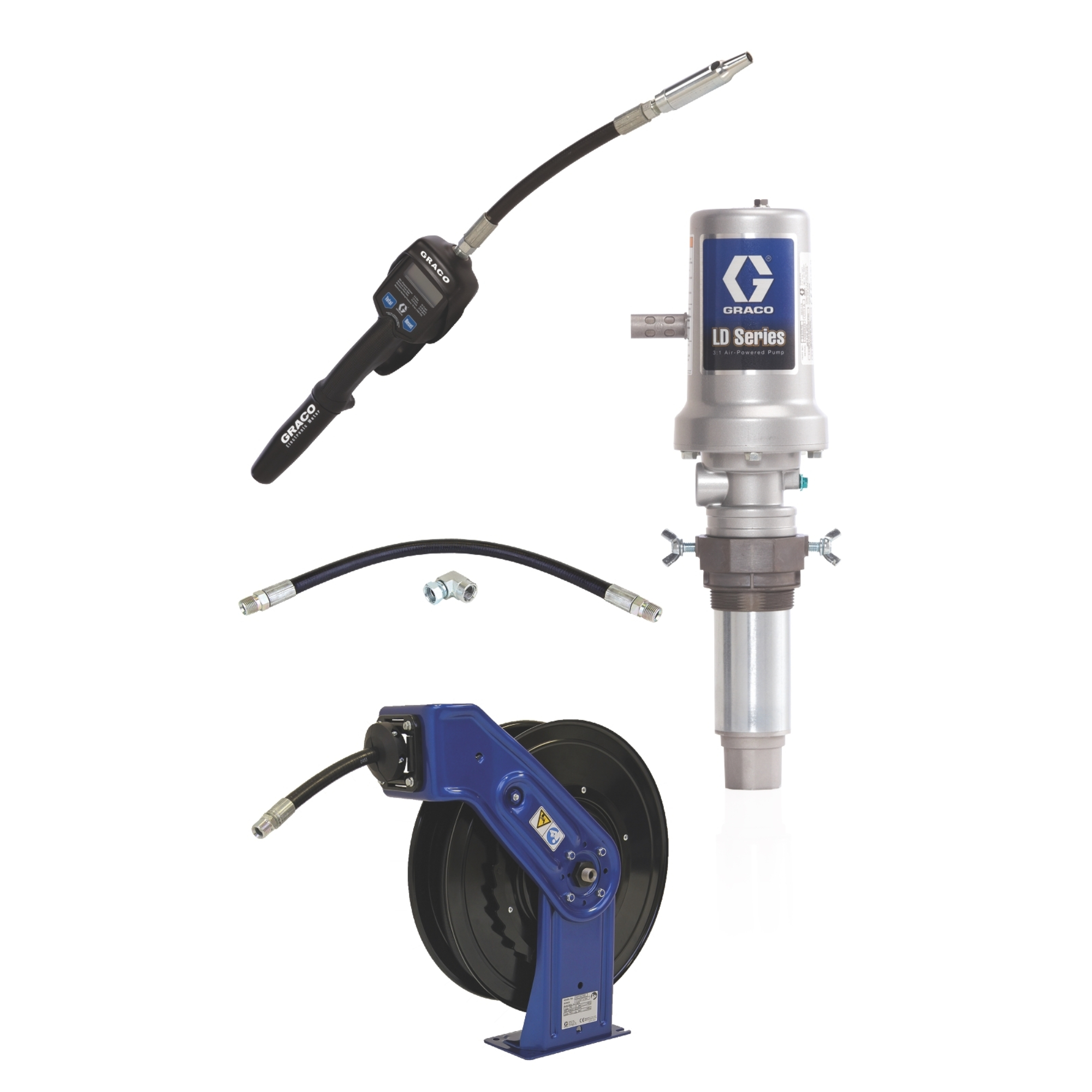

LD Series 3:1 Tank Mount Oil Pump with SD Series Hose Reel Package - Manual Meter Type

Graco Industrial - 24K836 - Features

• Stay ahead of the competition with LD Series Pumps. These affordable and full-featured Pumps are designed for lower-volume applications. LD Pumps are fine-tuned for a compact, flexible and durable solution.
• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
• Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect Pump from contaminants.

Graco Industrial - 24K836 - Specifications

Brand Name	Graco Industrial
Part Number	24K836
Item Description	Kit, 3:1 Tank Package NPT
UPC Code	633955626294
Product Family	FAMPPL
Graco Division	LED
Air Inlet Size (in)	0.25
Application	Oil
Compatible Material	Oil
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1/2
Maximum Flow Rate (GPM)	7.8
Maximum Working Pressure (MPa)	5.2
Maximum Working Pressure (psi)	750
Model	LD
Power Type	Pneumatic
Pump Ratio	3:1
Type	Piston Pump Package
Wetted Material	Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
