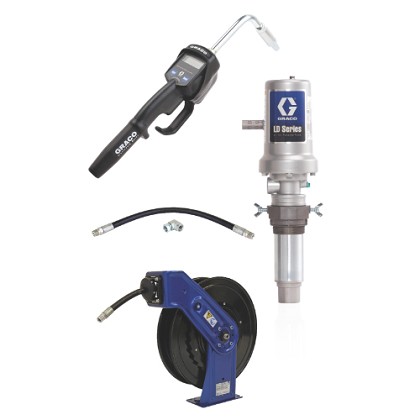

Graco Industrial 24J735 | LD Series 5:1 Tank Mount Oil Pump with SD Series Hose Reel Packages - Manual Meter Type

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Graco Industrial - 24J735 - Features

• Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

Graco Industrial - 24J735 - Technical Specifications

Air Inlet Size (in)	0.25
Application	Oil
Compatible Material	Oil
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1/2"
Maximum Flow Rate (GPM)	6.7
Maximum Working Pressure (MPa)	5.2
Maximum Working Pressure (psi)	750
Model	LD
Number of Pieces	4
Power Type	Pneumatic
Pump Ratio	05:01:00
Type	Piston Pump Package
Wetted Material	Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum

Graco Industrial - 24J735 - Documents and Downloads

Graco Industrial 24J735 Product Brochure	Click to View
3A1334U, Manual, LD Series Oil and Grease Pump, Instructions, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
