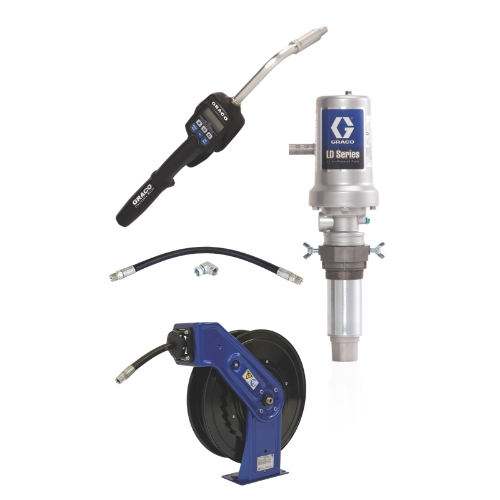

Graco Industrial 24J734 | LD Series 3:1 Tank Mount Oil Pump with SD Series Hose Reel Package - Preset Meter Type

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Graco Industrial - 24J734 - Features

• Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

Graco Industrial - 24J734 - Technical Specifications

Air Inlet Size (in)	0.25
Application	Oil
Compatible Material	Oil
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1/2"
Maximum Flow Rate (GPM)	7.8
Maximum Working Pressure (MPa)	5.2
Maximum Working Pressure (psi)	750
Model	LD
Number of Pieces	4
Power Type	Pneumatic
Pump Ratio	03:01:00
Type	Piston Pump Package
Wetted Material	Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum

Graco Industrial - 24J734 - Documents and Downloads

Graco Industrial 24J734 Product Brochure	Click to View
3A1335P, Manual, LD Oil or Grease System Packages, Instructions, English	Click to View
3A1334U, Manual, LD Series Oil and Grease Pump, Instructions, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English	Click to View
