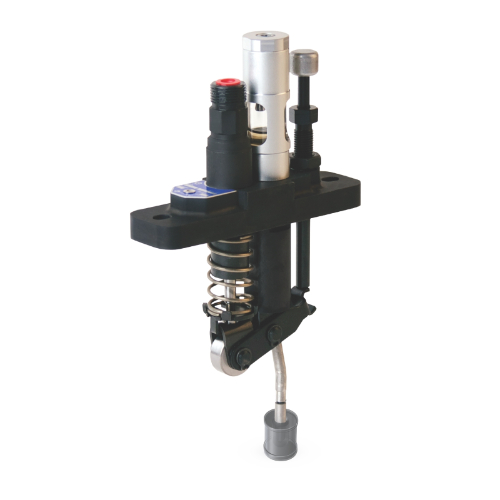

Graco Industrial 24J393 | Manzel GBL 7500 Replacement Pump, Suction Fed, 3/8 in (9.5 mm)

The Graco Manzel GBL 7500 Suction pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.

Graco Industrial - 24J393 - Features

• The Graco Manzel GBL 7500 Suction pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
• For force-feed oil lubrication systems
• Mechanically driven from camshaft in reservoir.
• Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar).
• Rugged construction for high quality performance and durability with easy to adjust pump output.
• 1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments.
• Double Ball Outlet Check reduces ball travel.
• Improved O-ring seals to eliminate leak paths.
• Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
• Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

Graco Industrial - 24J393 - Technical Specifications

Application	In-Plant Machinery, Compressor Equipment
Compatible Material	Oil
Maximum Cycle Rate (CPM)	50
Maximum Output Volume (in³)	0.054
Maximum Working Pressure (MPa)	24.1
Maximum Working Pressure (psi)	3500
Model	Manzel
Series	GBL 7500
Type	Mechanical Piston Pump
