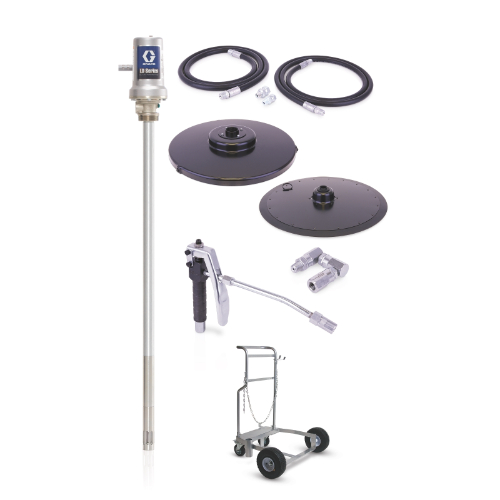

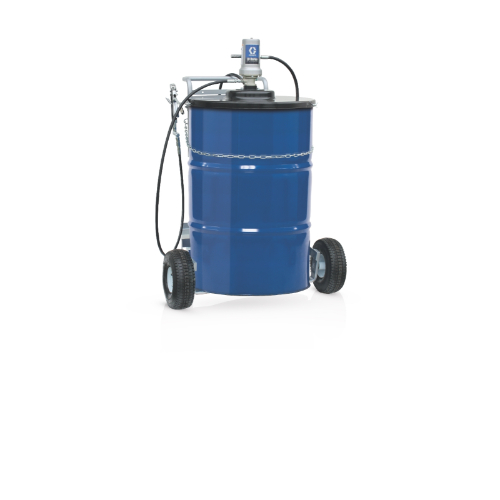

Graco Industrial 24J057 | LD Series 50:1 180 kg Grease Pump Cart Mount Package

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Graco Industrial - 24J057 - Features

• Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Graco Industrial - 24J057 - Technical Specifications

Air Inlet Size (in)	0.25
Application	Grease
Compatible Material	Grease
Fluid Outlet Size (in)	1/4"
Maximum Working Pressure (MPa)	35
Maximum Working Pressure (psi)	5000
Model	LD
Power Type	Pneumatic
Pump Ratio	1900-01-02 02:01:00
Type	Piston Pump Package
Wetted Material	Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal

Graco Industrial - 24J057 - Documents and Downloads

Graco Industrial 24J057 Product Brochure	Click to View
3A1335P, Manual, LD Oil or Grease System Packages, Instructions, English	Click to View
309924L, Air Regulators, Instructions/Parts List, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
