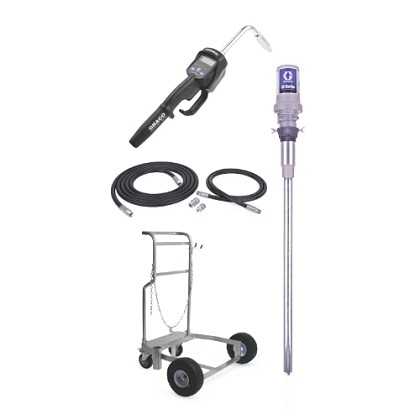

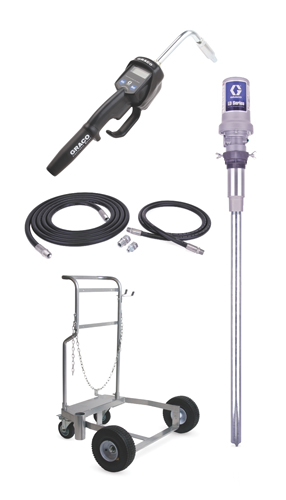

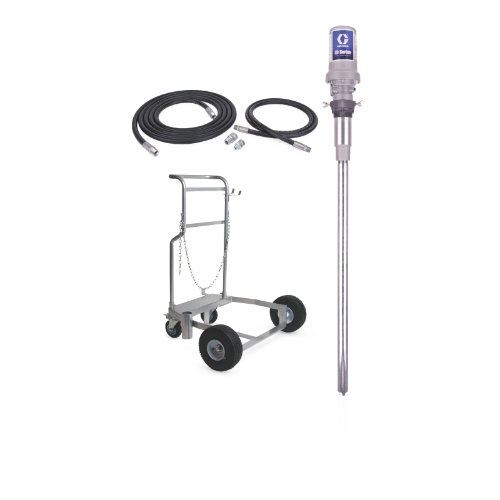

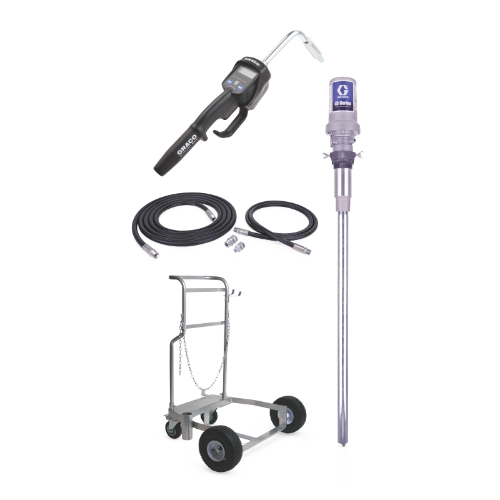

Graco Industrial 24H776 | LD Series 3:1 55 Gallon (200 Liter) Oil Pump Package - Preset Meter

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Graco Industrial - 24H776 - Features

• Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

Graco Industrial - 24H776 - Specifications

Order Part Number	GRA24H776
Item Description	LD Series 3:1 55 Gallon (200 Liter) Oil Pump Package - Preset Meter
Product Group Id	GRA00
MS Bin Code	DEFAULT
Default Selling Unit	KIT

Graco Industrial - 24H776 - Technical Specifications

Air Inlet Size (in)	0.25
Application	Oil
Compatible Material	Oil
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1/2"
Maximum Flow Rate (GPM)	7.8
Maximum Working Pressure (MPa)	5.2
Maximum Working Pressure (psi)	750
Model	LD
Number of Pieces	5
Power Type	Pneumatic
Pump Ratio	3:1
Type	Piston Pump Package
Wetted Material	Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum

Graco Industrial - 24H776 - Documents and Downloads

3A1335P, Manual, LD Oil or Grease System Packages, Instructions, English	Click to View
312668ZAC, Manual, LDP5 (Preset) Electronic Metered Dispense Valves, Instructions, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
