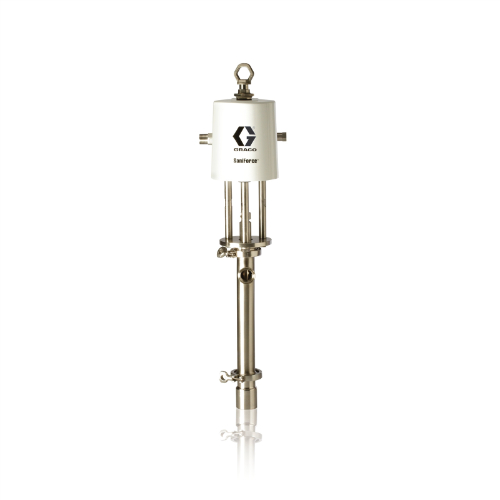

Graco Industrial 24G739 | 6:1 Ratio SaniForce Stubby RAM Priming Piston Pump

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Graco Industrial - 24G739 - Features

• Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
• Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
• Most advanced air motor on the market
• Available in double-ball and priming piston designs
• Fluid transfer and supply of low to medium viscosity fluids
• Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
• FDA-Compliant Shroud:
• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

Graco Industrial - 24G739 - Technical Specifications

Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPSM
Application	Sanitary
Compatible Material	Food, Personal Care
Fluid Outlet Size (in)	1-1/2"
For Use With	Food, Personal Care, & Pharmaceutical
Material	Stainless Steel
Maximum Air Consumption (SCFM)	29
Maximum Air Inlet Pressure (psi)	100
Maximum Continuous Cycle Rate (CPM)	60
Maximum Flow Rate (GPM)	4
Maximum Intermittent Cycle Rate (CPM)	60
Maximum Working Pressure (MPa)	4.5
Maximum Working Pressure (psi)	650
Model	SaniForce
Portable	Non-Portable
Pump Ratio	06:01:00
Seal Material	Buna, Nylon, Nitrile, CR
Standards Met	FDA Compliant Materials, CE
Type	Pneumatic Piston Pump
Wetted Material	Stainless Steel, Buna-N, Polychloroprene, Nitrile Rubber, Nylon, UHMWPE

Graco Industrial - 24G739 - Documents and Downloads

Graco Industrial 24G739 Product Brochure	Click to View
SaniForce 2.0 Overview Brochure	Click to View
