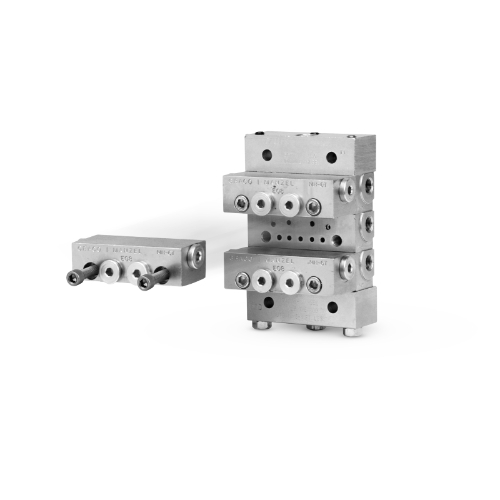

Graco Industrial 24F597 | Manzel MHH Divider Valve - 4 Section Base Plate Assemblies - NPSF

Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.

Graco Industrial - 24F597 - Features

• Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
• For compressors, industrial equipment, and where high-pressure lubrication in required.
• Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
• Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
• Built-in outlet check valves ensure accurate lube delivery every time

Graco Industrial - 24F597 - Technical Specifications

Application	In-Plant Machinery, Compressor Equipment
Compatible Material	Oil, Grease
Divider Valve Series	MHH
Inlet Thread Type	NPSF
Material	Steel
Maximum NLGI Grade	#2
Maximum Working Pressure (psi)	7500
Model	Manzel
Outlet Thread Type	NPSF
Series	MHH
Type	Divider Valve
