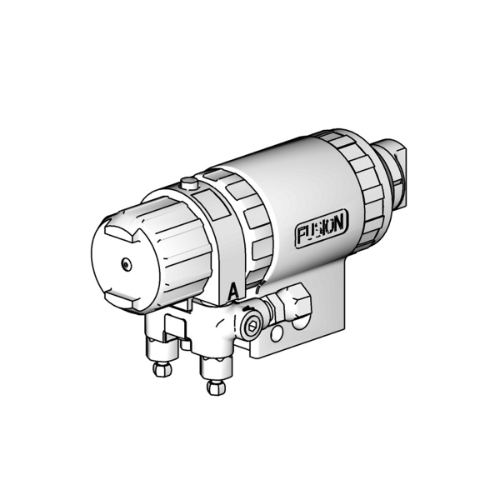

Graco Industrial 248647 | Fusion Automatic Solvent-Purge Gun

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Graco Industrial - 248647 - Features

• Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
• For high output spray polyurethane foam and polyurea applications.
• Fusion Mechanical Purge (MP) Gun – Designed for superior mixing
• Handles from very low output, thin mil applications to large, high flow, high-output applications just by changing the mix module and tip
• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Smoother finish and better atomization
• Offers more advanced features than all other mechanical-purge guns combined
• Long-lasting mix modules provide excellent mixing
• Advanced mix module and tip design provides excellent mix and material
• properties, and significantly reduces repair and maintenance costs
• CeramTip
• Durable and easy to change
• Round and flat patterns
• Adjustable Front Packing PolyCarballoy Mix Module
• For proven long life
• Adjustable Front Packing PolyCarballoy Mix Module
• For proven long life
• Contoured Trigger
• Easy two-figure actuation
• Ergonomic Handle
• Smooth curved handle improves operator comfort and reduces fatigue
• Purge Rod
• Easy-to-set, one piece rod for longer life
• Safety Stop
• Manual on/off

Graco Industrial - 248647 - Technical Specifications

Air Inlet Size (in)	1/4"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Compatible Material	Non-Flammable Foam, Polyurea
Component A Inlet Size (in)	1/2"
Component A Inlet Thread Type	UNF
Component B Inlet Size (in)	9/16"
Component B Inlet Thread Type	UNF
Component Type	Plural-Component
For Use With	Reactor Spray Foam and Coatings Equipment
Gun Activation	Manual
Gun Type	Solvent Purge Spray Gun
Gun Weight (lb)	3.7
Gun Weight (oz)	59.2
Maximum Air Inlet Pressure (MPa)	0.9
Maximum Air Inlet Pressure (psi)	130
Maximum Air Pressure (MPa)	0.9
Maximum Air Pressure (psi)	130
Maximum Fluid Pressure (MPa)	24.1
Maximum Fluid Pressure (psi)	3500
Maximum Fluid Temperature (°F)	200
Maximum Fluid Working Pressure (MPa)	24.2
Maximum Fluid Working Pressure (psi)	3500
Minimum Air Inlet Pressure (MPa)	0.55
Minimum Air Inlet Pressure (psi)	80
Model	Fusion MP
Overall Height (in)	8.1
Overall Length (in)	9
Overall Width (in)	3.5
Series	Specialty
Sound Power Level (dB(A))	79.9
Sound Pressure Level (dB(A))	70
Type	Spray Gun
