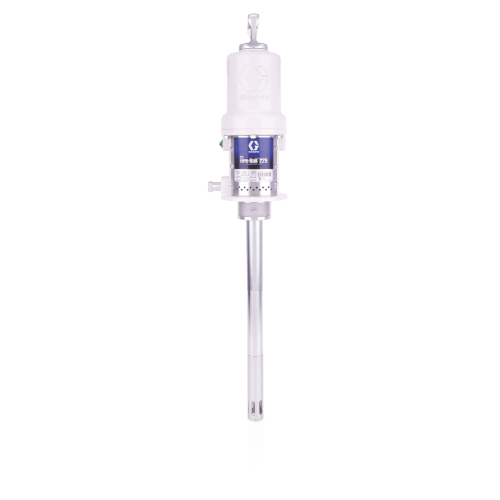

Graco Industrial 246909 | Mini Fire-Ball 225 50:1 35 lb (16 kg). Grease Pump

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Graco Industrial - 246909 - Features

• You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
• The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Graco Industrial - 246909 - Technical Specifications

Air Inlet Size (in)	3/8"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Air Motor Effective Diameter (in)	2.25
Application	Industrial
Compatible Material	Grease
Fluid Inlet Type	Slotted
Fluid Outlet Size (in)	1/4"
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
For Use With	Grease
Maximum Air Inlet Pressure (psi)	140
Maximum Continuous Cycle Rate (CPM)	60
Maximum Intermittent Cycle Rate (CPM)	100
Maximum Working Pressure (MPa)	58
Maximum Working Pressure (psi)	8400
Model	Mini Fire-Ball
Power Type	Pneumatic
Pump Ratio	1900-01-02 02:01:00
Seal Material	Polyurethane
Series	225
Sound Power Level (dB(A))	85.6
Sound Pressure Level (dB(A))	77.8
Type	Pneumatic Piston Pump
Weight (lb)	15
Wetted Material	Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin

Graco Industrial - 246909 - Documents and Downloads

Graco Industrial 246909 Product Brochure	Click to View
309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
300787EN-A.pdf	Click to View
