Graco Industrial 243817 | Fire-Ball 425 Series 75:1 120 lb. (54 kg) Open-Head Cover-Mounted Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Graco Industrial - 243817 - Features

• The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
• The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.
• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Graco Industrial - 243817 - Technical Specifications

Air Inlet Size (in)	0.5
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Industrial
Compatible Material	Grease
Fluid Inlet Type	Slotted
Fluid Outlet Size (in)	3/8"
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT

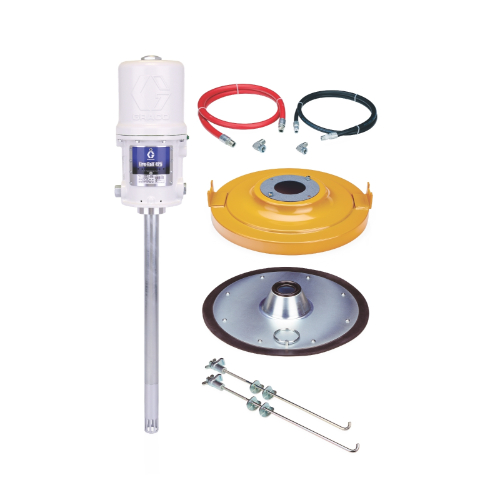

Includes	Fireball 75:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit
Maximum Air Working Pressure	100
Maximum Working Pressure (MPa)	27.6
Maximum Working Pressure (psi)	4000
Model	Fire-Ball
Motor Type	Pneumatic
Mount Location	Truck Mount
Power Type	Pneumatic
Pump Ratio	1900-01-03 03:01:00
Pump Weight (lb)	30
Series	425
Type	Piston Pump Package
Wetted Material	CS, Leather

Graco Industrial - 243817 - Documents and Downloads

Graco Industrial 243817 Product Brochure	Click to View
306345W, Manual, Lube Ranger Components, Parts, English	Click to View
308777P, Manual, 75:1 Fire-Ball 425 Pumps, Instructions-Parts, English	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
