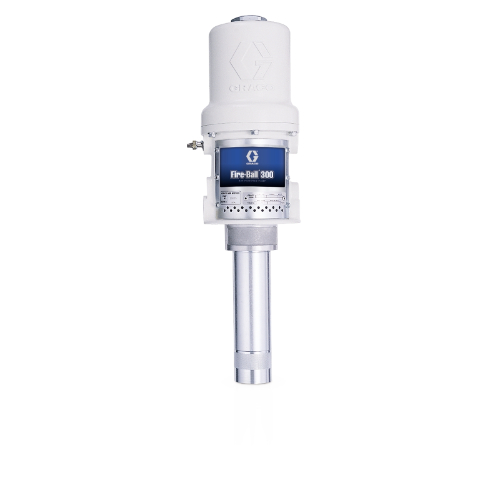

Graco Industrial 203876 | Fire-Ball 300 Series 5:1 Universal Size Oil Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps bu... More Info

Graco Industrial - 203876 - Features

• As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
• Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Graco Industrial - 203876 - Specifications

Order Part Number	GRA203876
Item Description	Fire-Ball 300 Series 5:1 Universal Size Oil Pump
Product Group Id	GRA00
MS Bin Code	FC032
Default Selling Unit	EA

Graco Industrial - 203876 - Technical Specifications

Air Inlet Size (in)	3/8"
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Air Motor Effective Diameter (in)	3
Application	Industrial
Compatible Material	Oil
Cycles Per Gallon	30
Fluid Inlet Thread Gender	Female
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1/2"
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
For Use With	Petroleum- and synthetic-based oils (motor, gear and ATF)
Maximum Air Consumption (SCFM)	25
Maximum Air Inlet Pressure (psi)	180
Maximum Continuous Cycle Rate (CPM)	70
Maximum Intermittent Cycle Rate (CPM)	70
Maximum Working Pressure (MPa)	6.2
Maximum Working Pressure (psi)	900
Model	Fire-Ball
Power Type	Pneumatic
Pump Ratio	05:01:00
Series	300
Sound Power Level (dB(A))	85.6
Sound Pressure Level (dB(A))	77.8
Type	Pneumatic Piston Pump
Weight (lb)	17
Wetted Material	Steel, Polyurethane, Aluminum, Buna-N
Air Inlet Size (cm)	0.9525

Graco Industrial - 203876 - Documents and Downloads

306518ZAG 5:1 Fire-Ball 300 Pump	Click to View
303245EN-AJ Graco Vehicle Service Equipment (VSE) North American Buyer's Guide	Click to View
