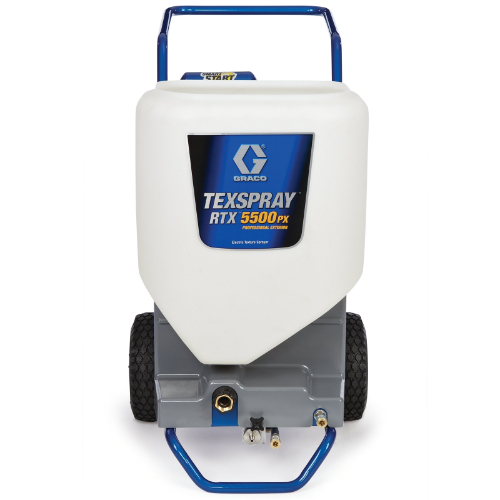

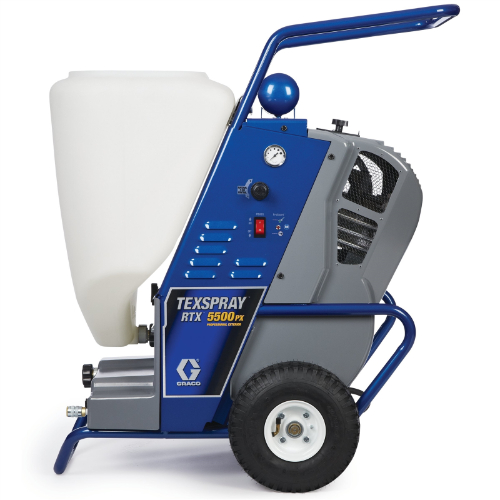

Graco Industrial 17H581 | TexSpray RTX 5500PX Texture Sprayer

The RTX 5500PX is configured for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.


https://www.autotoolworld.com/assets/icons/features.jpg

Graco Industrial - 17H581 - Features

  • The RTX 5500PX is configured for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.
  • The RTX Pro Exterior Series is configured to tackle exterior jobs of all sizes.
  • 240 Volt AC High-Output Electric Motor
  • Connects to standard 220-240 Volt L6-30 receptacles (3 wire) on most distribution boxes or generators
  • Allows for trouble-free use of long extension cords with less circuit breaker issues
  • Jobsite-Proven RotoFlex HD Pump
  • Features an innovative braided sling that provides extra support to the RotoFlex pump tube
  • 5.5 gpm (21 lpm) output to get the job done quickly
  • SmartStart System
  • Trigger-Activated Power
  • Automatically start & stop the pump and compressor
  • Soft-start eliminates material blasts to ensure a quality finish
  • Reduces noise and vibration while extending pump and compressor life
  • Twin-Cylinder Air Compressor
  • More Air for Demanding Finishes
  • High-output, maintenance-free design runs at lower RPM for longer life
  • External Air Input
  • Added Air Capability
  • Allows external air to be used for demanding finishes
  • Heavy-Duty Material/Air Hose
  • Improved Handling & Flexibility
  • Both hoses are permanently bonded together for easy handling
  • FlexChange Pump Section
  • Eliminate Costly Downtime
  • Swap your RotoFlex pump in seconds - no tools required
  • Adjustable Material Flow Control
  • Maximum Control
  • Quickly adjust material flow up or down with easy-to-read gauge
  • Heavy-Duty Aluminum Trigger Gun
  • Total Spray Control
  • Select prime mode at the gun with Integrated Prime Selector
  • Spray more material longer with durable aluminum design & oversized passages
  • WideTex with Hardened Tips & Adapter
  • Increase Productivity by Over 20%
  • Spray uniform, repeatable patterns with less material and pressure adjustment
  • 2X harder than Standard WideTex tips



https://www.autotoolworld.com/assets/icons/specs.jpg

Graco Industrial - 17H581 - Technical Specifications

Amperage (A)10, 16
Compatible MaterialSimulated Acoustic, Drywall Mud, Elastomeric Coating, Deck Coating, Cement-Based Material
IncludesHeavy-Duty Air Spray Trigger Gun, 1 1/4 in x 25 ft Heavy-Duty Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Material ApplicationLiquid Waterproofing
Maximum Flow Rate (GPM)5.5
Maximum Hose Length (ft)100
Maximum Sound Pressure Level (dB(A))81.8
Maximum Working Pressure (MPa)0.7
Maximum Working Pressure (psi)100
Minimum Generator Power (W)7500
ModelTexSpray RTX
Overall Height (in)39.5
Overall Length (in)33.75
Overall Width (in)22.75
Power SourceElectric
Product SeriesPro Exterior
Recommended Annual UsageUp to 2500 gallons per year
Series5500PX
TypeAir-Powered Sprayer
Voltage (V)240
Weight (lb)163
Wetted MaterialBrass, Aluminum, Plastic, Stainless Steel, Carbon Steel, Elastomer



https://www.autotoolworld.com/assets/icons/pdf.jpg

Graco Industrial - 17H581 - Documents and Downloads

Graco Industrial 17H581 Product BrochureClick to View
3A3485A - RTX5000, RTX5500 Texture Sprayers (English)Click to View
3A3373C, Texture Sprayer Gun, Operation, Parts, EnglishClick to View
342526EN-I Graco Contractor Equipment WarrantyClick to View
344382EN-D Texture Sprayers BrochureClick to View
