Graco Industrial 17H469 | LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks

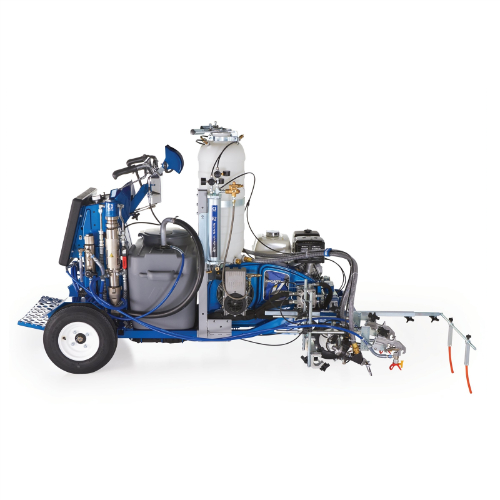

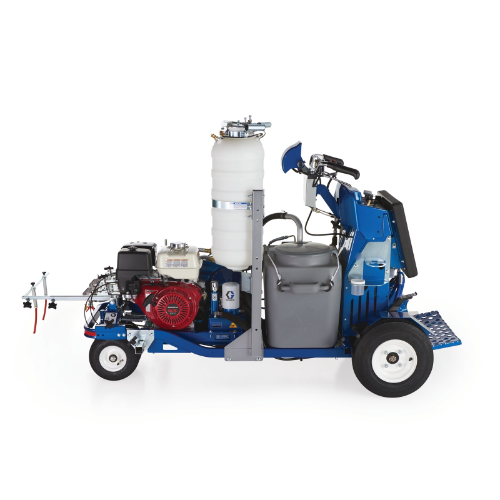

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.


https://www.autotoolworld.com/assets/icons/features.jpg

Graco Industrial - 17H469 - Features

  • With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.
  • The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
  • Pressurized EZ Bead System
  • Superior Bead Application Performance
  • Ensures proper bead flow and paint penetration
  • Dual bead tanks hold up to 120 lbs each
  • Automatic Paint Gun System
  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
  • Remote Mount Control Box
  • Striping Information At-A-Glance
  • Simple to use and easy to see in all conditions
  • 25-Gallon Paint Hopper
  • Less Refilling
  • Extended striping time with large capacity hopper
  • Honda GX Engine
  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
  • Fast starting
  • EasyMark Gun Adjustment System
  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
  • Straighter long lines
  • Use up to six guns
  • Self-Centering Front Wheel
  • Simple operation
  • Foam-filled, three-wheel design for stability
  • Additional Features
  • Easy Handlebar Adjustment
  • Endurance Chromex Pump
  • High-Efficiency Hydraulic Motor
  • High-Capacity Cooling System
  • Easy Out Pump Filter



https://www.autotoolworld.com/assets/icons/specs.jpg

Graco Industrial - 17H469 - Technical Specifications

Bead Tank Size (lb)240
Compatible MaterialRoad-Marking Paint
Compatible SurfacesPavement, Turf
Engine BrandHonda
Engine ModelGX390
Fuel Tank Capacity (gal)1.4
Gun ActivationAutomatic
Hopper Volume Capacity (gal)25
IncludesPressurized Bead System (2 Tanks), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
Maximum Flow Rate (GPM)2.5
Maximum Operating Speed (mph)10
Maximum Sound Pressure Level (dB(A))89.1
Maximum Speed (RPM)3600
Maximum Tip Size (in)0.039
Maximum Working Pressure (psi)3300
ModelLineLazer V
Number of ColorsOne Color
Number of Guns2
Number of Hoppers1
Number of Pumps1
Overall Height (in)50.5
Overall Length (in)73.5
Overall Width (in)33
Power Rating (HP)13
Power Rating (kW)9.69
Power SourceGas Hydraulic
Product SeriesHP Reflective
Pump TypeEndurance
Series250SPS
TypeSelf-Propelled Line Striper
Weight (lb)778



https://www.autotoolworld.com/assets/icons/pdf.jpg

Graco Industrial - 17H469 - Documents and Downloads

Graco Industrial 17H469 Product BrochureClick to View
3A3393D, LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Operation, EnglishClick to View
3A3394H, Manual, LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Repair/Parts, EnglishClick to View
3A3428B, LineLazer V 3900, 5900 Airless Line Stripers, Operation, EnglishClick to View
342526EN-I Graco Contractor Equipment WarrantyClick to View
344385EN-I LineLazer BrochureClick to View
