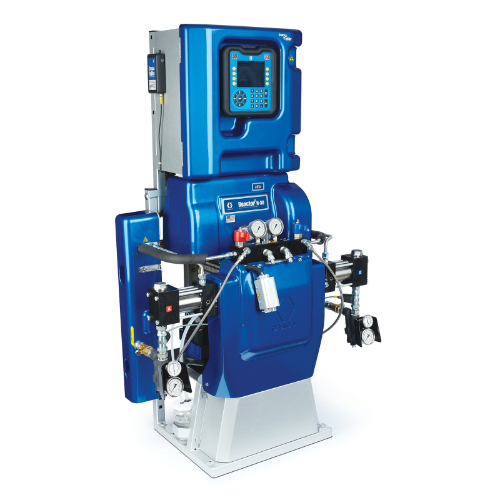

Graco Industrial 17H043 | Reactor 2 H-40 Proportioner, 15 kW, 230 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Graco Industrial - 17H043 - Features

• Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.
• For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.
• What a hydraulic system can do for you:
• Dependability - robust, durable, longest life spray system
• Reduce downtime - allows for longer time in between required maintenance
• Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology
• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators
• Quick and easy troubleshooting thanks to QR code shortcuts
• Results in less downtime
• Sacrificial surge protector
• Protects your electronics against excessive power spikes
• Three-year warranty
• Covers user display and control modules
• One of the best in the industry

Graco Industrial - 17H043 - Technical Specifications

Amperage (A)	71
Application	Spray Foam
Applicator Type	Manual
Compatible Material	Plural Components
Component Type	Two Component
Flush Type	Solvent
Frequency (Hz)	50/60
Gun Type	No Gun
Hose Package	No Hose
Material Application	Polyurethane Foam
Maximum Flow Rate (lb/min)	45
Maximum Fluid Temperature (°F)	190
Maximum Hose Length (ft)	410
Maximum Mix Ratio	01:01:00
Maximum Working Pressure (MPa)	13.8
Maximum Working Pressure (psi)	2000
Model	Reactor 2
Overall Depth (in)	20.88
Overall Height (in)	63.3
Overall Width (in)	32.96
Power Rating (HP)	20.11
Power Rating (W)	15000
Power Rating (kW)	15
Power Source	Hydraulic
Pressure Type	High Pressure
Product Series	Non-Elite
Product Type	Plural Component
Resin Inlet Size (in)	3/4"
Resin Inlet Thread Gender	Female
Resin Inlet Thread Type	NPT
Series	H-40
Sound Pressure Level (dB(A))	82.6
Type	Proportioner Package
Voltage (V)	230 3 PH
Wetted Material	Aluminum, Brass, Chrome, Fluoroelastomer, PTFE, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel, Carbide
