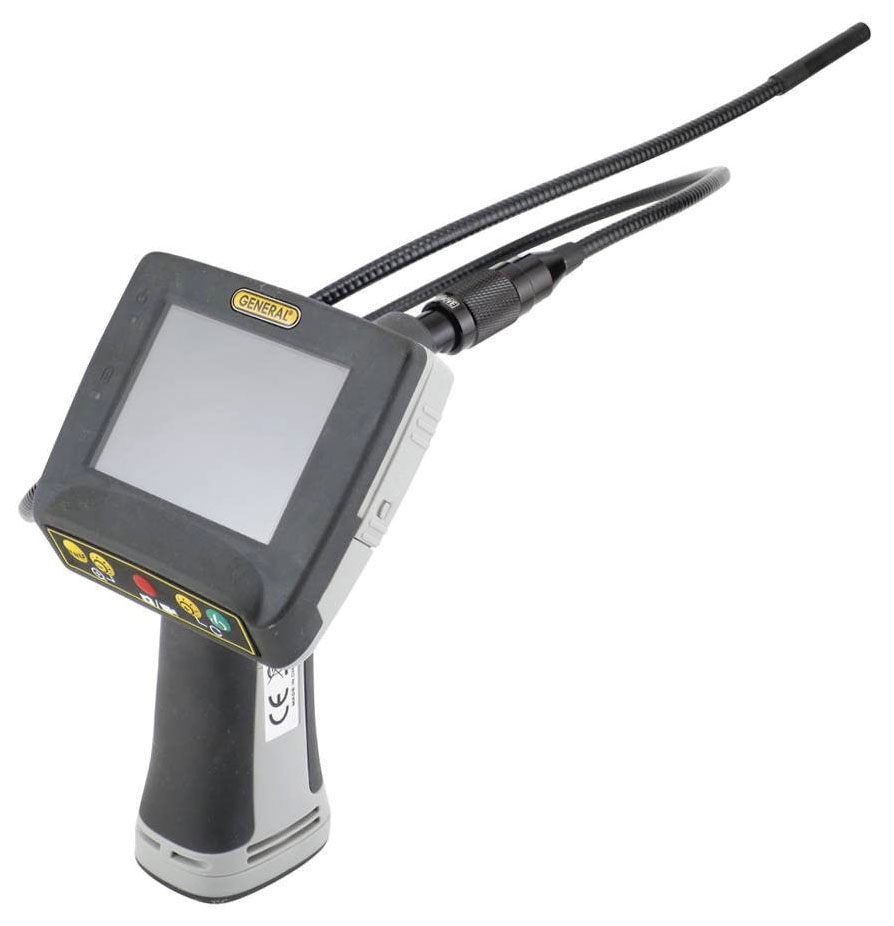

General Tools & Instruments DCS660A | Recording Video Scope With 8Mm Dia Wet/Dry

Video Inspection Camera/Borescope

Item Video Inspection Camera/Borescope, Waterproof, Recording, Flexible-Obedient

Size 0.31 Inch Diameter x 3.3 Foot Length, 4.1 Inch x 7.0 Inch x 5.3 Inch (Grip and Console)

Display Type Color TFT

General Tools & Instruments - DCS660A - Features

• The grip, probe and monitor with 3.5 Inch diagonal color LCD are guaranteed leakproof to a depth of 1m. All three components will also resist leaks at depths up to 2m for up to 1 hour
• Includes the 1 Meter long x 8 Millimeter diameter far-focus #P608-1SR probe, with an IP67 rating and a VGA resolution (640 x 480 pixel) camera lit by four adjustable-brightness LEDs. Longer, thinner, close-focus, articulating and pipe and duct probes
• The monitor records VGA resolution video clips and saves still photos to a MicroSD memory card (a 4GB card is included)
• Recorded media can be played back on the monitor's LCD, or uploaded to a PC via the MicroSD card or the included USB cable for viewing on a larger screen
• Video shown on the monitor can be zoomed up to 4X and inverted 180 Degree
• Includes three useful probe tip accessories (a 45Degree mirror, a pickup hook and a magnetic pickup)
• Choice of five menu languages
• Makes it possible to inspect sewer and water lines carrying running water
• Enables a diver or snorkeler to view probe video underwater in real time. Other waterproof inspection systems lack watertight grips and monitors
• Also ideal for marine search and rescue operations
• Eliminates concerns about accidentally dropping or dunking grip or monitor into water
• Grip, probe and monitor are guaranteed leak-proof to depth of 1m; all three components will also resist leaks at depths up to 2m for short periods (1 hour, max)
• Includes 8mm (0.31 in.) diameter x 1m (3.28 ft.) long close-focus camera-tipped probe with adjustable LED lighting
• Probe is flexible-obedient, meaning it retains its shape
• 3.5 in. (89mm) color LCD makes videos large and crystal-clear
• Video can be inverted (rotated 180) to make it easier to read labels and serial numbers
• Analog Video Out jack
• Powered by four AA batteries (not included)
• Includes 4GB MicroSD memory card, USB cable, Watertight grip, monitor and 1m camera-tipped probe; Video cable; Set of three probe tip accessories (45° mirror, pickup hook and magnetic pickup);Hard plastic protective case, User’s manual, 1 Year Limited Warranty
• Additional Features for SeaScope660A
• Record time/date-stamped still images and videos on included 4GB MicroSD memory card
• Videos can be panned by joystickand zoomed up to 4X
• Includes USB jack and cable for PC connection
• 10-minute Auto Power Off
• Camera Depth 2.4 Inch to 10 Foot
• Camera Field of View 54 Degree
• Camera Resolution 640 x 480 Pixels (VGA)
• Display Resolution 320 x 240 Pixels (QVGA)
• Operating temperature 14 to 122 Deg F
• Power Source AA Battery
• Weight of Grip and Console 1.1 Pound
• Includes 8 Millimeter Probe, Grip, Monitor and #P608-1SR Probe, (3) Probe Tip Accessory, 4GB Micro SD Memory Card, USB and A/V Cable, Custom Hard Plastic Carrying Case
• Application Plumbing, Automotive, HVAC/R and General Inspection
• The first and only video inspection systems with an IP67 rated waterproof grip, monitor and camera-tipped probe.
• The DCS660A is one of only four video inspection systems on the market with an IP67 waterproof grip and monitor as well as an IP67 waterproof camera-tipped probe. The other systems include another recording model DCS665 and General's real-time (non-recording) video systems DCS600A and DCS605. The DCS660A comes with an 8mm diameter x 1m (3.3 ft.) long, far-focus probe with a depth of field of 2.4 in. to 10 ft. (60mm to 3m).
• The Wet/Dry Scope’s water tightness makes the system ideal for plumbing-related tasks like inspecting water or sewer lines carrying running water. The system also can be used to inspect parts of boats, ships or bridges just below the surface. Because the entire unit is impervious to water you can use it freely around water without worrying about accidentally "dunking" the grip and monitor. No other camera scope with an integral monitor—other than the DCS600A DCS605 and DCS665—is completely watertight.
• Operated in real-time video mode, the Recording Wet/Dry Scope uses only three of the five control buttons to execute five functions; powering on/off, 1 to 4X zoom, increasing and decreasing brightness, and inverting the field of view, making it very easy to learn to use. Video within the probe’s field of view is displayed on a large, crystal-clear 3.5 in. (89mm) diagonal color LCD.
• Alternatively, recorded video can be viewed on an NTSC- or PAL-format television by utilizing the included A/V cable. The scope’s recording capabilities make it possible to document—with high-resolution videos and images—what the probe "sees."
• Pressing the front-panel imaging button activates the image storage function. You can record and store either a still image or an AVI video (depending on how you configure the button) of the probe's field of view on a 4GB Micro SD memory card supplied with the system. The same button is used to view (play back) recorded images and videos on the unit’s LCD. Alternatively, recorded images and videos can be viewed on a larger screen by ejecting the SD card and plugging it into a laptop or desktop PC, or by connecting the scope to a PC via the included USB cable.

General Tools & Instruments - DCS660A - Additional Information

• Camera Depth 2.4 Inch to 10 Foot
• Camera Field of View 54 Degree
• Camera Resolution 640 x 480 Pixels (VGA)
• Display Resolution 320 x 240 Pixels (QVGA)
• Operating temperature 14 to 122 Deg F
• Power Source AA Battery
• Weight of Grip and Console 1.1 Pound
• Includes 8 Millimeter Probe, Grip, Monitor and #P608-1SR Probe, (3) Probe Tip Accessory, 4GB Micro SD Memory Card, USB and A/V Cable, Custom Hard Plastic Carrying Case
• Application Plumbing, Automotive, HVAC/R and General Inspection

General Tools & Instruments - DCS660A - Specifications

Order Part Number	GNDCS660A
Item Description	Recording Video Scope With 8Mm Dia Wet/Dry
Manufacturer Long Name	General Tools & Instruments LLC
Manufacturer Part Number	DCS660A
Product Group Id	GN01
MS Bin Code	AD137
Default Selling Unit	EA
UNSPSC	41111716
