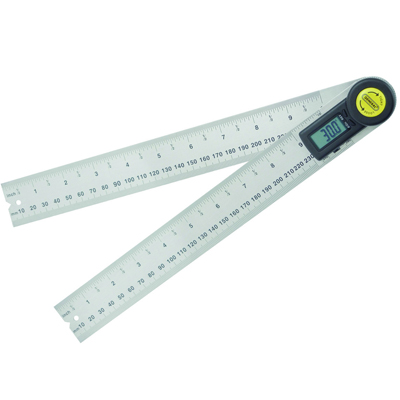

General Tools & Instruments 823 | Digital Angle Finder 10"

Digital Angle Finder

Minimum Angle 0

Maximum Angle 360

Length 10-7/8 Inch

General Tools & Instruments - 823 - Features

• Lock and reverse-angle modes
• Jumbo LCD
• Hinge mechanism provides full 360 Degree for measuring inside/outside and reverse angles
• Stainless steel construction
• Can be zeroed at any point in the swing
• Power source CR2032 Lithium-ion battery (included)
• Digital stainless steel angle rules make precise measurements for easy woodworking.
• Calculates interior (inside) and exterior(outside) angles easily and accurately in seconds.
• Lock and reverse angle features for all types of work.
• Large easy to read LCD display.
• Hinge mechanism allows a full 360 degrees to measure inside/outside and reverse angles.
• Can be zeroed at any point in the swing
• Overall Length for 823 10-7/8? Width1-3/8? Depth 6/8?
• Width 1-3/8 Inch
• Thickness 3/4 Inch
• Material Stainless Steel
• Size 10 Inch
• Display Type Large Easy to Read LCD
• Accuracy +/- 0.3 Deg
• Resolution 0.1 Deg
• Includes 3 Volt CR2032 Lithium-Ion Battery
• These new angle finders combine the ruggedness of analog rulers (standard and metric) together with the digital technology needed for complete accuracy when measuring inside, outside and reverse angles. Precise measurements prevent waste by facilitating exact miter cuts. One button activates the reverse angle function, a hold button digitally saves the measurement and the large ergonomic locking knob saves the angle manually. A big LCD readout makes measurements extremely easy to read while an innovative center check notch enables exact ruler placement marking.

General Tools & Instruments - 823 - Additional Information

• Size 10 Inch
• Display Type Large Easy to Read LCD
• Accuracy +/- 0.3 Deg
• Resolution 0.1 Deg
• Includes 3 Volt CR2032 Lithium-Ion Battery

General Tools & Instruments - 823 - Specifications

Order Part Number	GN823
Item Description	Digital Angle Finder 10"
Manufacturer Long Name	General Tools & Instruments LLC
Manufacturer Part Number	823
Product Group Id	GN01
Country of Origin	CN
Harmonization Code	90172040
MS Bin Code	AD112
Default Selling Unit	EA
UNSPSC	41111600

General Tools & Instruments - 823 - Documents and Downloads

General Tools & Instruments 823 Additional Specification Sheet	Click to View
General Tools & Instruments 823 Brochure	Click to View
General Tools & Instruments 823 Catalog Pages	Click to View
