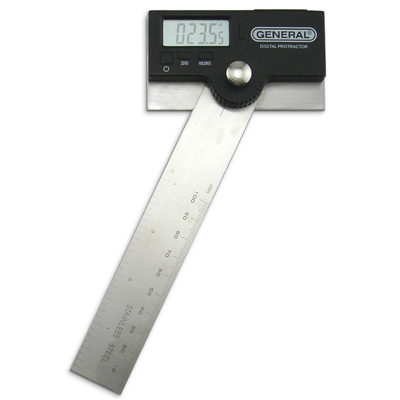

General Tools & Instruments 1702 | Protractor Digital

The improved Model 1702 (Patent Pending) displays absolute and relative angle measurements in a large, easy-to-read LCD window. This display offers a hold function and can be inverted 180° for easy reading when the tool is upside down.

Designed in-house by General's engineering team, this precision specialty tool is perfect for installing crown molding, cabinetry, counters, staircases, roofs, windows or flooring. It features a 6" (150mm) stainless steel pivoting protractor arm with a knurled locking nut and one-button zero calibration, which ensures accurate readings every time.

Effortlessly calculate angles by simply swinging open the 6"inch stainless steel pivoting arm, which can be locked in any position. For user convenience and comfort, the display offers a hold function and is easily inverted, or flipped, 180 degrees for reading upside down. Angles in any plane can be measured with accuracy to 0.1 degree and 0.05 degree resolution anywhere within a 0.00 to 180 degree range, making this tool useful for many applications.

General Tools & Instruments - 1702 - Features

• 6? (150mm) stainless steel pivoting protractor arm with a knurled locking nut
• Large, easy-to-read LCD Display
• Absolute and Relative Measurements
• Accuracy to 0.1°
• Resolution 0.05°
• Range 0.00 to 180.00°
• Display can be inverted for easy reading
• Hold function to freeze measurement
• Power Source 1 "CR2023" (3.0V) battery (included)

General Tools & Instruments - 1702 - Specifications

Order Part Number	GN1702
Item Description	Protractor Digital
Product Group Id	GN01
Country of Origin	CN
Harmonization Code	90172040
MS Bin Code	AD053
Default Selling Unit	EA
