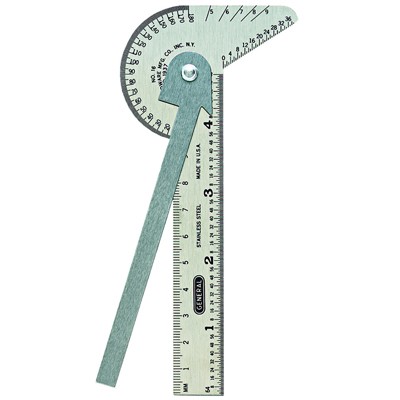

General Tools & Instruments 16ME | Rule/Gauge

The Multi-Use Rule and Gage is a popular, pocket-sized tool providing a variety of functions. The tool encompasses five distinct features including a Drill Point Gage, Bevel Protractor, Center Finder, Circle Divider and a Tap and Drill Table. The Multi-Use Rule and Gage is made from heavy-duty stainless steel and also includes a 4 rule with etched graduations in 64ths and millimeters.

General Tools & Instruments - 16ME - Features

• One of our most popular pocket tools performs five separate and distinct functions
• Drill point gage is used for checking 59° angle drill points
• Bevel protractor is used for measuring and laying out angles
• Center finder locates centers of shafts or circles
• Circle divider (up to nine equal parts) is used for dividing circles into sectors, regular polygons and polygrams
• Tap and drill table shows popular tap sizes with correct drill sizes for National form of thread
• Made of long-wearing stainless steel
• 4? rule has etched graduations in 64thsand millimeters

General Tools & Instruments - 16ME - Specifications

Order Part Number	GN16ME
Item Description	Rule/Gauge
Product Group Id	GN01
Country of Origin	IN
Harmonization Code	90172080
MS Bin Code	AD054
Default Selling Unit	EA
