General Tools & Instruments 147 | Caliper Digital Fractional

Fractional Caliper

Display Type Digital

Graduation 1/64 Inch

Accuracy +/- 0.001 Inch

General Tools & Instruments - 147 - Features

• Extra Large, Easy To Read Tri-Mode Digital Display - The Fraction+ Digital Calliper Switches Between Inch es, Millimeters And Fractions At The Touch Of A Button
• Rugged Stainless Steel Design - Has Heavy Duty Housing And Delivers Inside, Outside, Depth And Step Measurement
• Preserve Battery Life - With The Digital Caliper's Auto On/Off Feature
• Includes - Power Source Sr44 Battery, Foam Padded Carrying Case
• 6" Stainless Steel Caliper

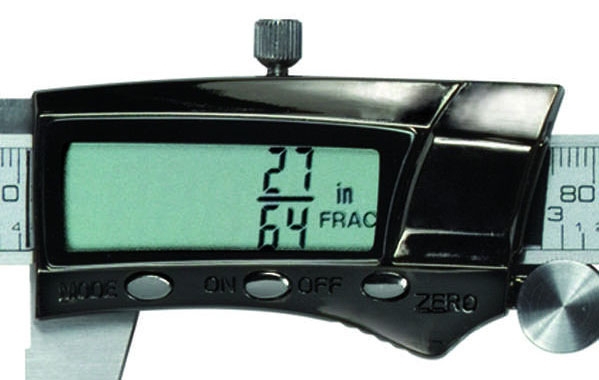

• Tri-Mode digital display – inches, millimeters, and fractions
• For making inside, outside, depth and step measurements
• Resolution 0.0005" (0.01mm or 1/64?)
• Accuracy 0.001" (+/- 0.02mm)
• Auto off feature preserves battery life
• Free-wheeling friction roller advances and retracts slide
• Bar scale is graduated in inches and millimeters
• Etched and filled black graduations
• Extendable depth gage for use in slots and small holes
• Convenient foam-padded case for storage
• Flashing display indicates low battery
• Replacement Battery – LR44
• Body Material Rugged Stainless Steel
• Type Decimal Inch, Fractional and Metric
• Measurement Range 0 to 6 Inch
• Resolution 0.0005 Inch

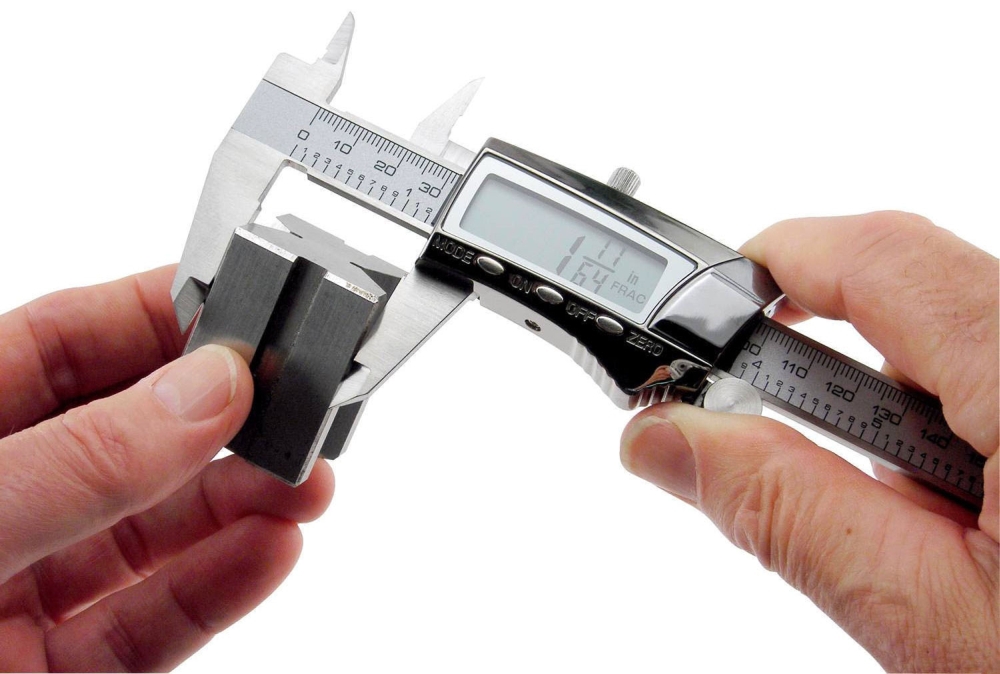

• 4-Way Measurement Inside, Outside, Depth and Step
• Includes 1.5 Volt SR54 Silver Oxide Battery, Extra-Large LCD Screen, Foam Padded Carrying Case
• Made of heavy-duty stainless steel
• Displays measurements in fractional inches, decimal inches or millimeters
• Inside, outside & step measurements
• Auto power off
• Power source: "SR44" battery (included)

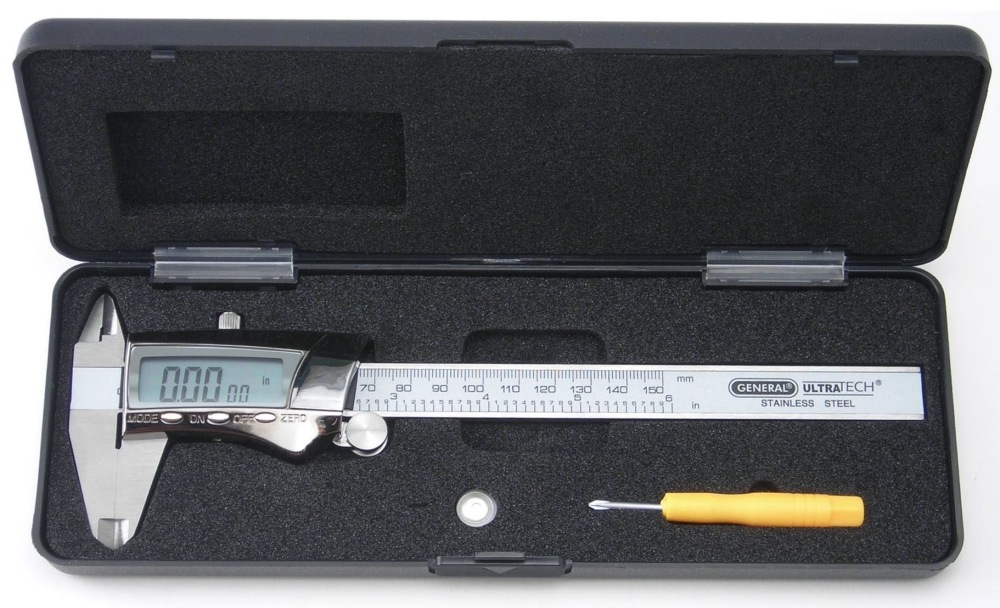

• The General Tools Digital Fractional Caliper brings you three universal systems of measurement, making it an equally practical choice for both professional and do-it-yourself projects. The high-contrast digital display easily switches between inches, millimeters and fractions, with guaranteed accuracy to 0.001". In addition, the rugged stainless steel design delivers accurate readings of inside, outside, step and depth measurements. The Fraction+ comes with a foam padded plastic case for safe storage when not in use.

General Tools & Instruments - 147 - Additional Information

• Type Decimal Inch, Fractional and Metric
• Measurement Range 0 to 6 Inch
• Resolution 0.0005 Inch
• 4-Way Measurement Inside, Outside, Depth and Step
• Includes 1.5 Volt SR54 Silver Oxide Battery, Extra-Large LCD Screen, Foam Padded Carrying Case

General Tools & Instruments - 147 - Specifications

Order Part Number	GN147
Item Description	Caliper Digital Fractional
Manufacturer Long Name	General Tools & Instruments LLC
Manufacturer Part Number	147
Product Group Id	GN01
Country of Origin	CN
Harmonization Code	90173040
MS Bin Code	AD056
Default Selling Unit	EA
UNSPSC	41111621
Accuracy	?±0.001 in./0.02mm ", mm
Graduations	Fractional/Inch/Metric
Length	6"
Size	6"
Battery Type	1.5V SR44 (Included)
Features	Heavy Duty Housing
Measuring Range	0-153, 0-6 ", mm
Resolution	1/64 in./0.0005 in./0.01mm ", mm
Range	0-6"
Measurement	inch, metric, fractional

General Tools & Instruments - 147 - Documents and Downloads

General Tools & Instruments 147 Additional Specification Sheet	Click to View
General Tools & Instruments 147 Brochure	Click to View
General Tools & Instruments 147 Catalog Pages	Click to View
General Tools & Instruments 147 Installation Instructions	Click to View
