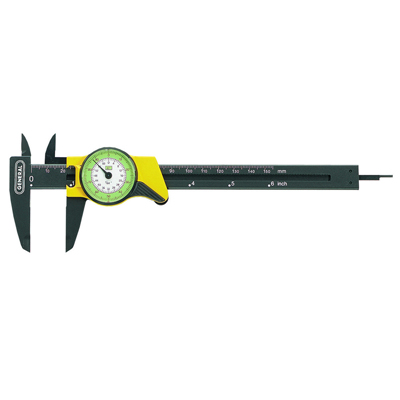

General Tools & Instruments 142 | Caliper Dial Plastic Direct Reading Inch

The #142 6 In. Plastic Dial Caliper with Inches Readout can make inside, outside, depth and step measurements in inches or millimeters.

The General Tools Plastic Dial Calipers offer precision measurements at affordable prices, making them a great choice for hobbyists and do-it-yourselfers. This inch-reading caliper has a fiberglass-reinforced plastic body which allows for accurate reading of inside, outside, depth and step measurements. The easy-to-read dial is color coded to highlight graduations in both .01" and 1/64", and features a no-glare lens cover. In addition, the Plastic Dial Caliper is marked with inch and millimeter graduations on the bar scale and a fractional conversion table on the reverse side.

General Tools & Instruments - 142 - Features

• Inch-reading, direct dial caliper
• For inside, outside, step and depth measurements
• Dial is color coded to deliver both .01" and 1/64" graduations
• Bar scale is graduated in inches and millimeters
• Easy-to-read dial with adjustable bezel and no-glare lens
• Extendable depth gage for use in slots and small holes
• Free-wheeling friction roller advances and retracts slide
• Fractional conversion table printed on reverse side

General Tools & Instruments - 142 - Specifications

Order Part Number	GN142
Item Description	Caliper Dial Plastic Direct Reading Inch
Product Group Id	GN01
Country of Origin	CH
Harmonization Code	-
MS Bin Code	AD057
Default Selling Unit	EA
Graduations	0.01, 1/64 "
Length	6 "
Measuring Range	0-6 "
