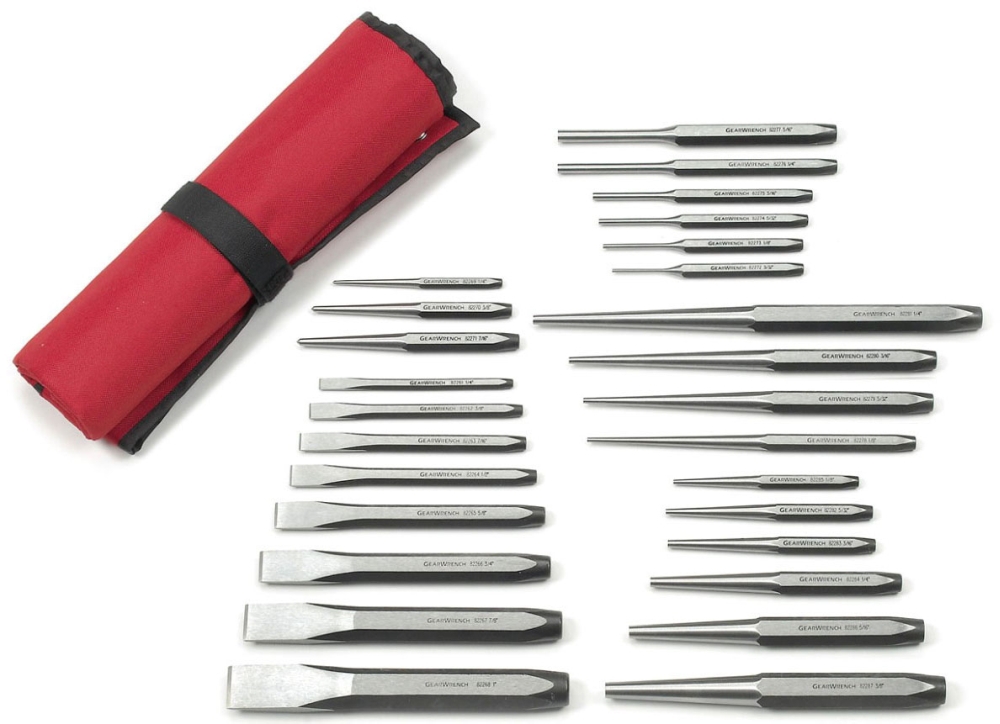

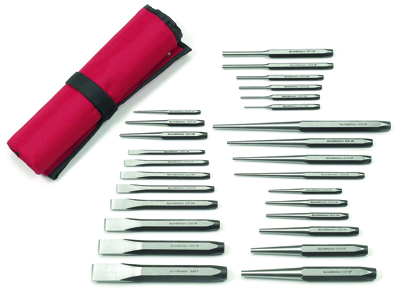

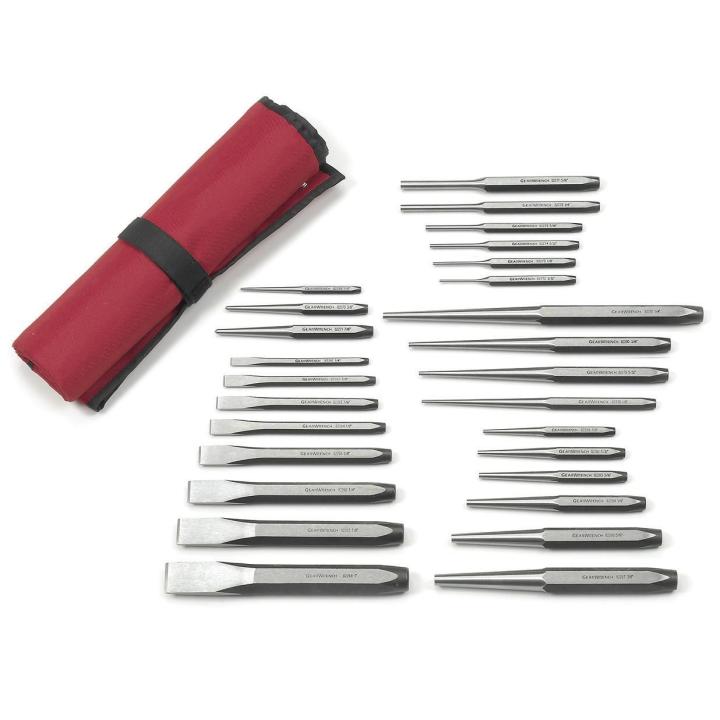

Gearwrench Tools 82306 | 27 Piece Punch and Chisel Set

The Gearwrench 27-piece punch and chisel set includes: 8 cold chisels, 3 center punches, 6 pin punches, 4 long taper (drift) punches, 6 starter punches, and a cloth tool roll for storage. Use these cold chisels for cutting metal rivets, bolts, and nuts. Use the pin punch to drive out pins and rivets during final removal. The center punch is used for marking center lines, and pilot drill locations, while long taper punches are used to install and remove pins and shafts and to align holes. Use starter punches for both starting and installing pins and rivets.

Gearwrench Tools - 82306 - Features

• Precision hardened chisels for cutting metal rivets, bolts, and nuts
• Pin punches for driving out pins and rivets during final removal
• Center punches for marking center lines or pilot drill locations
• Long taper punch lets you install or remove pins and shafts, and aligns holes with ease
• Starter punches for both starting and installing pins or rivets
• Includes tool roll for storage and organization
• Precision hardened chisels for cutting metal rivets, bolts, and nuts
• Pin punches for driving out pins and rivets during final removal
• Center punches for marking center lines or pilot drill locations
• Long taper punch lets you install or remove pins and shafts, and aligns holes with ease
• Starter punches for both starting and installing pins or rivets
• Tool roll for storage and organization

Gearwrench Tools - 82306 - Additional Information

• Filter Rating 5 Micron
• Air Consumption 80 CFM
• Kit Contents (1) Mounting Bracket and (1) Regulator Gauge
• Used On Air Control Unit

Gearwrench Tools - 82306 - Product Categories

• Hand Tools
• Striking & Struck

Gearwrench Tools - 82306 - Overview

• Punch and Chisel Set
• Kit Content (1) 1/4 Inch x 4-3/4 Inch, (1) 3/8 Inch x 5 Inch, (1) 7/16 Inch x 5-1/2 Inch, (1) 1/2 Inch x 6 Inch, (1) 5/8 Inch x 6-1/2 Inch, (1) 3/4 Inch x 7 Inch, (1) 7/8 Inch x 7-1/2 Inch, (1) 1 Inch x 8 Inch Cold Chisel, (1) 15/16 Inch x 4-1/4 Inch, (1) 5/32 Inch x 5 Inch, (1) 1/4 Inch x 5-1/2 Inch Center Punch, (1) 3/32 Inch x 4-3/4 Inch, (1) 1/8 Inch x 5 Inch, (1) 5/32 Inch x 5-1/4 Inch, (1) 3/16 Inch x 5-1/2 Inch, (1) 1/4 Inch x 7 Inch, (1) 5/16 Inch x 7 Inch Pin Punch, (1) 1/8 Inch x 8 Inch, (1) 5/32 Inch x 8-1/2 Inch, (1) 3/16 Inch x 9 Inch, (1) 1/4 Inch x 11 Inch Long Taper Punch, (1) 5/32 Inch x 5 Inch, (1) 3/16 Inch x 5 Inch, (1) 1/4 Inch x 6 Inch, (1) 1/8 Inch x 4-1/2 Inch, (1) 5/16 Inch x 7 Inch, (1) 3/8 Inch x 8 Inch Starter Punch
• Number of Pieces 27
• Packaging Type Tool Roll
• Weight 9.29 Pound
• Filter Rating 5 Micron
• Air Consumption 80 CFM
• Kit Contents (1) Mounting Bracket and (1) Regulator Gauge
• Used On Air Control Unit

Gearwrench Tools - 82306 - Specifications

Prop 65 :	WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Size :	Center Punches: 15/16 in x 4-1/4 in 5/32 in x 5 in 1/4 in x 5-1/2 in / Long Taper Punches: 1/8 in x 8 in 5/32 in x 8-1/2 in 3/16 in x 9 in 1/4 in x 11 in / Pin Punches: 3/32 in x 4-3/4 in 1/8 in x 5 in 5/32 in x 5-1/4 in / 3/16 in x 5-1/2 in 1/4 in x 7 in 5/16 in x 7 in / Starter Punches: 5/32 in x 5 in 3/16 in x 5 in 1/4 in x 6 in 1/8 in x 4-1/2 in / 5/16 in x 7 in 3/8 in x 8 in / Cold Chisels: 1/4 in x 4-3/4 in 3/8 in x 5 in 7/16 in x 5-1/2 in 1/2 in x 6 in / 5/8 in x 6-1/2 in 3/4 in x 7 in 7/8 in x 7-1/2 in 1 in x 8 in
ANSI Specification :	B107.47M-1998/B107.48M-1998
ASME Specification :	B107.47/B107.48
Packaging :	Bagged
Weight (Catalog) :	9.29
Warranty :	Full Lifetime
Finish :	Phosphate Coated
Set Size Range Min :	3/32 in
UPC :	099575823060
Set Size Range Max :	1 in
Included Storage :	Tool Roll
Set Piece Count :	27
Material :	Alloy Steel
Order Part Number	GWR82306
Item Description	27 Piece Punch and Chisel Set
Manufacturer Long Name	Apex Tool Group, LLC (GearWrench)
Manufacturer Part Number	82306
UPC	099575823060;99575823060
Product Group Id	GWR00
Country of Origin	TW
Harmonization Code	82053030
Assembled Weight (lbs)	0.0
Blade Thickness (in)	.250,.375,.625,.750,.875
California Proposition 65 Warning Required	Yes
Chisel Purpose	Metal Working
Country of Origin	Taiwan
Hardness / Density Rating	0
Internal Supplier Part #	82306
Manufacturer Warranty	Lifetime Warranty for Manufacturing Defects
Package Weight	9.29
Pieces	27.0
Skewed	No
Strike Plate Material	Alloy Steel
Blade Material	Alloy Steel
Blade Widths (in)	.25,.375,.4375,.5,.625,.750,.875,1
Case Included	Yes
Chisel Tip Style	Cold Chisel
Global Trade Item Number (GTIN)	00099575823060
Hollowed Back	No
Internet Product Code (IPC)	D0F911E2F76
Package Contents	8 Chisels, 9 Pin Punches, 4 Taper Punches, 6 Starter Punches
Package Weight (lbs)	9.29
Punches Included	15
Strikable	Yes
UPC	099575823060
Size	5/8 in

Gearwrench Tools - 82306 - Package Information

82261	1/4" x 4-3/4" Cold Chisel
82262	3/8" x 5" Cold Chisel
82263	7/16" x 5-1/2" Cold Chisel
82264	1/2" x 6" Cold Chisel
82265	5/8" x 6-1/2" Cold Chisel
82266	3/4" x 7" Cold Chisel
82267	7/8" x 7-1/2" Cold Chisel
82268	1" x 8" Cold Chisel
82269	1/4" x 4-1/4" Center Punch
82270	3/8" x 5" Center Punch
82271	1/4" x 5-1/2" Center Punch
82272	3/32" x 4-3/4" Pin Punch
82273	1/8" x 5" Pin Punch
82274	5/32" x 5-1/4" Pin Punch
82275	3/16" x 5-1/2" Pin Punch
82276	1/4" x 7" Pin Punch
82277	5/16" x 7" Pin Punch
82278	1/8" x 8" Long Taper Punch
82279	5/32" x 8-1/2" Long Taper Punch
82280	3/16" x 9" Long Taper Punch
82281	1/4" x 11" Long Taper Punch
82282	5/32" x 5" Starter Punch
82283	3/16" x 5" Starter Punch
82284	1/4" x 6" Starter Punch
82285	1/8" x 4-1/2" Starter Punch
82286	5/16" x 7" Starter Punch
82287	3/8" x 8" Starter Punch
Individual Item Weight	9.290 Pound
