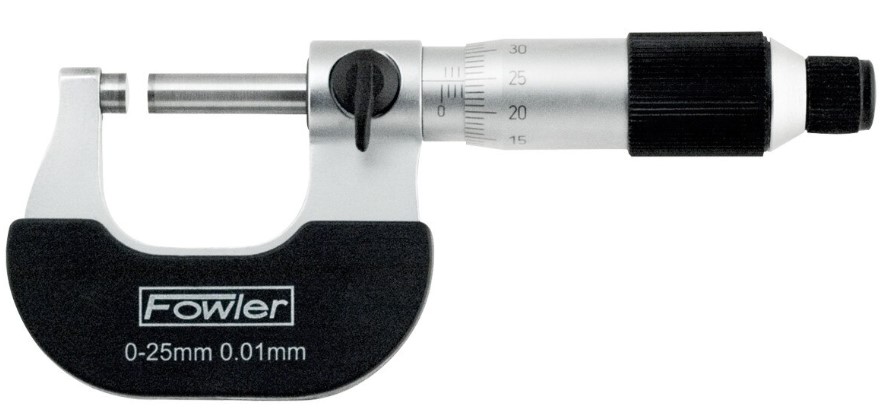

Fred V Fowler 52229209 | Outside 0-25 MM Micrometer

Fowler's Swiss Style micrometers are made exclusively for Fowler. A great valuethey offer the same fine features and quality that you expect from comparable tools at a fraction of the cost.

Fred V Fowler - 52229209 - Features

• Unique Friction Design Allow One Hand Operation
• Swiss Style Design, Balance and Quality
• Friction/ratchet Thimble Assures You of Consistent Reading at All Times
• Barrel, Thimble and Frame are Satin Chrome Finished
• Microfine Graduation Allow Easy Reading
• Measuring Faces are Carbide Tipped
• A Wrench is Included, Permitting Quick and Easy Zero Adjustment on Sleeve
• Fully Insulated Frame Isolates Heat from the Operator's Hand
• One Piece Design, Extremely Well Balanced, Lightweight
• Meets or Exceeds Fed. Specs for Accuracy

Fred V Fowler - 52229209 - Additional Information

• Outside Micrometer
• Type 1-Piece, Swiss Style, Lightweight, Unique Friction
• Thimble Type Friction/Ratchet
• Minimum Measuring Size 0 Millimeter
• Maximum Measuring Size 25 Millimeter
• Graduation 0.01 Millimeter
• Accuracy +/- 0.004 Millimeter
• Material Carbide Tipped
• Spindle Diameter 0.256 Inch/6.5 Millimeter
• Finish Chrome (Barrel, Thimble and Frame)
• Flatness 0.00003 Inch
• Parallelism 0.00005 Inch
• Includes Wrench, Case

Fred V Fowler - 52229209 - Specifications

Order Part Number	FW52229209
Item Description
Manufacturer Long Name	Fowler High Precision, Inc.
Manufacturer Part Number	52-229-209-0
Product Group Id	FW00
MS Bin Code	DEFAULT
Default Selling Unit	EA
