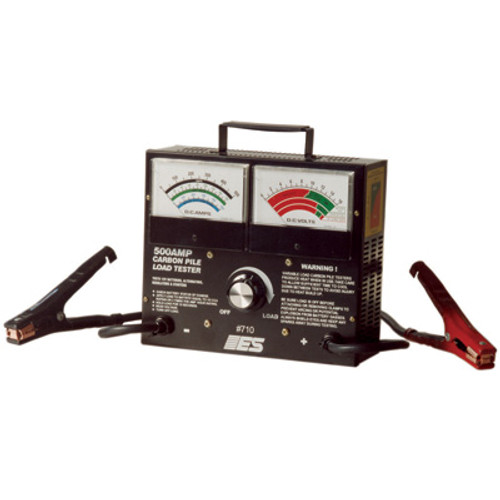

Electronic Specialties Inc 710 | 500A Carbon Pile Load Tester

Carbon Pile Load Tester - 500 Amp

Electronic Specialties Inc - 710 - Features

• The 710 will perform variable load testing on 12 volt batteries rated as high as 1000 Cold Cranking Amps
• Use this battery tester to simulate actual cranking loads. Also tests alternator charging voltage and relative starter current draw
• The 710 features large dual meters to display the battery voltage and load current simultaneously, during the test
• Meters are color coded for simple pass or fail diagnostics
• Includes temperature compensation chart
• A great tool for simulating actual cranking loads. 500 Amp adjustable load carbon pile. Tests 12 volt batteries rated as high as 1000 CCA or 160 Amp hour. Large dual meters display battery voltage and load current simultaneously. Also test alternators, regulators and starters.
• Unit features 500 Amp adjustable load carbon pile.
• Great tool for simulating actual cranking loads.
• Tests 12V batteries rated up to 1000 CCA or 160 Ah.
• Large dual meters display voltage and load current.
• Heavy duty clamps and solid copper stand cables.

Electronic Specialties Inc - 710 - Overview

• The 710 will perform variable load testing on 12 volt batteries rated as high as 1000 Cold Cranking Amps. Use this battery tester to simulate actual cranking loads. Also tests alternator charging voltage and relative starter current draw. The 710 features large dual meters to display the battery voltage and load current simultaneously, during the test.

Electronic Specialties Inc - 710 - Additional Information

• Used to Test 12 Volt Battery Variable Load Testing, 500 Amp Adjustable Load Carbon Pile, 1000 Cold Cranking Amp or 160 Amp Hour Battery, 15 Second Test with Audible Tone, Alternator, Regulator and Starter, 500 Amp Side Terminal Clamp and Heavy Duty Stranded Copper Cable
• Includes Temperature Compensation Chart

Electronic Specialties Inc - 710 - Specifications

Order Part Number	ES710
Item Description	500A Carbon Pile Load Tester
Manufacturer Long Name	Electronic Specialties, Inc.
Manufacturer Part Number	710
Product Group Id	ES00
Country of Origin	CN
Harmonization Code	90303304
UNSPSC	26111719

Electronic Specialties Inc - 710 - Documents and Downloads

Electronic Specialties Inc 710 Catalog Pages

Click to View
