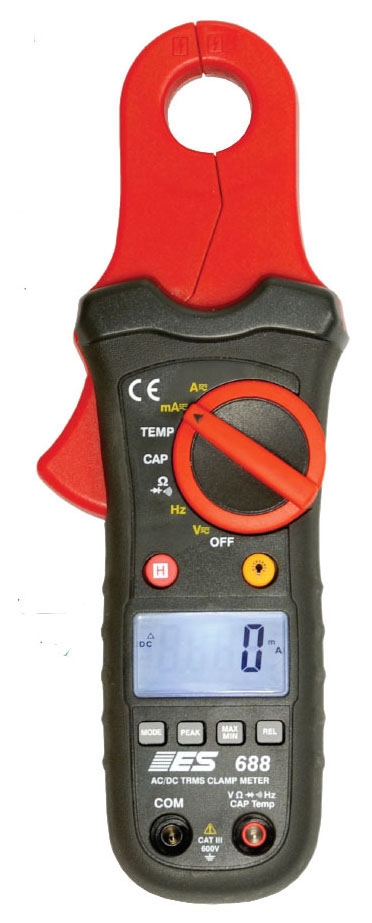

Electronic Specialties Inc 688 | Premium Low Current Clamp Meter

True RMS Clamp Meter capable of reading down to 1 mA. Larger .75" opening can clamp over bigger ground cables and some multiple ground cable systems. 1 mA low reading resolution makes this instrument ideal for diagnosing battery and parasitic drains. Unit also features improved zero drift and stability along with True RMS accuracy. Many other advanced DMM functions as well. This was designed for you, the technician. Includes test leads, temperature probe, instructions, battery and zippered carrying case.

Electronic Specialties Inc - 688 - Features

• Larger 19 Millimeter clamp size can clamp over larger ground cables and some multi ground cable systems
• TRUE RMS accuracy
• Greatly improved ZERO function
• Accurate measurements down to 1 Milliamp
• 5000 count backlit LCD Display with analog bar graph
• Peak MIN/MAX function
• Standard MIN/MAX function
• CATIII 600 Volts safety rating
• Built-in TEMPERATURE - F and C
• Full digital multicenter built-in
• CLAMP METER We've greatly improved the zero drift on the low DC amps function - along with enlarging the clamp size to accommodate larger ground cables. The significant amount of feedback from our end user customers has contributed greatly in building this premium low current clamp meter. These features will be unmatched. Great tool for parasitic drain testing.
• Features Larger 19 mm (.75") clamp size - can clamp over larger ground cables and some multi ground cable systems TRUE RMS accuarcy Greatly improved ZERO function Accurate measurments down to 1 mA (.001A) 5,000 count backlit LCD Display w/analog bargraph Peak MIN/MAX function Standard MIN/MAX function CATIII 600 Volts safety rating Built-in TEMPERATURE - F&C Full digital multimeter built-in
• Accurate measurements down to 1 mA (.001A) - 80A maximum reading DC/AC
• Larger clamp size of .75" (19 millimeter) and improved zero drift stability - Electronic Specialties enlarged the clamp opening as much as possible while still maintaining 1 mA resolution
• Minimum/Maximum and Peak Minimum/Maximum functions, Data Hold, Relative Zero - Full DMM built-in
• Built-in Temperature F & C - Temp probe included
• Measures DC/AC Amps, DC/AC Volts, Resistance, Capacitance, Frequency (Hz) and Temperature
• Item Weight: 1 pounds

Electronic Specialties Inc - 688 - Overview

• CLAMP METER We’ve greatly improved the zero drift on the low DC amps function - along with enlarging the clamp size to accomodate larger ground cables. The significant amount of feedback from our end user customers has contributed greatly in building this premium low current clamp meter. These features will be unmatched. Great tool for parasitic drain testing.

Electronic Specialties Inc - 688 - Additional Information

• Temperature -4 to 1400 Deg F
• Continuity Type Audible Beep
• Includes Carrying Case

Electronic Specialties Inc - 688 - Specifications

Order Part Number	ES688
Item Description	Premium Low Current Clamp Meter
Manufacturer Long Name	Electronic Specialties, Inc.
Manufacturer Part Number	688
Product Group Id	ES00
Country of Origin	CN
Harmonization Code	90303100
UNSPSC	41113678
