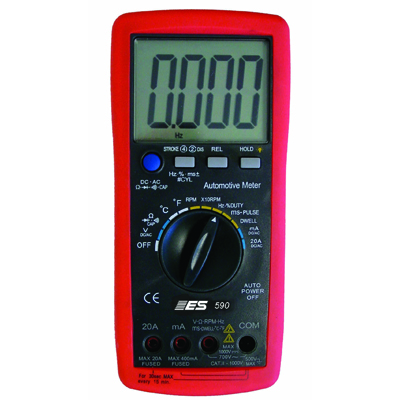

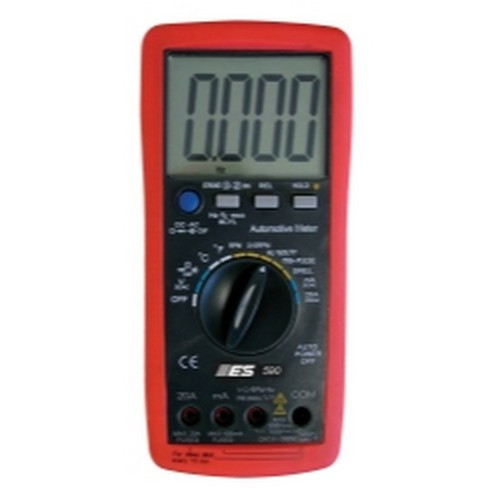

Electronic Specialties Inc 590 | Professional Automotive Meter

Great DMM for the professional technician. The 590 can even test the pulse width of fuel injectors. Unit is completely auto-ranging and features a huge 2 inch high LCD display with backlighting. Modern design, the protective boot is built-in.

Electronic Specialties Inc - 590 - Features

• Another good choice for the professional automotive technician, the 590 puts the right capabilities in your hands
• For example, the 590 can test the on-time of fuel injectors using the Ms pulse width test function
• This DMM is completely auto-ranging, making it an easy and efficient tool to use

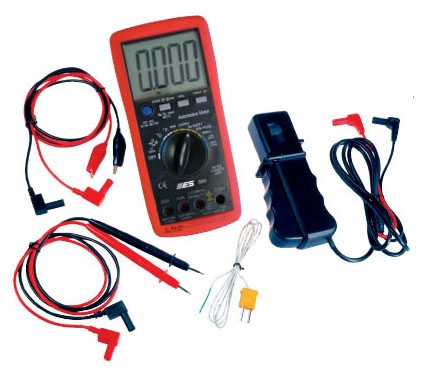

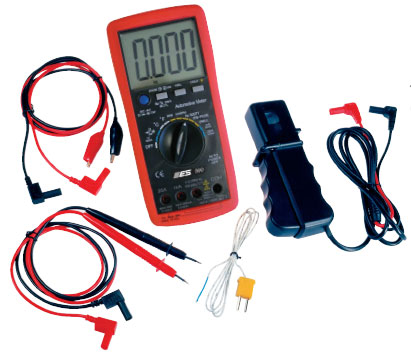

• The 590 includes two sets of test leads, RPM pick-up, temperature probe, 9 volt battery, instructions manual and carrying case
• Inductive RPM pick-up features a five position, adjustable sensitivity switch
• 48 Test Ranges, 15 Test Functions
• Auto-ranging
• Modern design, protective rubber boot and case are all one piece
• Huge 2 Inch high LCD display with backlighting, easy to see digits
• Ms Pulse Width for fuel injector on-time
• Desirable 20 Amp fused test range
• Auto Power-Off, saves batteries
• Relative change function, Data Hold
• Built-in Temperature readings
• Includes zippered storage case
• 18 Test Functions, 54 Test Ranges
• Dual fuse overload protection
• Milliseconds pulse width - measures fuel injector on-time
• Measures Temp in both F and C, probe included
• Carrying case, two sets of test leads, temp probe, RPM pick-up included
• Great DMM for the professional technician. The 590 can even test the pulse width of fuel injectors. Unit is completely auto-ranging and features a huge 2 inch high LCD display with backlighting. Modern design, the protective boot is built-in. Auto Power-Off and Data Hold. RPM for both Conventional and DIS systems. Desireable 20 Amp test range
• Completely auto-ranging with automotive functions.
• Auto Power-Off and Data Hold.
• Milliseconds pulse width - measures fuel injector on-time.
• Large 2 inch high LCD display with bright white led backlighting.
• 18 test functions, 54 test Ranges.
• Measures Temp in both F and C, probe included.
• RPM for both Conventional & DIS systems.
• Dual fuse overload protection.
• Desireable 20 Amp test range.
• Carrying case, two sets of test leads, temp probe, RPM pick-up included.
• DC Volts: 0-400mV, 4V, 400V, 1000V
• AC Volts: 0-4V, 40V, 400V, 700V
• DC Amps: 0-40uA, 400mA, 4A, 20A
• AC Amps: 0-40uA, 400mA, 4A, 20A
• Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
• RPM: 4 0-4,000 RPM, 0-12,000 RPM x 10
• RPM: 2/DIS 0-4,000 RPM, 0-6,000 RPM x 10
• mS PulseWidth: 1 - 10 mS
• Dwell: 4 cyl, 5 cyl, 6 cyl, 8 cyl
• Duty Cycle: 0.1% - 99.9%
• Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
• Frequency: 0-5Hz, 50Hz, 500kHz, 5kHz, 50kHz, 500kHz, 10MHz
• Temp: -20C to 760C, -4F to 1400F
• Continuity: Audible Beep
• Diode: Diode Test

Electronic Specialties Inc - 590 - Overview

• Another good choice for the professional automotive technician, the 590 puts the right cababilies in your hands. For example, the 590 can test the on-time of fuel injectors using the Ms pulse width test function. This DMM is completely auto-ranging, making it an easy and efficient tool to use. The 590 includes two sets of test leads, RPM pick-up, temperature probe, 9 volt battery, instructions manual and carrying case. Inductive RPM pick-up features a five position, adjustable sensitivity switch.
• TEST RANGES
• DC Volts: 0-400mV, 4V, 400V, 1000V
• AC Volts: 0-4V, 40V, 400V, 700V
• DC Amps: 0-40uA, 400mA, 4A, 20A
• AC Amps: 0-40uA, 400mA, 4A, 20A
• Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
• RPM: 4 0-4,000 RPM, 0-12,000 RPM x 10
• RPM: 2/DIS 0-4,000 RPM, 0-6,000 RPM x 10
• mS PulseWidth: 1 - 10 mS
• Dwell: 4 cyl, 5 cyl, 6 cyl, 8 cyl
• Duty Cycle: 0.1% - 99.9%
• Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
• Frequency: 0-5Hz, 50Hz, 500kHz, 5kHz, 50kHz, 500kHz, 10MHz
• Temp: -20C to 760C, -4F to 1400F
• Continuity: Audible Beep
• Diode: Diode Test

Electronic Specialties Inc - 590 - Additional Information

• Duty Cycle 0.1 to 99.9 Percent
• Pulse Width 1 to 10 Millisecond
• Speed Rating 4 0 to 4000 RPM, 0 to 12000 RPM x 10, 2/DIS 0 to 4000 RPM, 0 to 6000 RPM x 10
• Dwell 4 Cylinder, 5 Cylinder, 6 Cylinder, 8 Cylinder
• Continuity Audible Beep

Electronic Specialties Inc - 590 - Specifications

Order Part Number	ES590
Item Description	Professional Automotive Meter
Manufacturer Long Name	Electronic Specialties, Inc.
Manufacturer Part Number	590
Product Group Id	ES00
Country of Origin	CN
Harmonization Code	90303100
UNSPSC	41113630

Electronic Specialties Inc - 590 - Documents and Downloads

Electronic Specialties Inc 590 Catalog Pages
