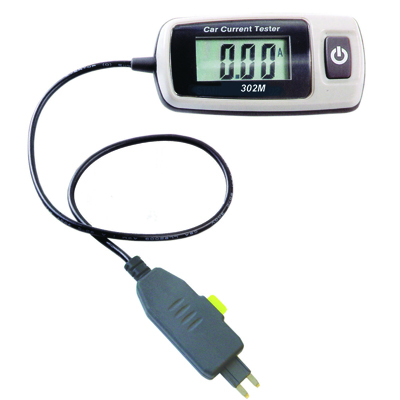

Electronic Specialties Inc 302M | Fuse Buddy Tester - Mini Fuse

Circuit testing made EASY! The Fuse Buddy Tester connects directly into the fuse socket, measuring from 0 to 20 Amps. No more clumsy connections at the fuse box, adapter fitting plugs directly into fuse socket and stays put. Removed fuse is plugged into the Fuse Buddy maintaining circuit protection. Great for diagnostic troubleshooting and parasitic drains.

Electronic Specialties Inc - 302M - Features

• Clever design allows for easy connection into fuse sockets

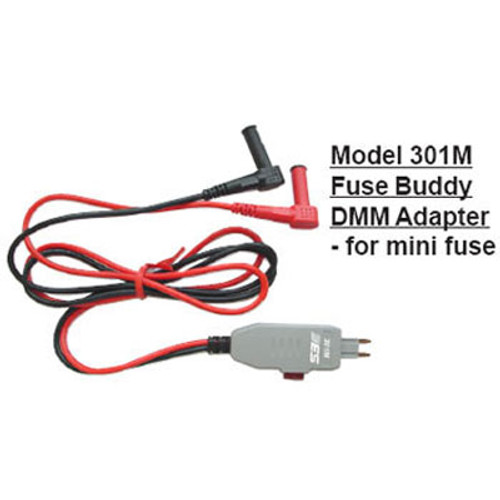

• Four models, Fuse Buddy Tester and Fuse Buddy DMM Adapter, for both Mini and ATC fuses
• Fuse Buddy ends are molded into the shape of the fuse itself
• During testing the fuse is removed and replaced into the Fuse Buddy
• This way, the circuit being tested maintains fuse protection
• The Fuse Buddy stays put and won’t fall out of the socket, like test probes do
• Can even be used to test for parasitic drains
• Designed specifically for circuit testing
• Unique design incorporates removed fuse to maintain circuit protection
• Test range 0 to 20 amp
• Designed specifically for circuit testing, Fuse Buddy plugs right into fuse socket - easy connection for circuit current testing.
• Fuse Buddy will measure circuit amperage from 0 to 20 Amps - time saving design.
• Unique design incorporates removed fuse to maintain circuit protection.
• Test range 0 to 20 Amps
• .01 Amp resolution.

Electronic Specialties Inc - 302M - Additional Information

• Used to Test Circuit Current from 0 to 20 Amp/48 Volt, Parasitic Drain
• Resolution 0.01 Amp
• Accuracy +/- 2 Percent

Electronic Specialties Inc - 302M - Specifications

Order Part Number	ES302M
Item Description	Fuse Buddy Tester - Mini Fuse
Manufacturer Long Name	Electronic Specialties, Inc.
Manufacturer Part Number	302M
Product Group Id	ES00
Country of Origin	CN
Harmonization Code	90309088
UNSPSC	25191800

Electronic Specialties Inc - 302M - Documents and Downloads

Electronic Specialties Inc 302M Catalog Pages	Click to View
Electronic Specialties Inc 302M Other Document 1	Click to View
