Electronic Specialties Inc 193 | 12 / 24 Volt Diagnostic Relay Buddy Pro Test Kit
Electronic Specialties Inc 193 | 12 / 24 Volt Diagnostic Relay Buddy Pro Test Kit
Accept Credit Cards
Official PayPal Seal

Electronic Specialties Inc 193 | 12 / 24 Volt Diagnostic Relay Buddy Pro Test Kit

https://www.autotoolworld.com/assets/images/Electronic Specialties Inc_150px.jpg
Availability: In Stock
Part Number: ES193
0 Review(s)
Write a Review
$158.19
Retail Price:$170.58
Your Savings:$12.39(7%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Electronic Specialties Inc 193 | 12 / 24 Volt Diagnostic Relay Buddy Pro Test Kit

  • Diagnostic Relay Buddy Pro Test Kit
  • Item Diagnostic Relay Buddy Pro Test Kit
  • Used to Tests 12 and 24 Volt Relay
  • Diagnostic Trouble Code (1) Green Light (Relay is Good), (2) Red Light (Relay is Bad), 3 Possible Trouble
  • Includes (5) New Relay Adapter and Blow Mold Case



    • https://www.autotoolworld.com/assets/icons/features.jpg

    Electronic Specialties Inc - 193 - Features

    • Relay Buddy 12/24 Pro Test Kit tests five different relays
    • Relay Buddy is a quick go / no-go tester for the most common automotive relays and this new version tests both 12 and 24 volt relays
    • If the relay fails the test, 3 different trouble codes will advise you of the possible causes for the failed relay
    • The red LED will flash once, twice or three times to indicate the problem
    • Trouble code definitions are printed on the back of the tester for your convenience
    • Relay Buddy 12/24 provides you with an indication of the general health and functioning of the relay switch contacts and coil
    • It will check the control side of the relay by applying a signal to the relay coil while it checks for proper functioning of the relay contacts
    • Relay Buddy operates the relay several times during each test session as it watches for consistency in every cycle
    • Relay Buddy will fail the relay and light the RED LED if any one of the cycles proves unsuccessful during the test session
    • Relay Buddy 12/24 is a quick go / no-go tester for the most common automotive relays. This new version Relay Buddy tests both 12 and 24 volt relays. If the relay fails the test, 3 different trouble codes will advise you of the possible causes for the failed relay. In kit form, 193 Relay Buddy 12/24 tests 5 different relay types. Relay Buddy 12/24 provides you with an indication of the general health and functioning of the relay switch contacts and coil. It will check the control side of the relay by applying a signal to the relay coil while it checks for proper functioning of the relay contacts. Relay Buddy operates the relay several times during each test session as it watches for consistency in every cycle. Relay Buddy will fail the relay and light the RED LED if any one of the cycles proves unsuccessful during the test session. Tests both 12V and 24V relays! 3 diagnostic trouble codes help define the cause of the bad relay! Available as stand alone tester 192 and in kit form 193 with adapters for expanded testing Includes 5 Relay Adapters and blow mold case! 3 adapters for testing shielded relays 2 adapters for testing new relay types commonly used on fuel pumps and other powered devices
    • Tests 5 different relays, both 12V and 24V and 3 diagnostic trouble codes help define the cause of the bad relay

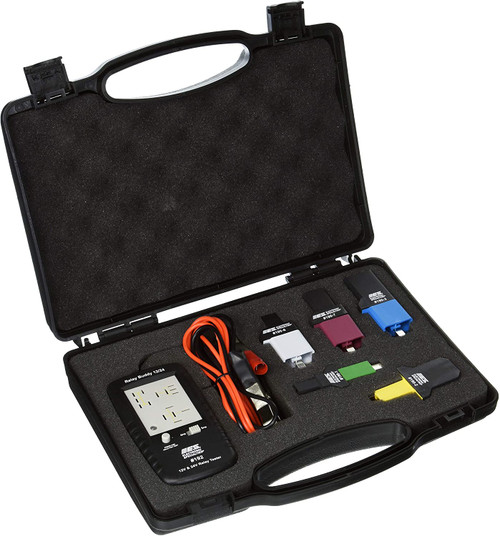

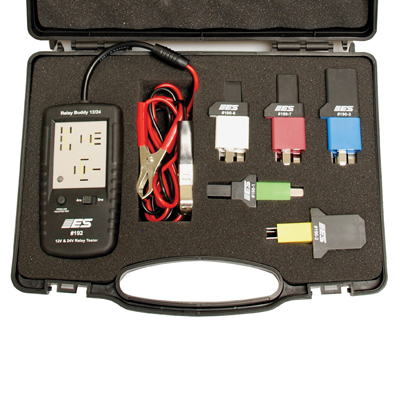

    • Kit Includes 5 Relay Adapters and blow mold case
    • Quick off-the-car relay tester
    • Checks relay coil and switch contacts
    • Fails bad relays - Good/Bad indication, green light for PASS, red light for FAIL with flashing trouble code
    • Tests 5 different relays, both 12V and 24V



    https://www.autotoolworld.com/assets/icons/overview.jpg

    Electronic Specialties Inc - 193 - Overview

    • Tests 5 different relays, both 12V and 24V!
    • 3 diagnostic trouble codes help define the cause of the bad relay!
    • 193 Kit Includes 5 Relay Adapters and blow mold case!
    • Quick off-the-car relay tester.
    • Checks relay coil & switch contacts
    • Fails bad relays - Good/Bad indication, green light for PASS, red light for FAIL with flashing trouble code
    • Relay Buddy 12/24 Pro Test Kit tests five different relays. Relay Buddy is a quick go / no-go tester for the most common automotive relays and this new version tests both 12 and 24 volt relays. . If the relay fails the test, 3 different trouble codes will advise you of the possible causes for the failed relay. The red LED will flash once, twice or three times to indicate the problem. Trouble code definitions are printed on the back of the tester for your convenience.
    • Relay Buddy 12/24 provides you with an indication of the general health and functioning of the relay switch contacts and coil. It will check the control side of the relay by applying a signal to the relay coil while it checks for proper functioning of the relay contacts. Relay Buddy operates the relay several times during each test session as it watches for consistency in every cycle. Relay Buddy will fail the relay and light the RED LED if any one of the cycles proves unsuccessful during the test session.
    • Specifications
    • Tests 12 and 24 volt relays
    • Settable to 4 and 5 pin relay
    • Uses vehicle battery for power
    • 3 Diagnostic Trouble Codes - Green Light if relay is good - Red Light if relay is bad witch contacts are loaded to detect excessive resistance



    https://www.autotoolworld.com/assets/icons/information.jpg

    Electronic Specialties Inc - 193 - Additional Information

    • Used to Tests 12 and 24 Volt Relay
    • Diagnostic Trouble Code (1) Green Light (Relay is Good), (2) Red Light (Relay is Bad), 3 Possible Trouble
    • Includes (5) New Relay Adapter and Blow Mold Case



    https://www.autotoolworld.com/assets/icons/specs.jpg

    Electronic Specialties Inc - 193 - Specifications

    Order Part NumberES193
    Item Description12 / 24 Volt Diagnostic Relay Buddy Pro Test Kit
    Manufacturer Long NameElectronic Specialties, Inc.
    Manufacturer Part Number193
    Product Group IdES00
    Default Selling UnitEA
    UNSPSC25191800



    https://www.autotoolworld.com/assets/icons/pdf.jpg

    Electronic Specialties Inc - 193 - Documents and Downloads

    Electronic Specialties Inc 193 Catalog PagesClick to View
    Electronic Specialties Inc 193 Other Document 1Click to View
