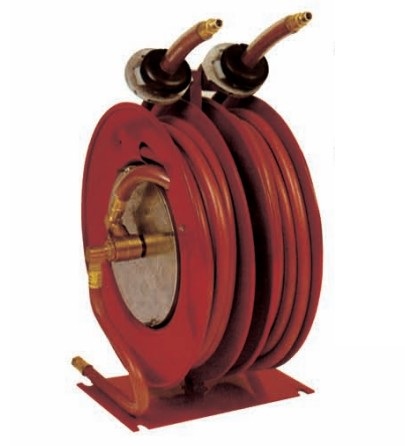

Duro 1501 | Double Reels, 1/4" x 20' & 1/4" x 20' Open Type, Low Pressure Air/Water

Standard Duty 1500 Shop & Automative Reels for Ceiling, Wall or Floor Mount 300 PSI.

Duro - 1501 - Features

• Sealed and lubricated motor springs assure longer life. Centrifugally aligned, with built in de-clutching device to protect against backlash, avoiding premature spring failure.
• Independent rotating all brass swivel joints, each with four (4) "O" ring seals. Large orifice permits maximum flow.
• Non-sparking positive locking and releasing ratchet, for tension free hose. Heavy self-lubricated bronze thrust type bearing for added life.
• Cast aluminum hose guides with quiet friction free nylon rollers. Adjustable to assure proper alignment with hose.
• Highest quality hose with standard female fittings for installation. One piece adjustable hose ball stop can be secured any place along the hose length.
• Sturdy mounting base with slotted holes for easy installation. Flexible inlet source line makes an easy hook up. Extra large safety axle. Heavy steel reel disc's are beaded for extra rigidity. All materials are protected against rust by heavy powder coat, cadmium plate, heat treated aluminum, bronze, brass or other conversion coatings.

Duro - 1501 - Specifications

Type	Double Reels - Open Type
Hose Length (Each)	20 ft
Dimension A	14 in
Dimension B	17.00 in
Dimension C	12 1/2 in
Dimension D	11.5 in
Dimension E	8 in
Mounting	FloorWall
Color	Red
Thread Size	Standard National Pipe Thread (NPT)
Hose Inside Diameter	1/4 in

Duro - 1501 - Documents and Downloads

Duro Product Catalog

Click to View
