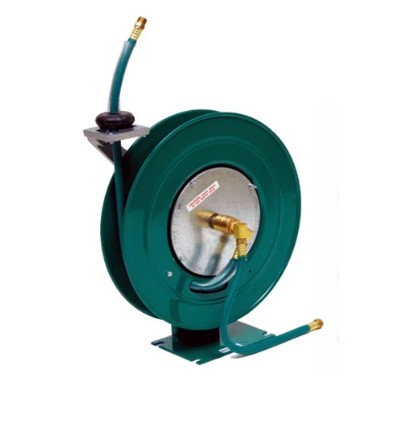

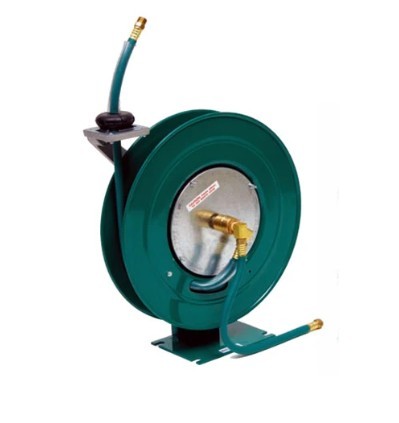

Duro 1430 | 3/8" X 30' Standard Duty Grease Hose Reel

The Duro Reels 1430 3/8" X 30' Standard Duty Grease Hose Reel is a high pressure grease reel that is used for service stations and industrial applications areas where longer hose lengths are required. This outstanding design and built-in flexibility hose reel saves you time and money. It can be relied upon to give you the ultimate service without any maintenance and down time. NOTE: Other Duro Reel sizes for specific space and hose length are available. All Duro Reels are furnished for overhead mounting unless otherwise specified. Standard color is red epoxy coating. All threads are standard N.P.T. to hose sizes unless otherwise specified.

Duro - 1430 - Features

• 3/8" x 30' Hose for ceiling, wall or floor mount
• Hose I.D.: 3/8 inch
• Sealed and lubricated motor springs assure longer life.
• Centrifugally aligned, with built in de-clutching device to protect against backlash, avoiding premature spring failure.
• Independent rotating all brass swivel joints, each with four (4) ""O"" ring seals. Large orifice permits maximum flow.
• Non-sparking positive locking and releasing ratchet, for tension free hose.
• Heavy self-lubricated bronze thrust type bearing for added life.
• Cast aluminum hose guides with quiet friction free nylon rollers. Adjustable to assure proper alignment with hose.
• Highest quality hose with standard female fittings for installation.
