Derale Performance 66458 | Single-Pass Heat Sink Cooler, 12 Inch 13250

Fluid Cooler, Transmission, Heat Sink, Aluminum, Natural, 3 in. x 12 in. x 3 in., Each

Derale Performance - 66458 - Product Categories

• Auto Parts
• Air & Fuel Delivery
• Additional Components

Derale Performance -66458 - Overview

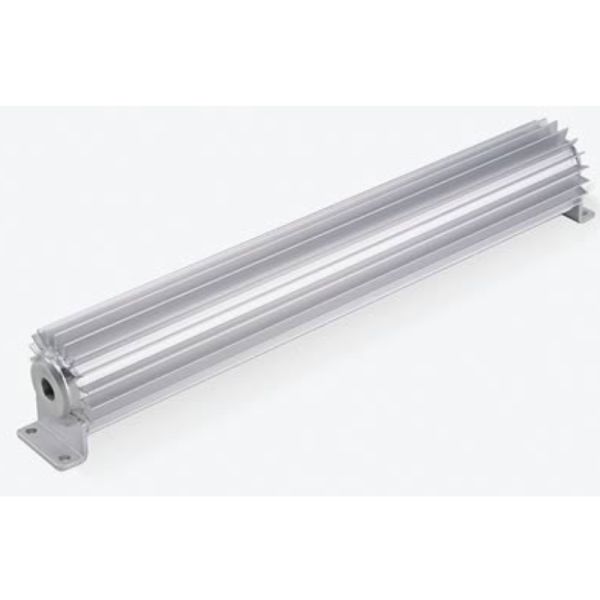

• The internal and external cooling fins in these new Derale heat sink fluid coolers provide maximum cooling efficiency without relying on direct airflow. Their compact diameter means that they can be mounted in a variety of locations, such as on the frame rail next to the transmission, directly under the radiator, under the floorboards, etc. The rugged aluminum extrusion features welded ends for long service life, in even the toughest environments. Derale Performance coolers are offered in several lengths with 3/8 in. inlets.

Derale Performance - 66458 - Specifications

• Fluid Cooler Type: Universal
• Overall Height (in.): 2.19 in.
• Overall Width (in.): 14.25 in.
• Overall Thickness (in.): 3.25
• Cooler Construction: Heat sink
• Fluid Cooler Inlet Size: 3/8 in. NPT
• Fluid Cooler Outlet Size: 3/8 in. NPT
• Inlet Attachment: Female threads
• Outlet Attachment: Female threads
• Cooler Material: Aluminum
• Fan Included: No
• Number of Cooling Rows: 1
• Cooler Color: Natural
• Notes: Includes 3/8 in. hose barb fittings.

Derale Performance - 66458 - General Specifications

Brand Name	Derale Performance
Manufacturer Part Number	66458
Item Description	Single-Pass Heat Sink Cooler, 12 Inch 13250
Net Weight	2.44
Height	18
Width	4
Depth	4

Derale Performance - 66458 - Documents and Downloads

Derale Performance 66458 Instructions

Click to View
