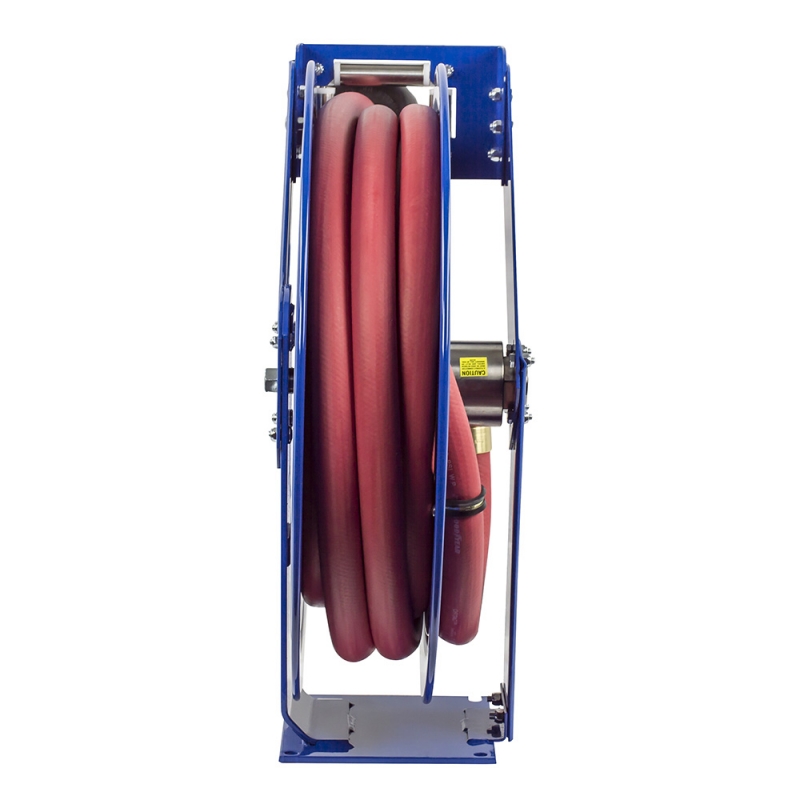

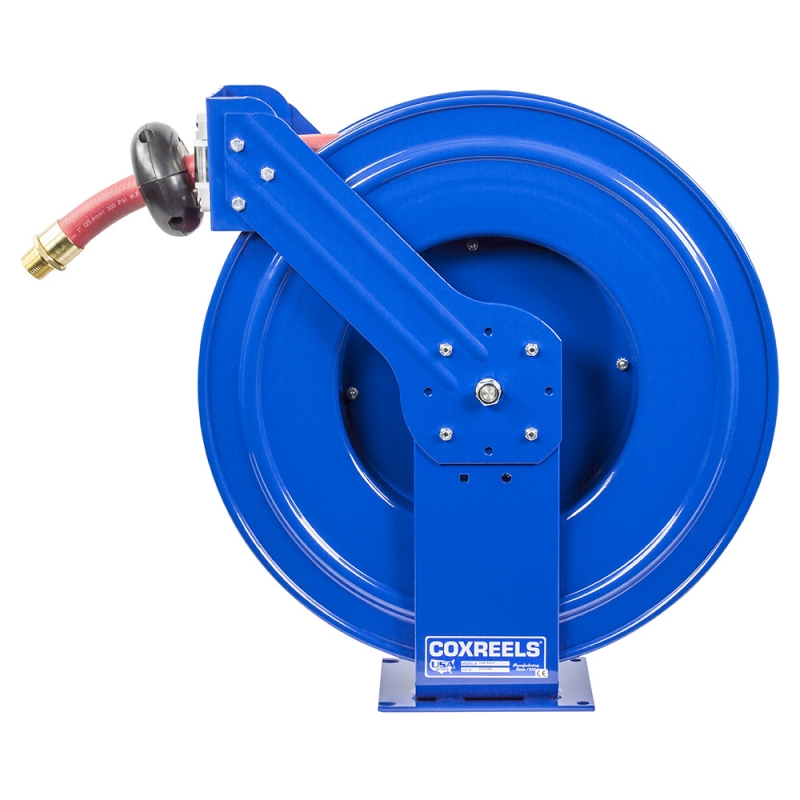

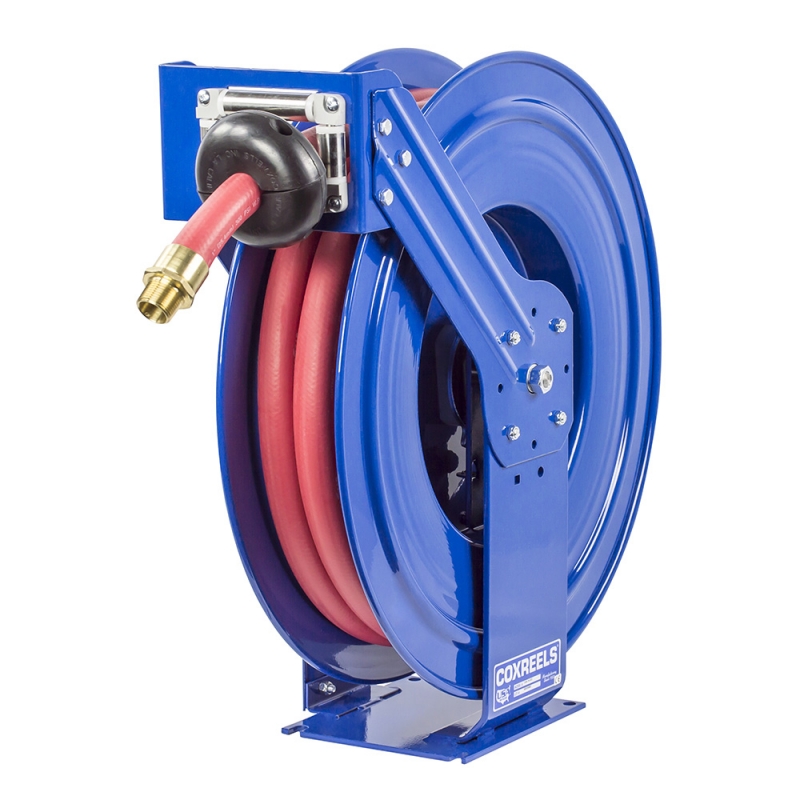

Coxreels TSHF-N-550 | Supreme Duty Spring Rewind Hose Reel For Fuel, 3/4" I.D., 50' Fuel Hose, 300 Psi

Coxreels Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels professional fuel dispensing supreme-duty dual pedestal (T Series) reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

Coxreels - TSHF-N-550 - Features

• Machined from solid brass 90° full-flow NPT swivel inlet for fuel dispensing applications.
• Swivel seals: Nitrile
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation
• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreels - TSHF-N-550 - Specifications

Model	TSHF-N-550
Inside Diameter (I.D)	3/4"
Outside Diameter (O.D)	1 3/16"
Length	50'
Hose	Yes
Max PSI	300
Ship Weight (lbs)	91
Overall Dimensions (W) (H) (L)	9.38"(W) 25.5"(H) 24"(L)
Mounting Pattern (M) (N)	7"(M) 8"(N)
Base (X) (Y)	8"(X) 9"(Y)
