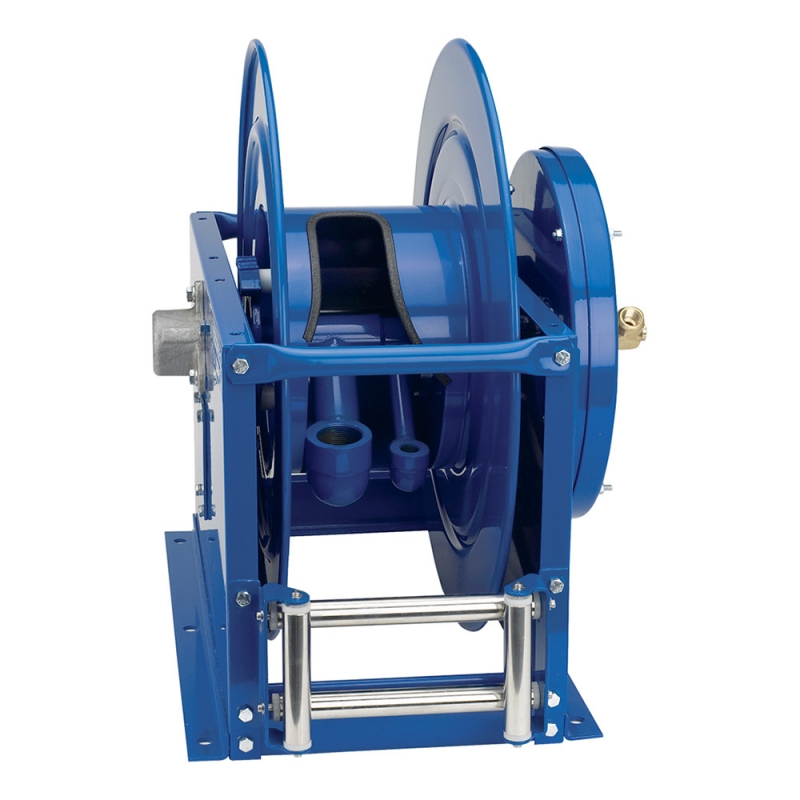

Coxreel V-SLPL-825 | V Series - Spring Driven Specialty Reels

COXREELS V Series spring driven vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models have dual plumbing for vacuum extraction while simultaneously powering pneumatic tools such as grinders and sanders in an enclosed efficient system.

Coxreel - V-SLPL-825 - Design & Structure

• Enclosed factory tuned & matched cartridge-style spring motor.
• Sturdy box-style frame with heavy duty steel cross supports to all four corners for extra rigidity.
• Low profile outlet riser & open drum slot design, provide a non-crimping, flat smooth hose wrap.
• Self-lubricated flange bearings & multi-position lock ratchet.
• Lubricated factory matched cartridge-style spring motor.
• Heavy duty 1" O.D non-corrosive stainless steel rollers.
• Cast iron lock ring with non-sparking bronze pawl.

Coxreel - V-SLPL-825 - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• BOX STYLE FRAME DESIGN - Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
• OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
• STEEL ROLLERS - Heavy duty 1" stainless steel pinch-proof rollers.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet, and top frame cross-brace.

Coxreel - V-SLPL-825 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• V Series

Coxreel - V-SLPL-825 - Dimension Drawing

Click image to enlarge.

Coxreel - V-SLPL-825 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	V-SLPL-825
Item Description	V Series - Spring Driven Specialty Reels

Coxreel - V-SLPL-825 - Dimensions

I.D	1 1/2"
Length	25'
Hose	No
Ship Weight (lbs)	102
Overall Dimensions (W) (H) (L)	17.5"(W) 24.5"(H) 26.38"(L)
Mounting Pattern (M) (N)	14"(M) 22"(N)
Base (X) (Y)	15.38"(X) 25"(Y)
