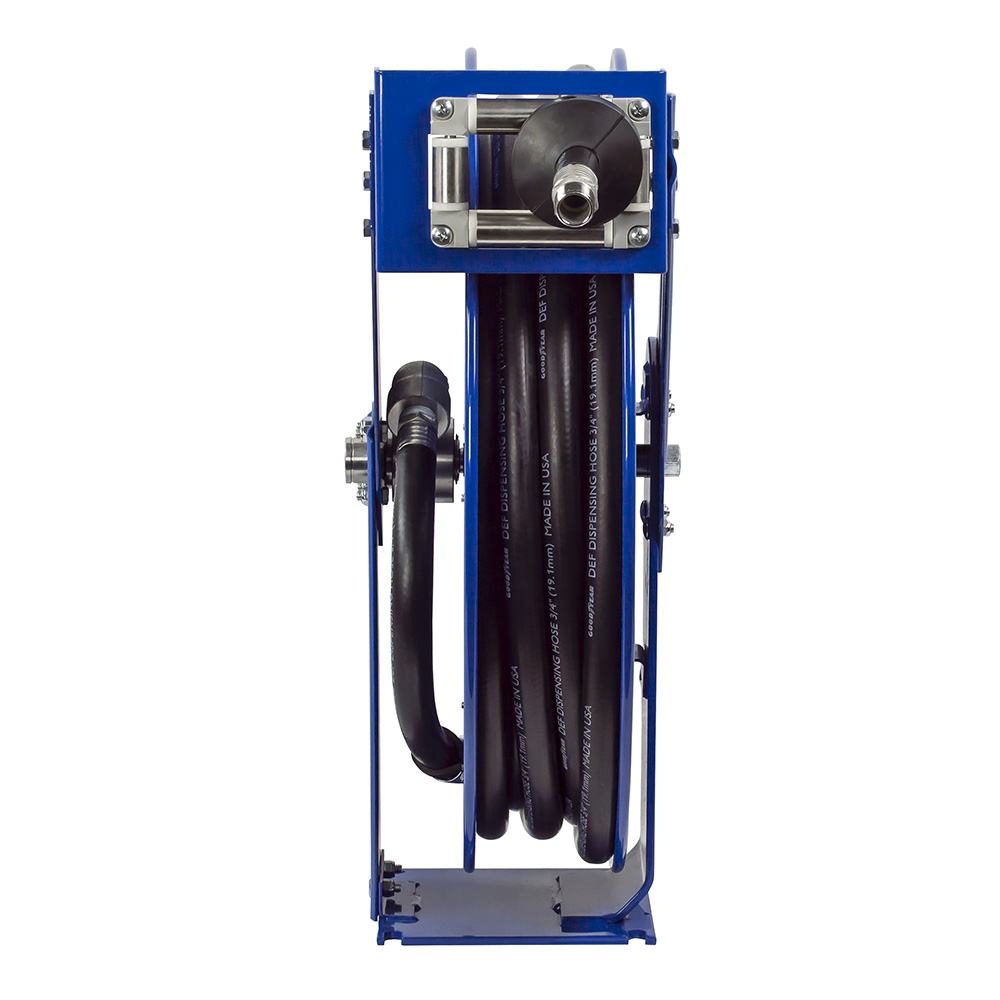

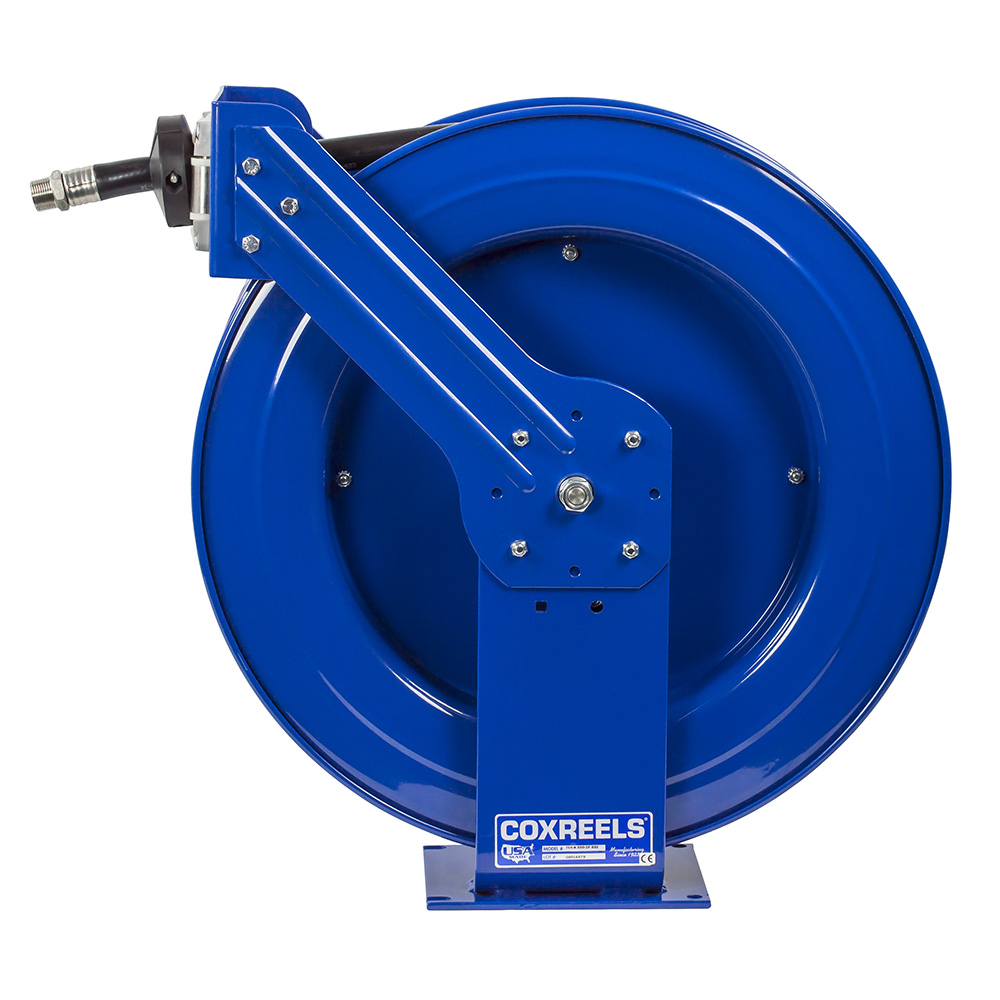

Coxreel TSHL-N-650-BBX | T-DEF Reels - Spring Driven Specialty Reels

COXREELS DEF Series are equipped with a stainless steel external full-flow swivel and chemical resistant Viton seals to provide a safe, reliable Diesel Exhaust Fluid (DEF) dispensing solution. The swivel is easy to access for simple seal maintenance and fast DEF dispenser hose installation. Supreme-duty dual pedestal (T Series) configuration is outfitted with Coxreels’ original Super Hub triple axle support system to increase stability and reduce vibration during operation, making these reels the perfect DEF handling solutions for either stationary or rugged mobile applications.

Coxreel - TSHL-N-650-BBX - Swivel

• Non-corrosive stainless steel 90? full flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
• Swivel seals: Viton

Coxreel - TSHL-N-650-BBX - Design & Structure

• Built for rugged mobile applications
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Stainless Steel rollers on 3/4" & 1" models
• Solid one piece, heavy gauge 1/4" steel base & support posts for maximum strength
• 1" solid steel axle & lubricated precision bearings fornsmooth rotation

Coxreel - TSHL-N-650-BBX - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - TSHL-N-650-BBX - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• SWIVEL - Non-corrosive stainless steel 90? full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub triple axle support system.
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, DEF dispensing hose, and sturdy permanently lubricated precision bearings.

Coxreel - TSHL-N-650-BBX - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• T-DEF Reels

Coxreel - TSHL-N-650-BBX - Dimension Drawing

Click image to enlarge.

Coxreel - TSHL-N-650-BBX - Specifications

Brand Name	Coxreel
Manufacturer Part Number	TSHL-N-650-BBX
Item Description	T-DEF Reels - Spring Driven Specialty Reels

Coxreel - TSHL-N-650-BBX - Dimensions

I.D	1"
O.D	1 3/8"
Length	50'
Hose	No
Max PSI	300
Ship Weight (lbs)	77
Overall Dimensions (W) (H) (L)	12"(W) 25.5"(H) 24"(L)
Mounting Pattern (M) (N)	7"(M) 8"(N)
Base (X) (Y)	8"(X) 9"(Y)

Coxreel - TSHL-N-650-BBX - Videos

Cartridge Style Motor	Click to View
CPC Powder Coat	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Steel Construction	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
