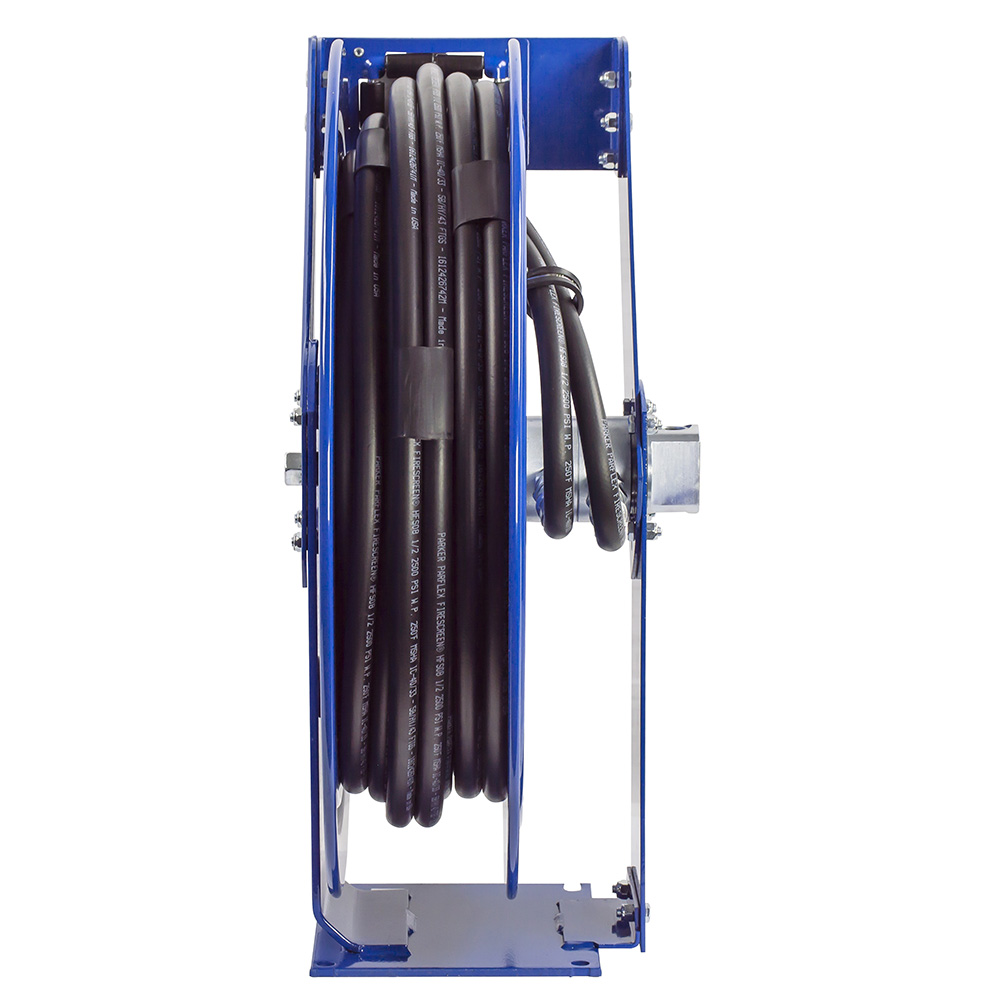

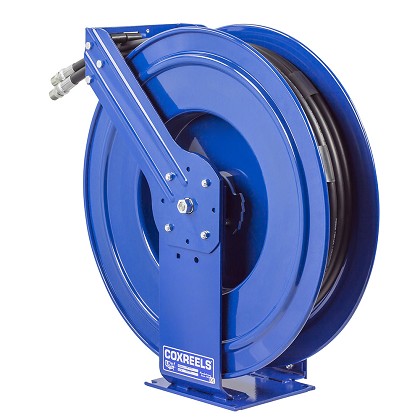

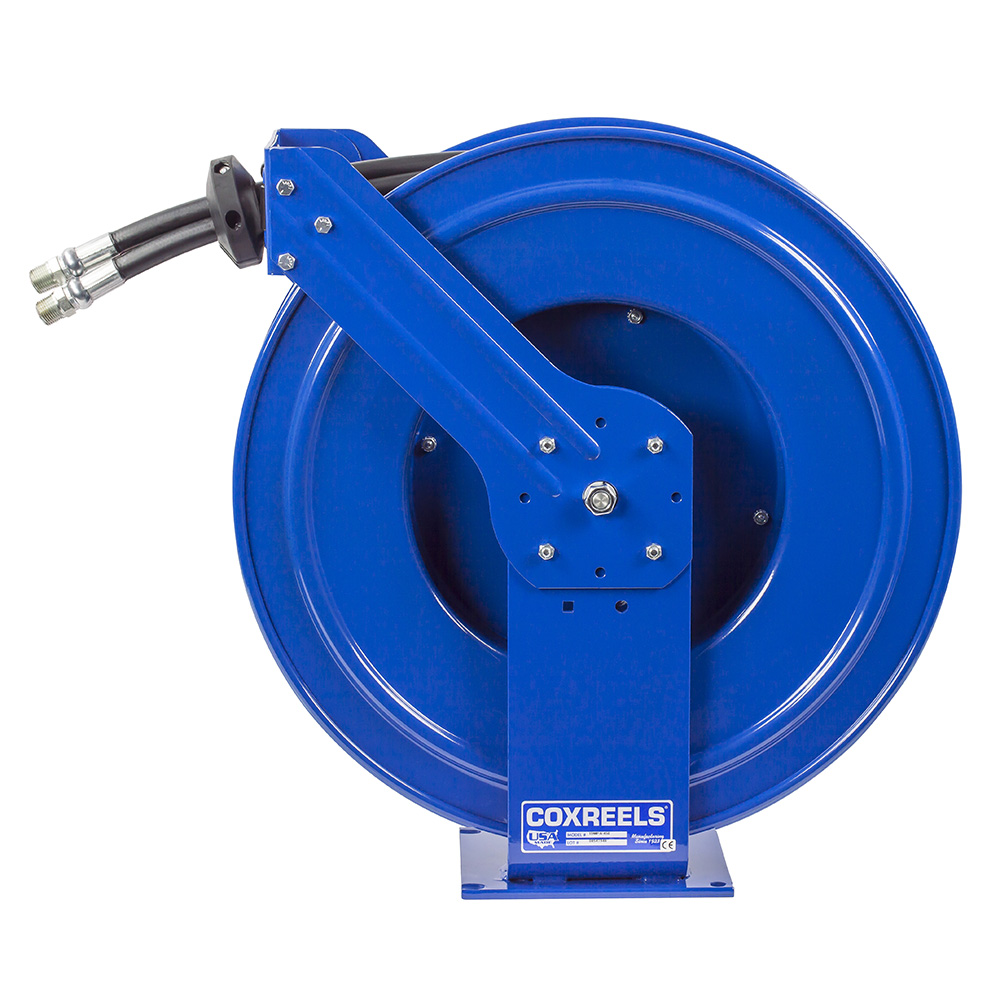

Coxreel TDMP-N-450 | TDMP Series - Spring Driven Specialty Reels

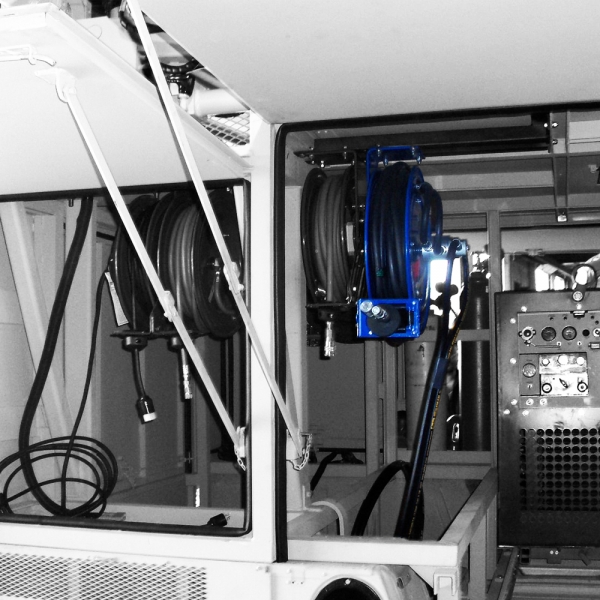

COXREELS MPD, TDMP and 1275HP Series "Dual Hydraulic" hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. Choose between spring driven retraction at 3,000 PSI to 50 feet and hand crank or motorized models at 10,000 PSI to 200 feet.

Coxreel - TDMP-N-450 - Swivel

• External fluid path with dual port melanized 90° full-flow NPT swivel inlet
• Swivel Seals: TEFLON

Coxreel - TDMP-N-450 - Design & Structure

• Sturdy dual pedestal design with Coxreels’ exclusive Super Hub dual axle support system
• One-sided supply/return hookup

Coxreel - TDMP-N-450 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor.
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
• Multi-position lock ratchet mechanism secures hose at desired length.

Coxreel - TDMP-N-450 - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - External fluid path with dual port melanized 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub triple axle support
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, one-side supply/return hookup, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Coxreel - TDMP-N-450 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• TDMP Series

Coxreel - TDMP-N-450 - Dimension Drawing

Click image to enlarge.

Coxreel - TDMP-N-450 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	TDMP-N-450
Item Description	TDMP Series - Spring Driven Specialty Reels

Coxreel - TDMP-N-450 - Dimensions

I.D	1/2"
O.D	13/16"
Length	50'
Hose	Yes
Max PSI	2500
Ship Weight (lbs)	106
Overall Dimensions (W) (H) (L)	11.63"(W) 25.5"(H) 24"(L)
Mounting Pattern (M) (N)	7"(M) 8"(N)
Base (X) (Y)	8"(X) 9"(Y)
