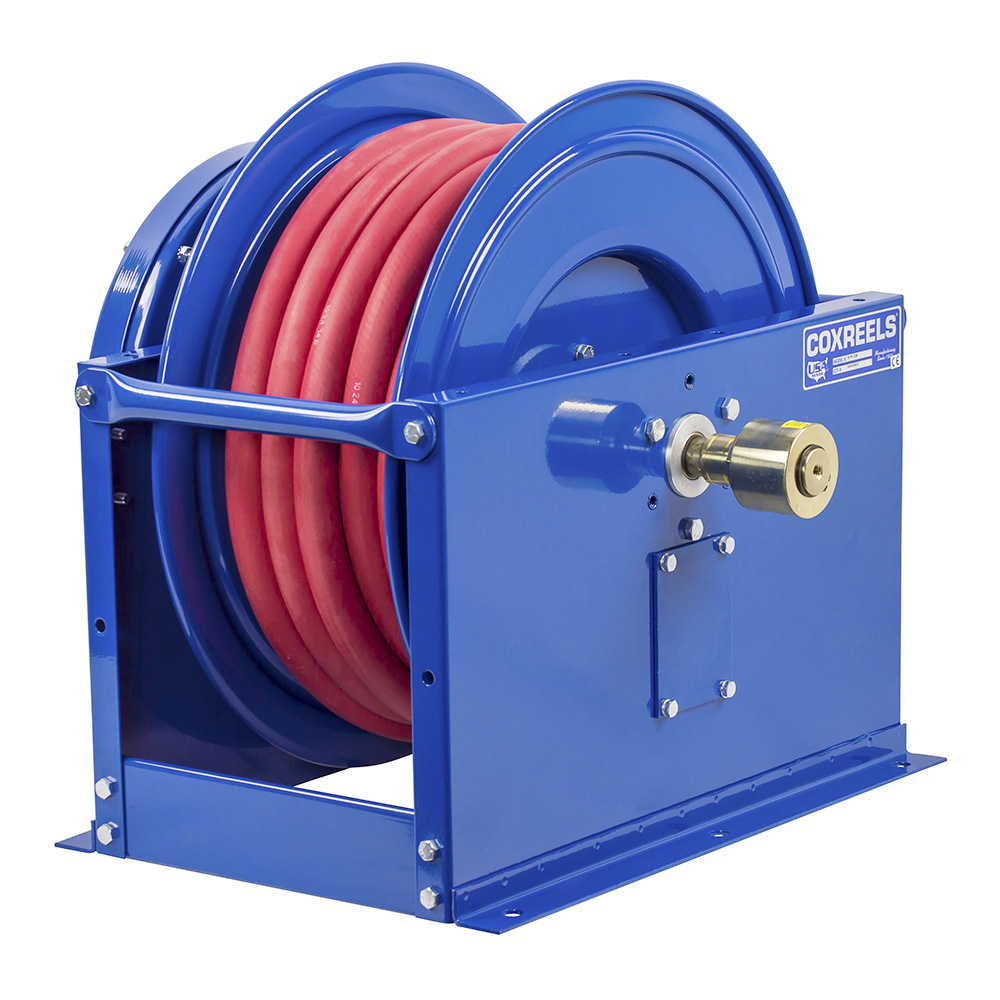

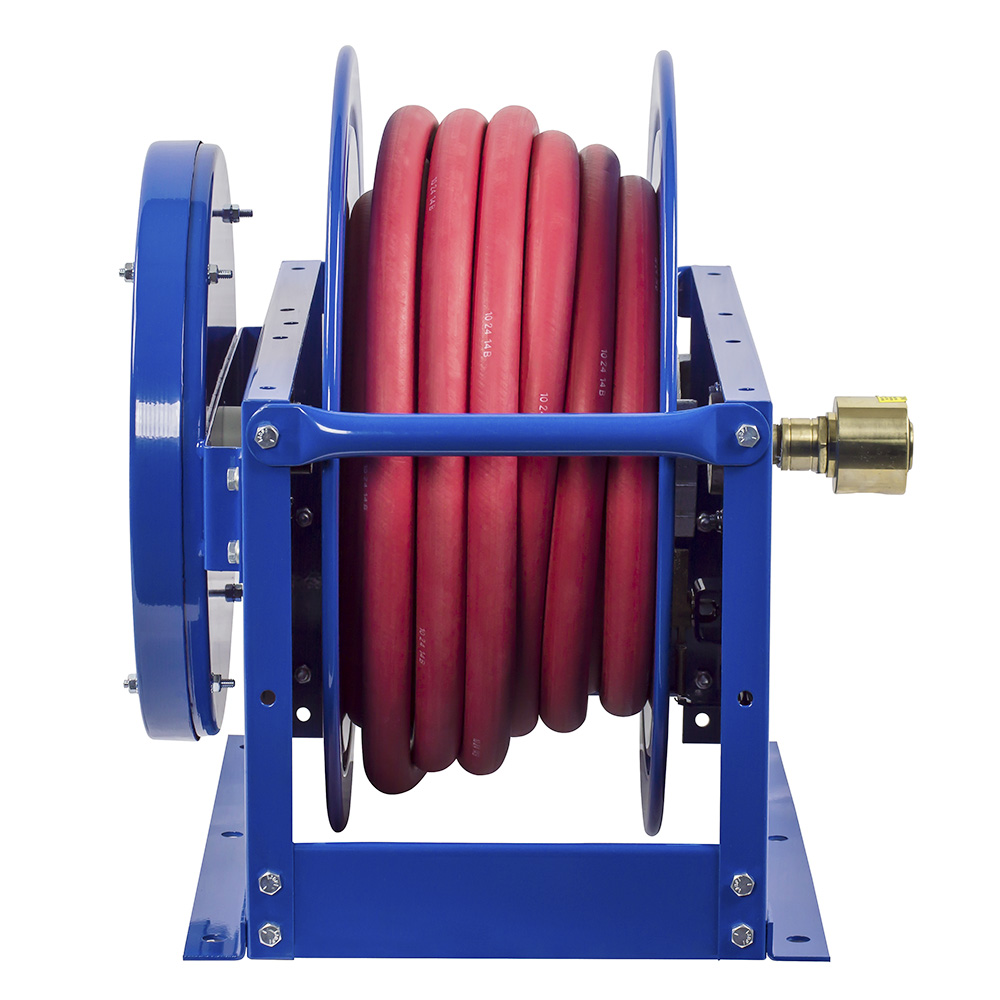

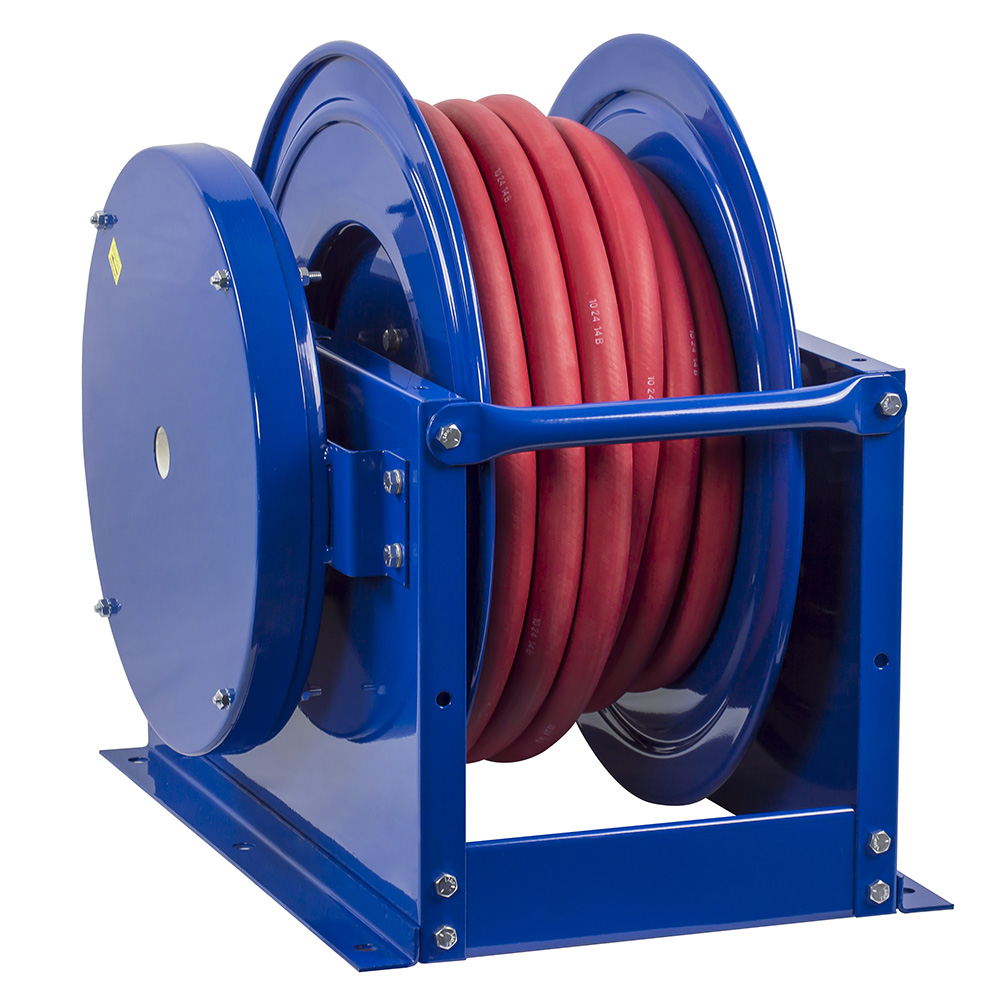

Coxreel SLPF-575 | SP-Fuel Series - Spring Driven Specialty Reels

COXREELS Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels professional fuel dispensing reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

Coxreel - SLPF-575 - Swivel

• Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications
• Swivel seals: Nitrile

Coxreel - SLPF-575 - Design & Structure

• Reel features a sturdy box-style frame designn
• Reel adjusts to wall, floor, vehicle & overhead positions
• Heavy gauge 1/4" steel base for maximum strength
• Reinforced steel frame provides maximumnstrength & stability
• Long lasting self-lubricated flange bearings for smooth rotation
• Heavy duty 1" stainless steel pinch-proof rollers

Coxreel - SLPF-575 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel pawl spring
• Cast iron lock ring with non-sparking bronze pawl
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - SLPF-575 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• SWIVEL - Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• BOX-STYLE DESIGN - Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
• STEEL ROLLERS - Heavy duty 1" stainless steel pinch-proof rollers.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Coxreel - SLPF-575 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• SP-Fuel Series

Coxreel - SLPF-575 - Dimension Drawing

Click image to enlarge.

Coxreel - SLPF-575 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	SLPF-575
Item Description	SP-Fuel Series - Spring Driven Specialty Reels

Coxreel - SLPF-575 - Dimensions

I.D	3/4"
O.D	1 3/16"
Length	75'
Hose	Yes
Max PSI	300
Ship Weight (lbs)	107
Overall Dimensions (W) (H) (L)	19.63"(W) 20.5"(H) 22.88"(L)
Mounting Pattern (M) (N)	14"(M) 22"(N)
Base (X) (Y)	15.38"(X) 25"(Y)

Coxreel - SLPF-575 - Videos

Cartridge Style Motor	Click to View
CPC Powder Coat	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Steel Construction	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
