Coxreel SL19WTL-175 | SW Series - Spring Driven Specialty Reels

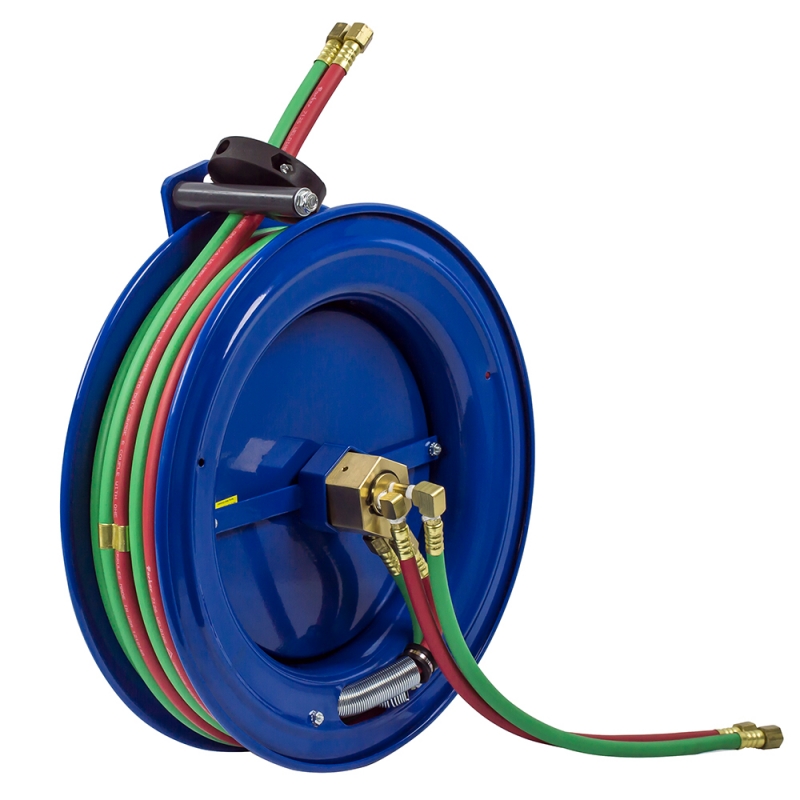

COXREELS SW Series " Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. SW Series is available for oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.

Coxreel - SL19WTL-175 - Swivel

• External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
• Swivel Seals: VITON

Coxreel - SL19WTL-175 - Design & Structure

• Side mount design for vertical flat surface, cabinet or enclosed space mounts
• 2-bolt mounting pattern easily mounts & detaches for ntemporary or permanent installation
• Solid one piece, heavy gauge steel arm base for nmaximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation
• Hose control bar prevents hose from slipping off the discs

Coxreel - SL19WTL-175 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - SL19WTL-175 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

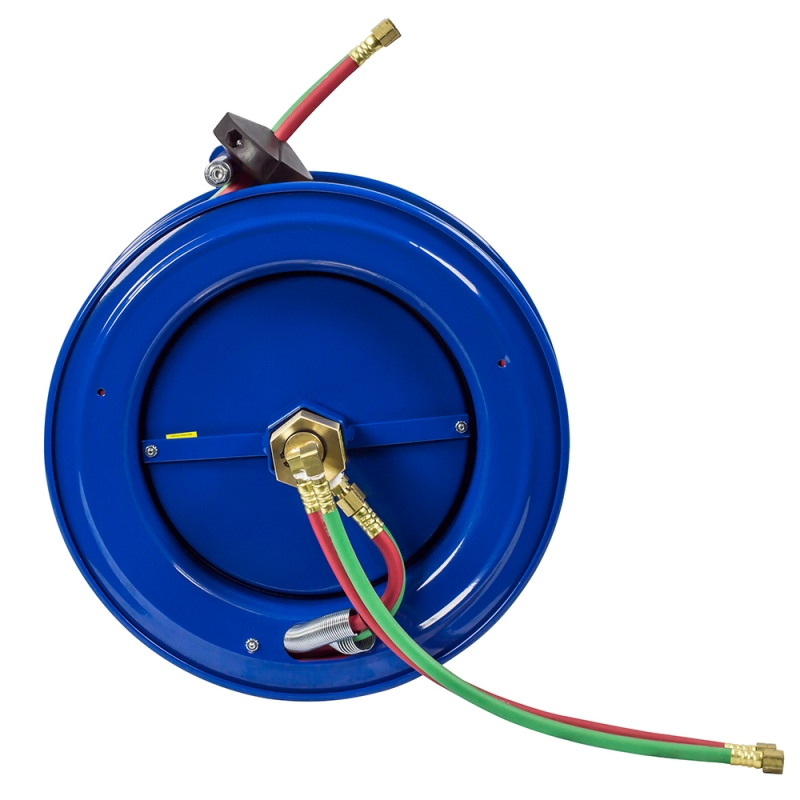

• WELDING GAS SWIVEL - External 90º full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

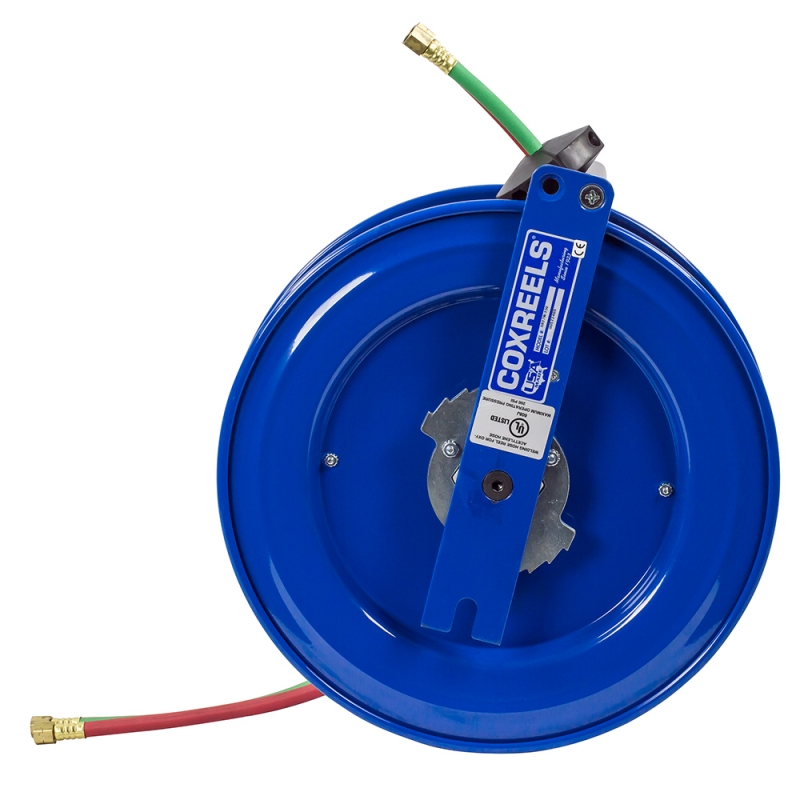

• SIDE MOUNT DESIGN - Mount left for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
• CONTROL BAR - Hose control bar prevents hose from slipping off the disc.
• OTHER FEATURES INCLUDE - Long lasting, chip resistant and rust inhibiting CPC powder coat finish, oxygen-acetylene or "T" grade welding hose, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Coxreel - SL19WTL-175 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• SW Series

Coxreel - SL19WTL-175 - Dimension Drawing

Click image to enlarge.

Coxreel - SL19WTL-175 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	SL19WTL-175
Item Description	SW Series - Spring Driven Specialty Reels

Coxreel - SL19WTL-175 - Dimensions

I.D	1/4"
Length	75'
Hose	No
Max PSI	200
Ship Weight (lbs)	36
Overall Dimensions (W) (H) (L)	9.5"(W) 20.88"(H) 19.5"(L)
Mounting Pattern (M) (N)	14.25"(M) -"(N)
Base (X) (Y)	-"(X) 2.5"(Y)

Coxreel - SL19WTL-175 - Videos

Cartridge Style Motor	Click to View
CPC Powder Coat	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Steel Construction	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
