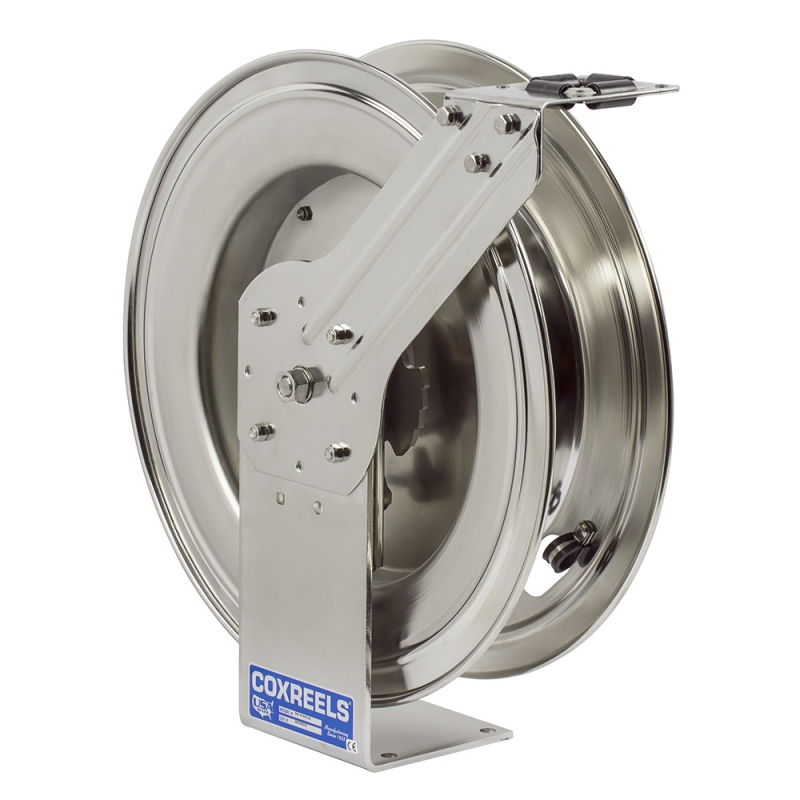

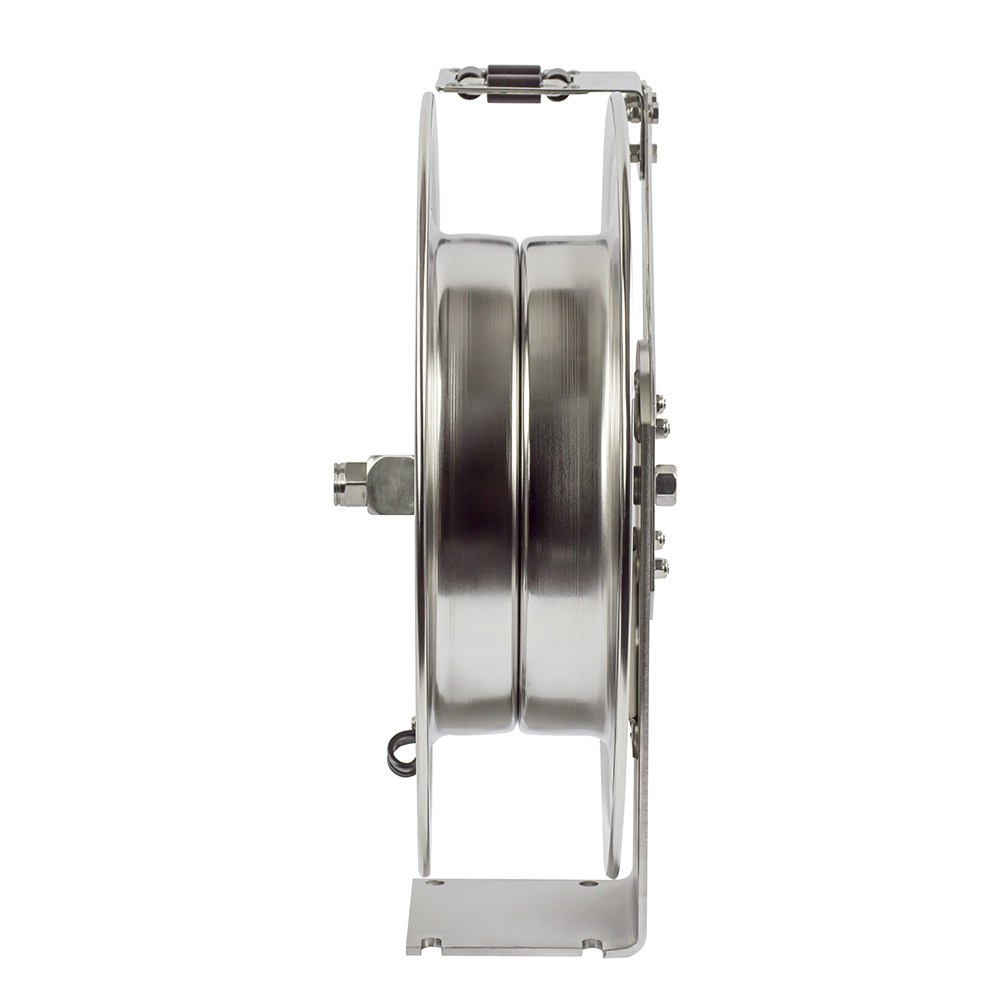

Coxreel SHL-N-525-SS | SH-SS Series - Spring Driven Specialty Reels

COXREELS SS Series "Stainless Steel" spring driven hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

Coxreel - SHL-N-525-SS - Swivel

• Non-corrosive external fluid path with machined from high quality stainless steel 90º full-flow NPT swivel inlet.
• Swivel Seals: NITRILE Non-Toxic Food Grade Grease.

Coxreel - SHL-N-525-SS - Design & Structure

• Guide arm adjusts to wall, floor, vehicle & overhead positions.
• Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability.
• 1" solid steel axle & lubricated precision bearings for smooth rotation.

Coxreel - SHL-N-525-SS - Retract

• Enclosed factory tuned & matched cartridge-style spring motor.
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
• Multi-position lock ratchet mechanism secures hose at desired length.

Coxreel - SHL-N-525-SS - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.

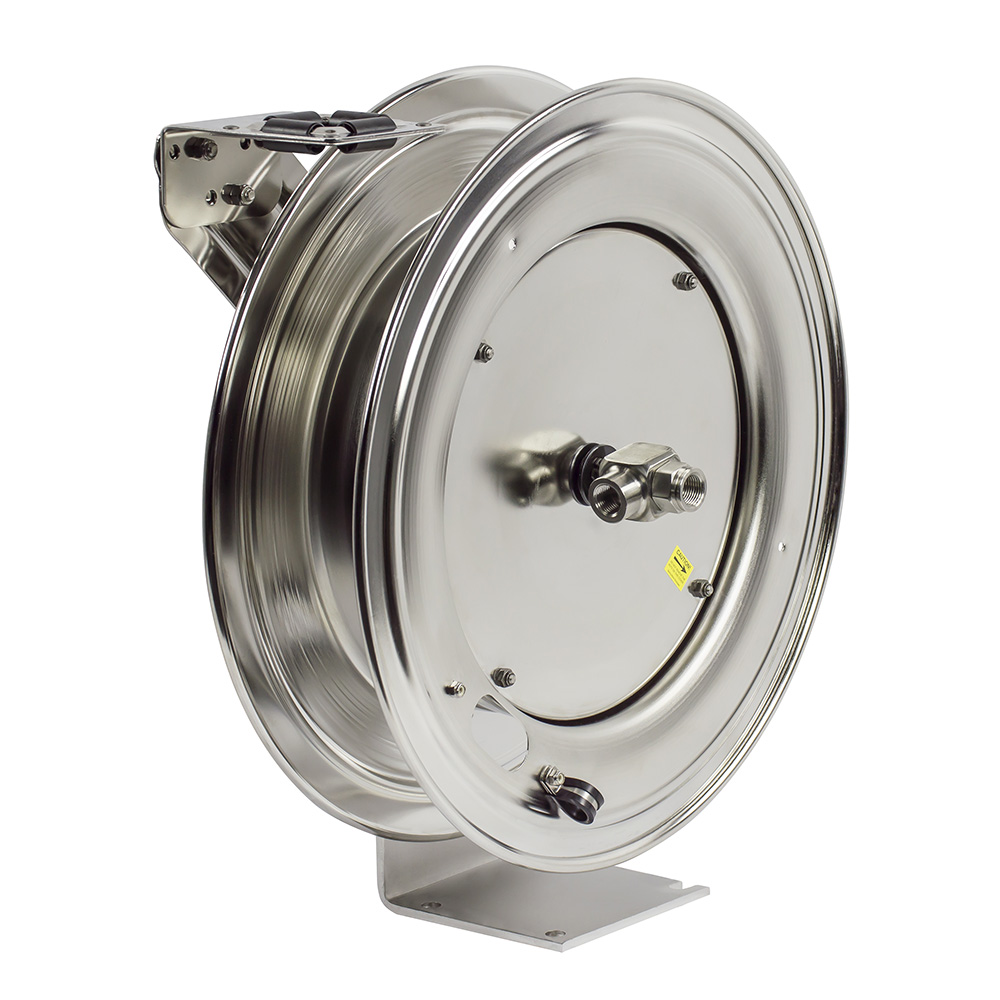

• SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90? full-flow NPT swivel inlet.
• CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability and professional grade strenght without the weight. Exclusive Super Hub dual axle support system.
• MULTI-POSITION GUIDE ARM - Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - Sturdy permanently lubricated precision bearings.

Coxreel - SHL-N-525-SS - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• SH-SS Series

Coxreel - SHL-N-525-SS - Dimension Drawing

Click image to enlarge.

Coxreel - SHL-N-525-SS - Specifications

Brand Name	Coxreel
Manufacturer Part Number	SHL-N-525-SS
Item Description	SH-SS Series - Spring Driven Specialty Reels

Coxreel - SHL-N-525-SS - Dimensions

I.D	3/4"
O.D	1-1/16"
Length	25'
Hose	No
Max PSI	300
Ship Weight (lbs)	45
Overall Dimensions (W) (H) (L)	9.38"(W) 25.5"(H) 19.5"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)

Coxreel - SHL-N-525-SS - Videos

Cartridge Style Motor	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
