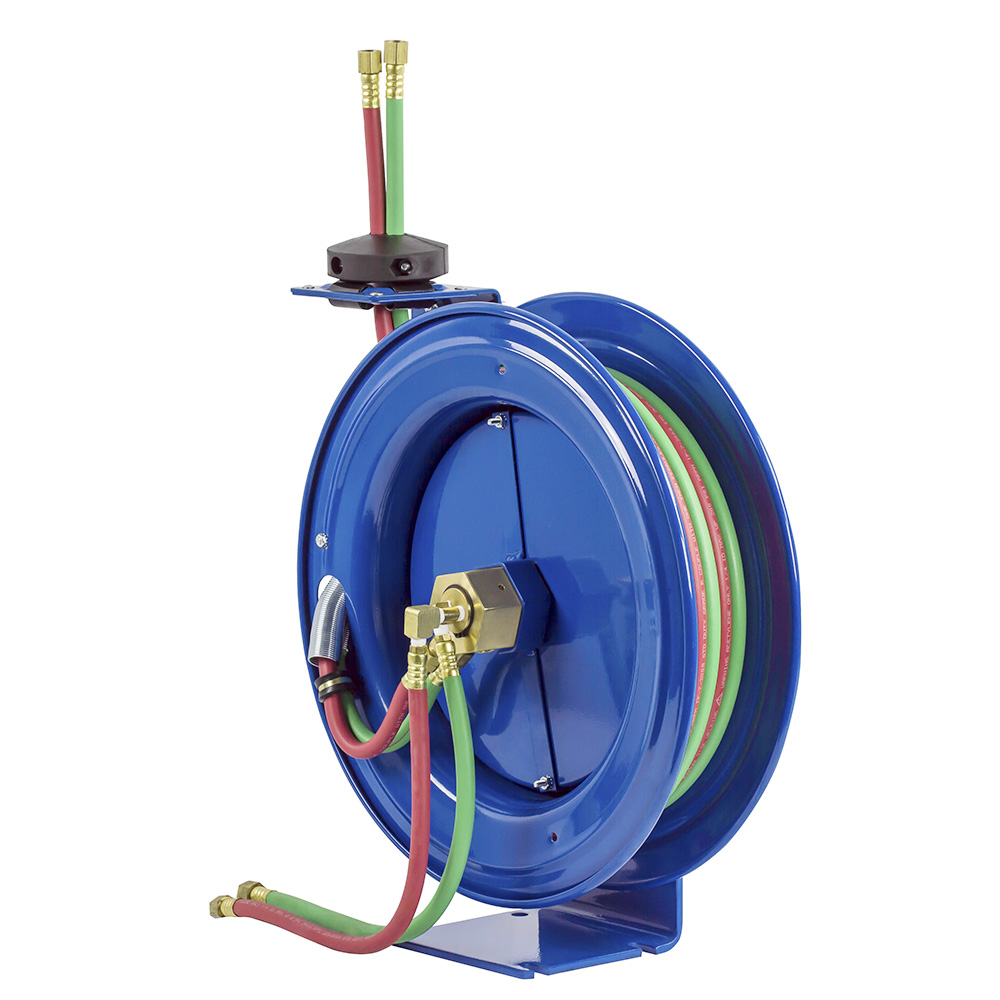

Coxreel P-W-125 | P-W Series - Spring Driven Specialty Reels

COXREELS P-W Series spring driven "Welding" hose reels are the ideal solution for managing bulky twin line welding hose. The P-W Series, like the P Series, is more compact in size and shares the reputation for long lasting performance.

Coxreel - P-W-125 - Swivel

• External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
• Swivel seals: VITON

Coxreel - P-W-125 - Design & Structure

• Single pedestal reel with space saving design facilitates workplace organization
• Guide arm adjusts to wall, floor & overhead positions
• Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation

Coxreel - P-W-125 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - P-W-125 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

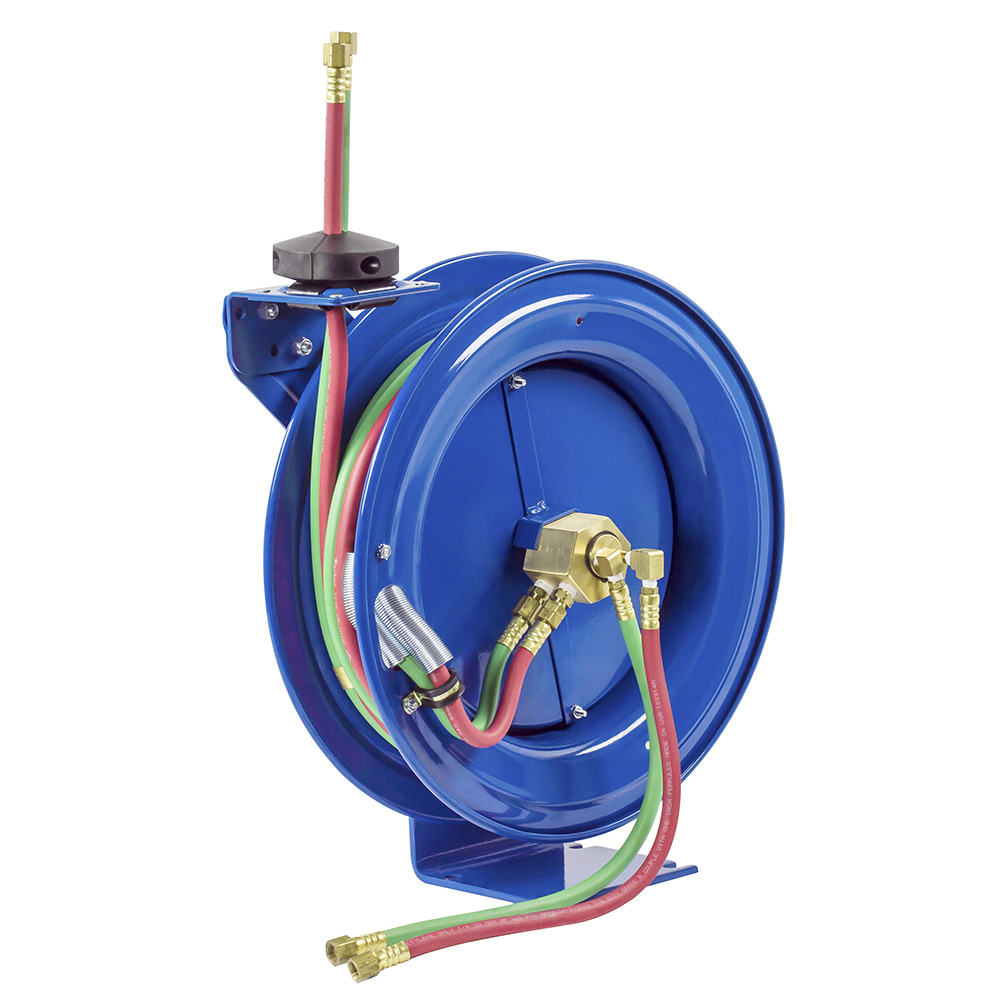

• WELDING GAS SWIVEL - External 90? full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

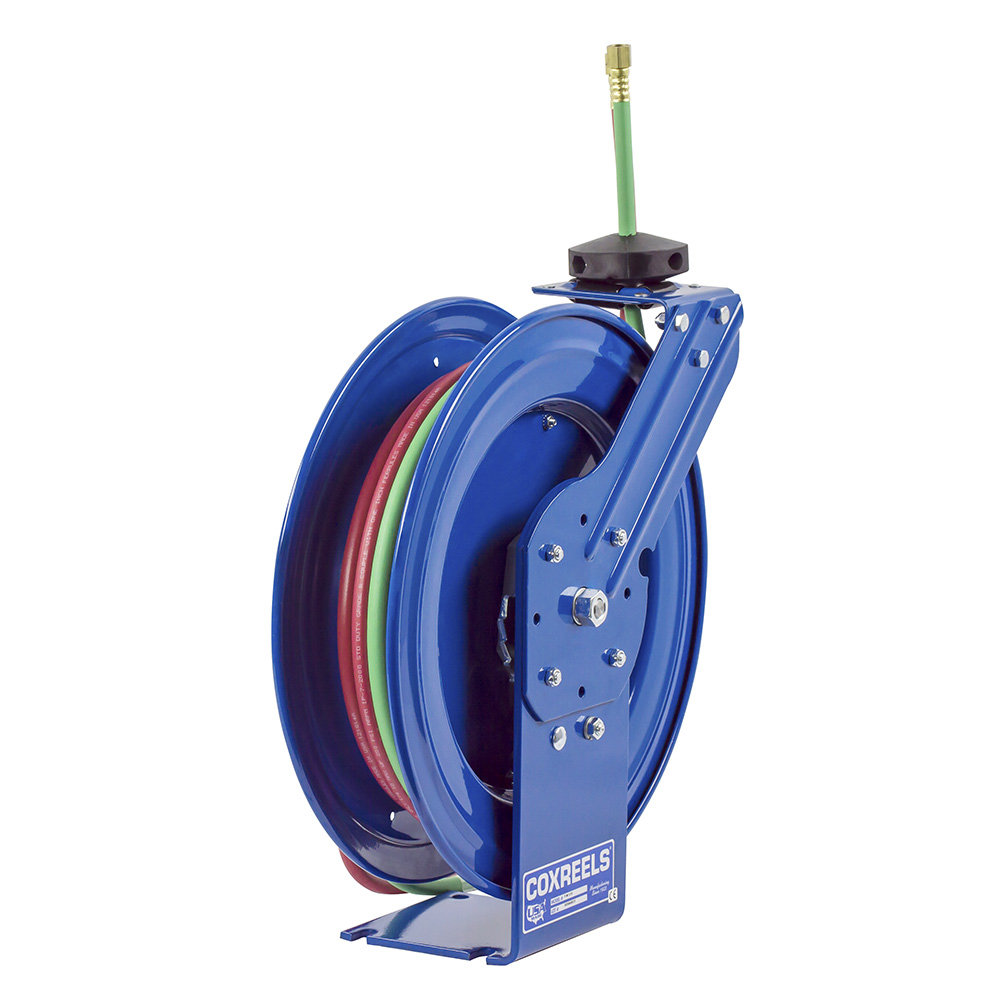

• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxy-acetylene or "T" grade welding hose, and sturdy permanently lubricated precision bearings.

Coxreel - P-W-125 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• P-W Series

Coxreel - P-W-125 - Dimension Drawing

Click image to enlarge.

Coxreel - P-W-125 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	P-W-125
Item Description	P-W Series - Spring Driven Specialty Reels

Coxreel - P-W-125 - Dimensions

I.D	1/4"
Length	25'
Hose	Yes
Max PSI	200
Ship Weight (lbs)	46
Overall Dimensions (W) (H) (L)	8.5"(W) 18.63"(H) 17"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)

Coxreel - P-W-125 - Videos

Cartridge Style Motor	Click to View
CPC Powder Coat	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Steel Construction	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
