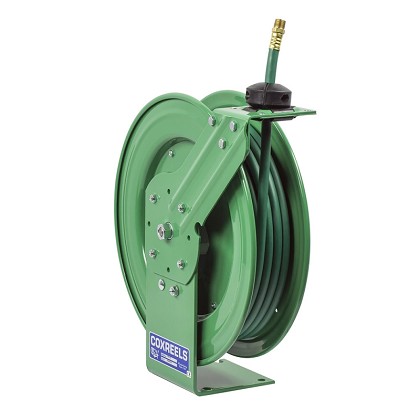

Coxreel P-NPL-350 | Nitro-Pro Series - Spring Driven Specialty Reels

COXREELS Nitro-Pro Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. This reel is specifically designed to reduce workplace accidents and increase operator safety.

Coxreel - P-NPL-350 - Swivel

• Nitrogen quality seals in the machined from solid brass 90°full-flow NPT swivel.
• Swivel Seals: Nitrile

Coxreel - P-NPL-350 - Design & Structure

• Designed for nitrogen tire inflation system.
• Guide arm adjusts to wall, floor, vehicle & overhead positions.
• Green nitrogen hose & hose stop to adjust lead length.

Coxreel - P-NPL-350 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor.
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
• Multi-position lock ratchet mechanism secures hose at desired length.

Coxreel - P-NPL-350 - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide .
• SWIVEL - Nitrogen quality seals in the machined solid from brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting special "Nitrogen green" proprietary CPC powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.

Coxreel - P-NPL-350 - Product Categories

• Spring Driven Reels
• Spring Driven Specialty Reels
• Nitro-Pro Series

Coxreel - P-NPL-350 - Dimension Drawing

Click image to enlarge.

Coxreel - P-NPL-350 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	P-NPL-350
Item Description	Nitro-Pro Series - Spring Driven Specialty Reels

Coxreel - P-NPL-350 - Dimensions

I.D	3/8"
O.D	5/8"
Length	50'
Max PSI	300
Hose	No
Ship Weight (lbs)	36
Overall Dimensions (W) (H) (L)	6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)

Coxreel - P-NPL-350 - Videos

Cartridge Style Motor	Click to View
CPC Powder Coat	Click to View
External Fluid Path	Click to View
Spring Driven Overview	Click to View
Steel Construction	Click to View
Add or Remove Wraps	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Proper Reel Mounting	Click to View
Spring Can Replacement	Click to View
Swivel Seal Replacement	Click to View
