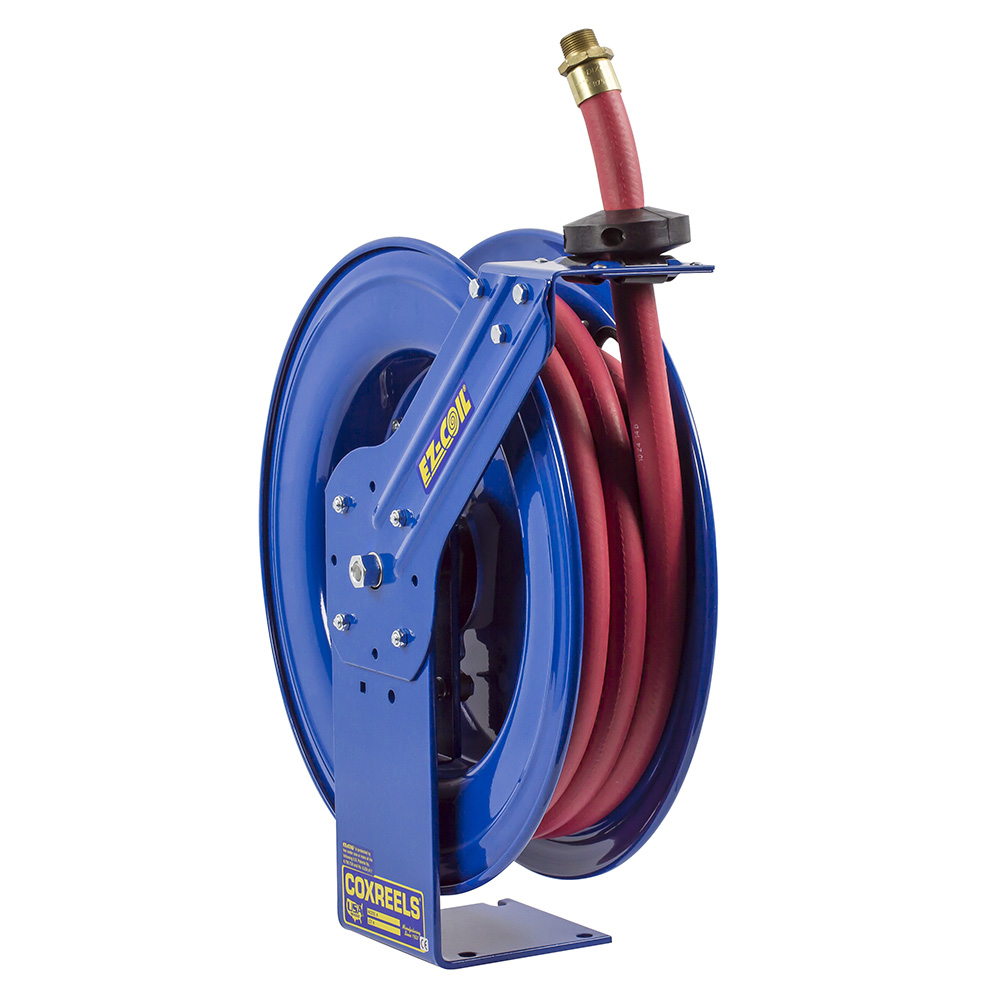

Coxreel EZ-SHF-525 | EZ-SH-Fuel Series - EZ Coil Specialty Reels

COXREELS Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels professional fuel dispensing heavy-duty single pedestal reel is an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

Coxreel - EZ-SHF-525 - Swivel

• Machined from solid brass 90° full-flow NPT swivel inlet for fuel dispensing applications.
• Swivel seals: Nitrile

Coxreel - EZ-SHF-525 - Design & Structure

• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Solid one piece, heavy gauge 1?4" steel base & support post for maximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation

Coxreel - EZ-SHF-525 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - EZ-SHF-525 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• SWIVEL - Machined from solid brass 90? full-flow NPT swivel for fuel dispensing applications.
• EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub dual axle support system.
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop,fuel dispensing hose, and sturdy permanently lubricated precision bearings.

Coxreel - EZ-SHF-525 - Product Categories

• EZ Coil Reels
• EZ Coil Specialty Reels
• EZ-SH-Fuel Series

Coxreel - EZ-SHF-525 - Dimension Drawing

Click image to enlarge.

Coxreel - EZ-SHF-525 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	EZ-SHF-525
Item Description	EZ-SH-Fuel Series - EZ Coil Specialty Reels

Coxreel - EZ-SHF-525 - Dimensions

I.D	3/4"
O.D	1 3/16"
Length	25'
Hose	Yes
Max PSI	300
Ship Weight (lbs)	57
Overall Dimensions (W) (H) (L)	9.38"(W) 25.5"(H) 19.5"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)
