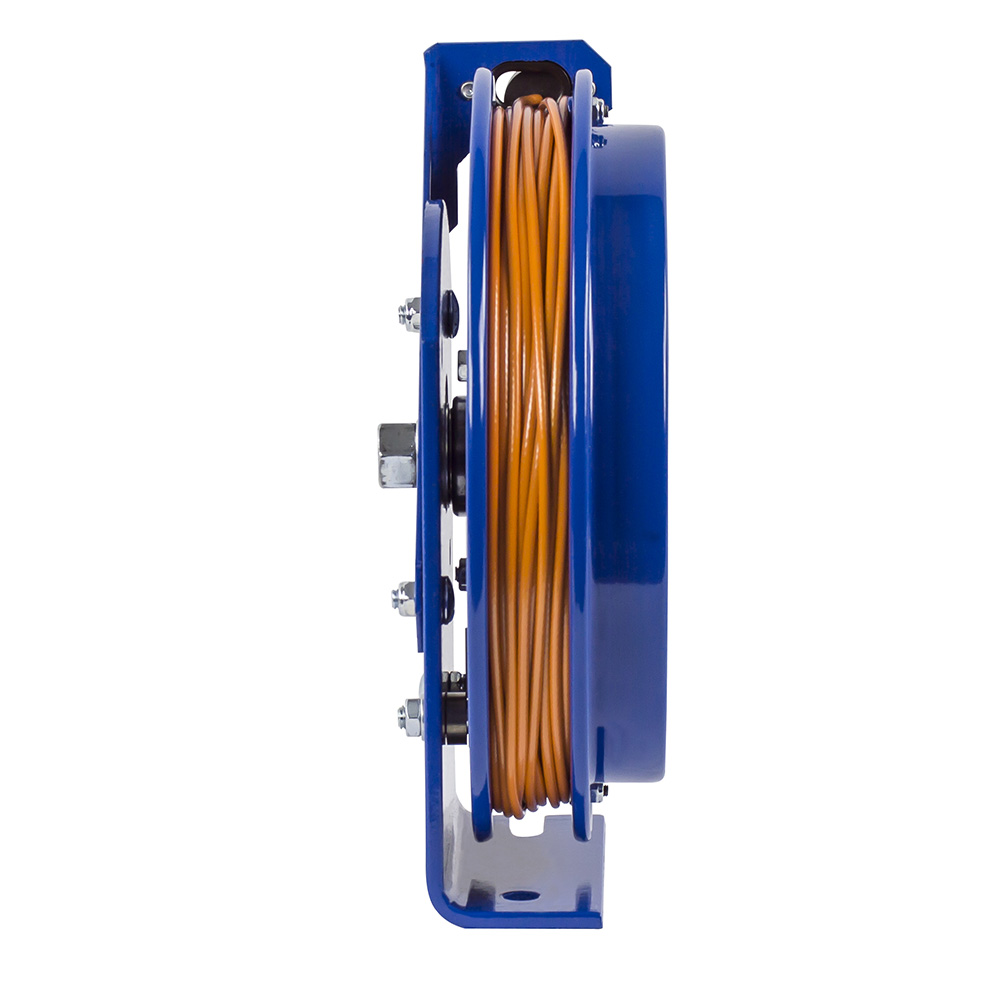

Coxreel EZ-SDL-100 | EZ-SD Series - EZ Coil Cable Reels

COXREELS EZ-SD Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.

Coxreel - EZ-SDL-100 - Swivel

• Available with 7 strand x 7 wire galvanized steel or stainless steel cablen
• High visibility orange vinyl cable covern
• Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)

Coxreel - EZ-SDL-100 - Design & Structure

• Compact static discharge cable reel available in spring rewind or direct hand crank retraction
• Commonly paired with fuel reels & used in combustible environment for grounding purposes
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Bottom of base is un-powder coated to ground reel

Coxreel - EZ-SDL-100 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position non-sparking lock ratchet mechanism secures cable at desired length

Coxreel - EZ-SDL-100 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• STEEL CABLE - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.

Coxreel - EZ-SDL-100 - Product Categories

• EZ Coil Reels
• EZ Coil Cable Reels
• EZ-SD Series

Coxreel - EZ-SDL-100 - Dimension Drawing

Click image to enlarge.

Coxreel - EZ-SDL-100 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	EZ-SDL-100
Item Description	EZ-SD Series - EZ Coil Cable Reels

Coxreel - EZ-SDL-100 - Dimensions

Hose	No
Length	100'
Ship Weight (lbs)	28
Gauge	5/32"
Overall Dimensions (W) (H) (L)	4"(W) 15"(H) 14.5"(L)
Mounting Pattern (M) (N)	4"(M) -"(N)
Base (X) (Y)	2.5"(X) 6"(Y)

Coxreel - EZ-SDL-100 - Documents and Downloads

Coxreel EZ-SDL-100 Product Manual

Click to View
