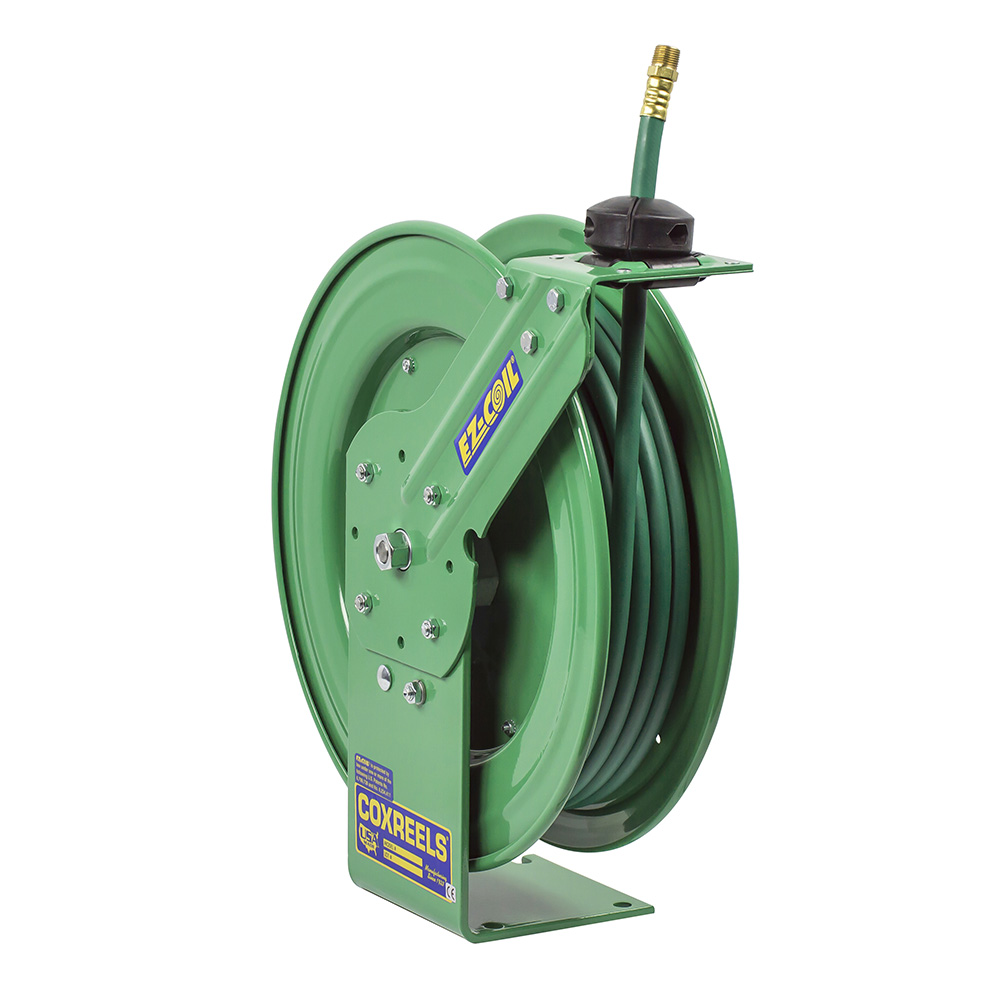

Coxreel EZ-P-NPL-350 | EZ-Nitro-Pro Series - EZ Coil Specialty Reels

COXREELS Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. The EZ-Coil model features Coxreels patented rewind safety system that retracts up to 80% slower than conventional spring driven reels. This reel is specifically designed to reduce workplace accidents and increase operator safety.

Coxreel - EZ-P-NPL-350 - Swivel

• Nitrogen quality seals in the machined from solid brass 90°full-flow NPT swivel.
• Swivel Seals: Nitrile

Coxreel - EZ-P-NPL-350 - Design & Structure

• Designed for nitrogen tire inflation systems.
• Guide arm adjusts to wall, floor, vehicle & overhead positions.
• Green nitrogen hose & hose stop to adjust lead length.

Coxreel - EZ-P-NPL-350 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor.
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
• Multi-position lock ratchet mechanism secures hose at desired length.

Coxreel - EZ-P-NPL-350 - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - Nitrogen quality seals in the machined solid from brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting special "Nitrogen green" porpietary CPC powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.

Coxreel - EZ-P-NPL-350 - Product Categories

• EZ Coil Reels
• EZ Coil Specialty Reels
• EZ-Nitro-Pro ^<

Coxreel - EZ-P-NPL-350 - Dimension Drawing

Click image to enlarge.

Coxreel - EZ-P-NPL-350 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	EZ-P-NPL-350
Item Description	EZ-Nitro-Pro Series - EZ Coil Specialty Reels

Coxreel - EZ-P-NPL-350 - Dimensions

I.D	3/8"
O.D	5/8"
Length	50'
Hose	No
Max PSI	300
Ship Weight (lbs)	36
Overall Dimensions (W) (H) (L)	6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)
